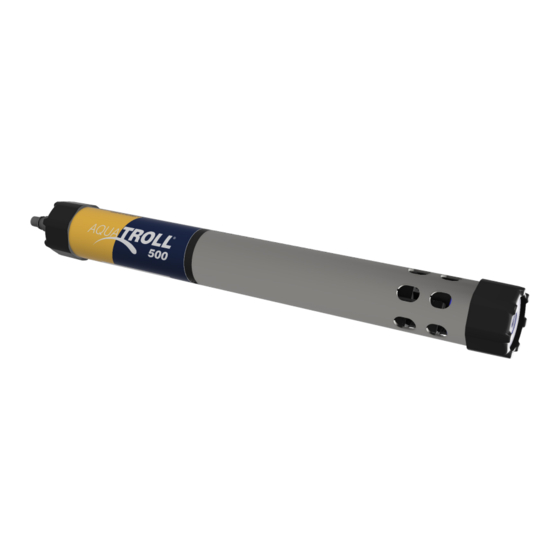

In-situ Aqua TROLL 500 Instruction Sheet
Bga-pc sensor
Hide thumbs
Also See for Aqua TROLL 500:
- Operator's manual (80 pages) ,
- Quick start manual (3 pages) ,
- Overview (3 pages)
Advertisement
Install sensor.
1
Rinse sensor with clean
water before use.
Install sensor. Do not
twist.
Calibrate and deploy.
2
!
For detailed calibration instructions, see the instruction manual or quick start guide for your In-
Situ instrument.
Connect to the
instrument with VuSitu
or Win-Situ software.
Page 1
Aqua TROLL 500/600 BGA-PC Sensor Overview
The In-Situ blue-green algae/phycocyanin sensor measures BGA-PC levels in
natural water, surface water, groundwater, produced water and aquaculture
applications.
Getting Started
Remove restrictor from
the instrument.
Place restrictor in
calibration mode.
Select Calibrations from
the menu.
970-498-1500
Instruction Sheet
Remove sensor port plug
if installed. Do not twist.
Choose the BGA-PC
option and follow the
instructions.
www.in-situ.com
Lubricate o-ring at
bottom of sensor.
Flip the restrictor into
deployment mode after
calibration
2019-01-9 | 0038922
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for In-situ Aqua TROLL 500
Summary of Contents for In-situ Aqua TROLL 500
-
Page 1: Getting Started
Instruction Sheet Aqua TROLL 500/600 BGA-PC Sensor Overview The In-Situ blue-green algae/phycocyanin sensor measures BGA-PC levels in natural water, surface water, groundwater, produced water and aquaculture applications. Getting Started Install sensor. Rinse sensor with clean Remove restrictor from Remove sensor port plug Lubricate o-ring at water before use. - Page 2 Expected RFU Value at 25° C Concentration 25° C 0 µg/L (deionized none water) 100 µg/L 1.0 mL 80 µg/L (ppb) 200 µg/L 2.0 mL 159 µg/L (ppb) 400 µg/L 4.0 mL 309 µg/L (ppb) Page 2 970-498-1500 www.in-situ.com 2019-01-9 | 0038922...
