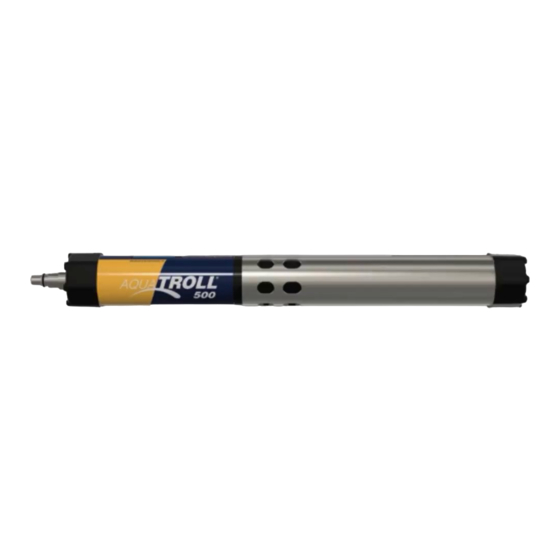

In-situ Aqua TROLL 500 Quick Start Manual

1
2
3
Your Aqua TROLL 500 ships with all sensors installed except for pH. If your instrument does not
include a pH/ORP sensor, all four sensors will be installed by the factory.
Installing the RDO Cap and pH/ORP Sensor...
1
Remove the restrictor
from the instrument.
Pull the plastic cap off of
the RDO sensor.
Information subject to change without notice. In-Situ, In-Situ logo, Baro Merge, BaroTROLL, HERMIT, HydroVu™, iSitu, Pocket-Situ, RDO, RuggedCable, RuggedReader, SmarTROLL™, TROLL,
VuSitu, and Win-Situ are trademarks or registered trademarks of In-Situ Inc.
4
6 7
5
Getting Started
Use included Allen
wrench to loosen set
screw on RDO sensor.
Install the RDO cap on
the sensor.
2016. All rights reserved. This product may be covered by patents identified at www.in-situ.com/patents
©
Aqua TROLL 500 Quickstart Guide

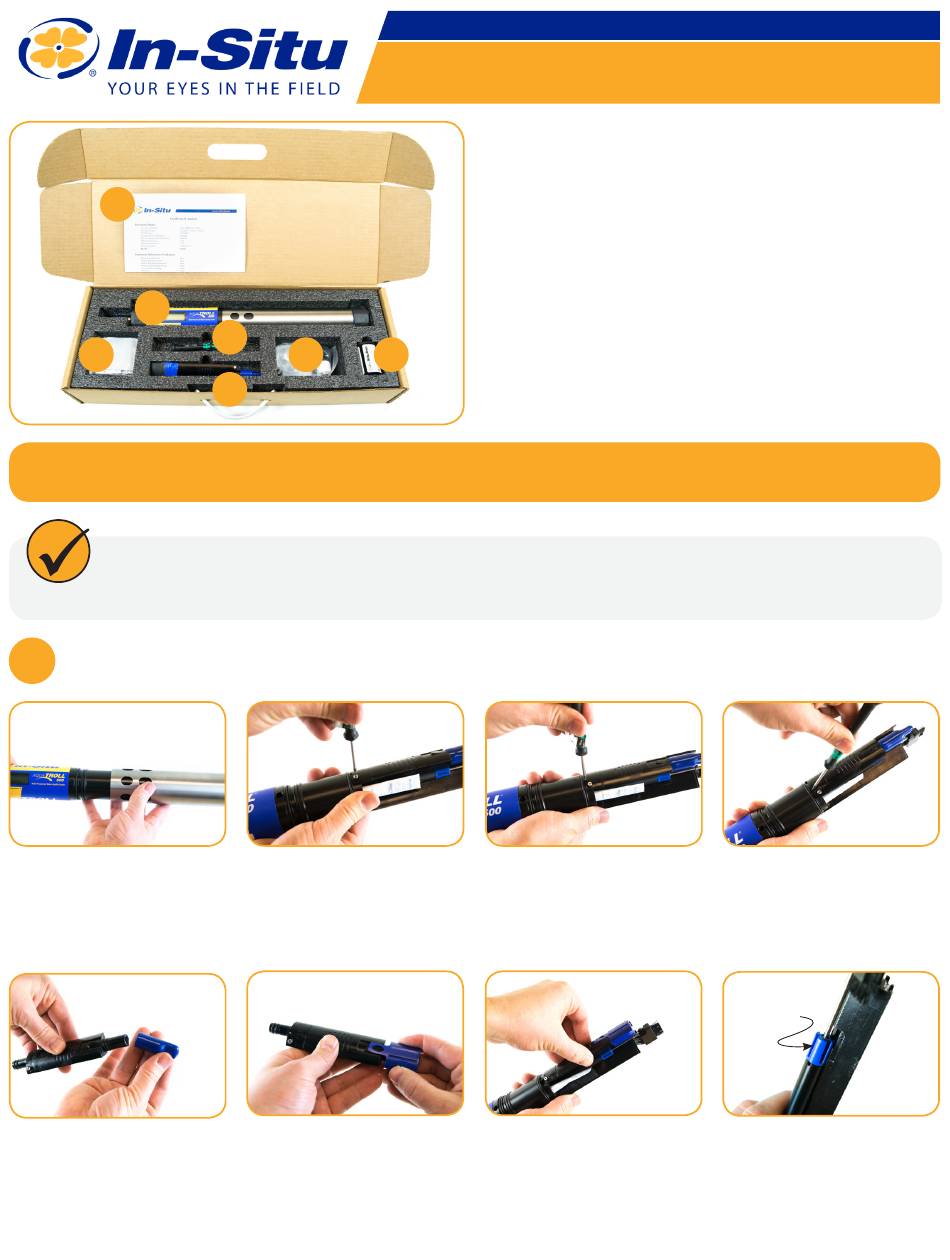

1. Documentation
2. Aqua TROLL 500 sonde
3. Maintenance kit
4. Instrument tools
5. Sensor
6. pH/ORP or ISE sensor maintenance supplies
7. RDO cap
Place Allen wrench in the
small hole at the bottom
of the sensor.
Insert RDO sensor in
instrument sensor port.
Box Contents
Lever the Allen wrench
towards the top of the
sonde to slide the sensor
out.
Interlock
grooves
Sensor tongue must
slide into blue motor
interlock groove.
