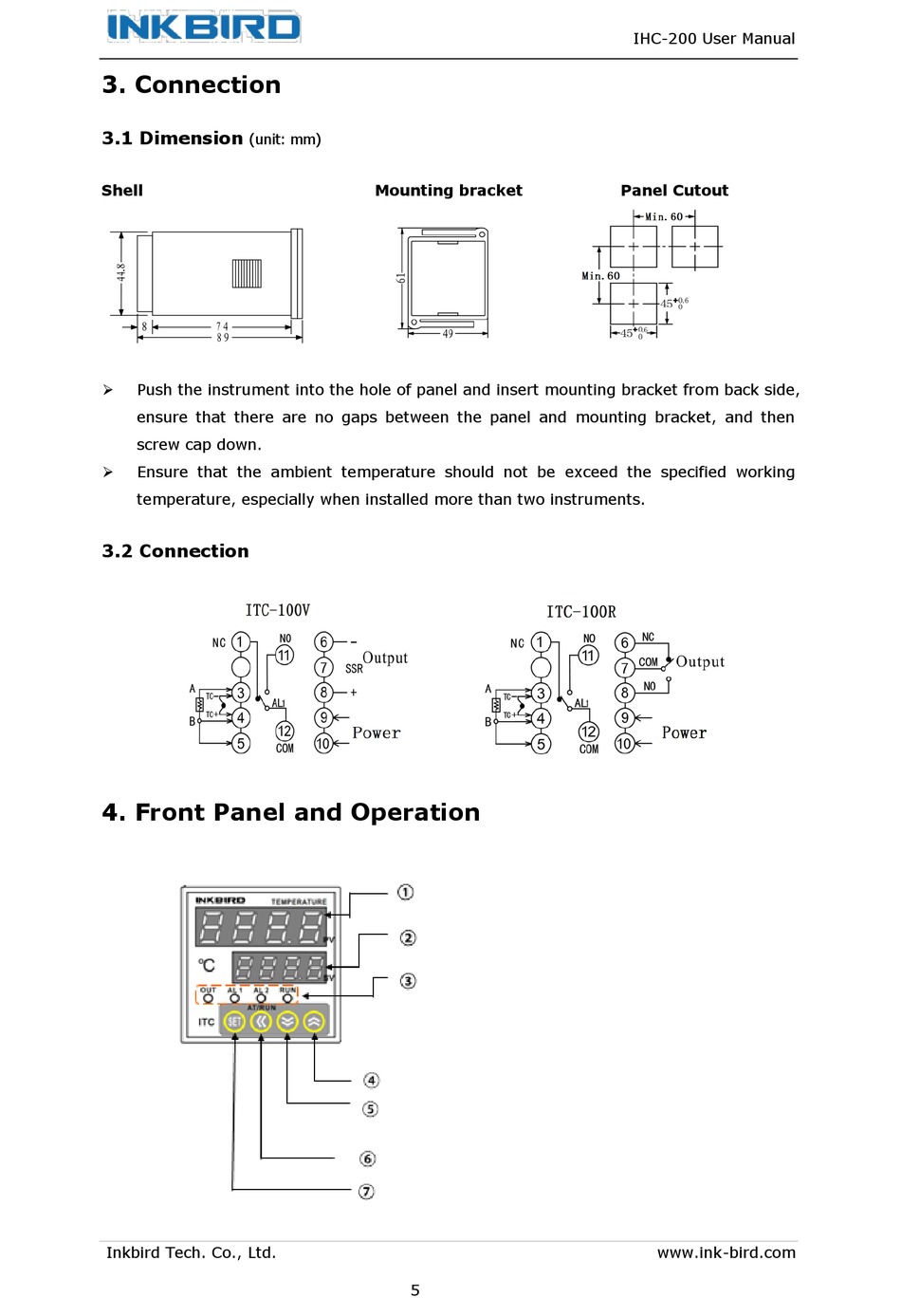

3. Connection

3.1 Dimension

(unit: mm)
Shell
Push the instrument into the hole of panel and insert mounting bracket from back side,

ensure that there are no gaps between the panel and mounting bracket, and then
screw cap down.
Ensure that the ambient temperature should not be exceed the specified working

temperature, especially when installed more than two instruments.
3.2 Connection

4. Front Panel and Operation

Inkbird Tech. Co., Ltd.
Mounting bracket
5
IHC-200 User Manual
Panel Cutout
