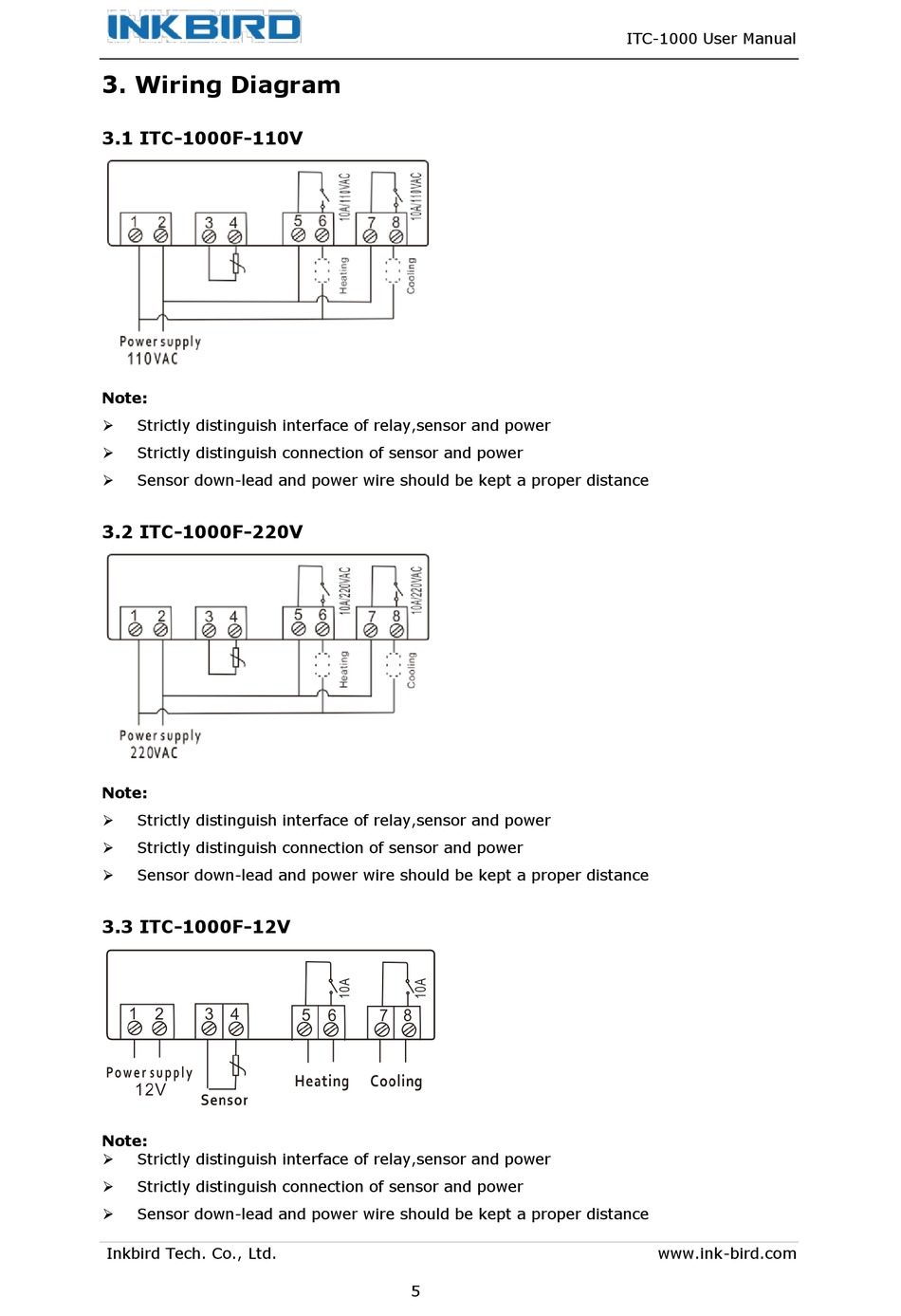

3. Wiring Diagram

3.1 ITC-1000F-110V

Note:
Strictly distinguish interface of relay,sensor and power

Strictly distinguish connection of sensor and power

Sensor down-lead and power wire should be kept a proper distance


3.2 ITC-1000F-220V

Note:
Strictly distinguish interface of relay,sensor and power

Strictly distinguish connection of sensor and power

Sensor down-lead and power wire should be kept a proper distance


3.3 ITC-1000F-12V

Note:
Strictly distinguish interface of relay,sensor and power

Strictly distinguish connection of sensor and power

Sensor down-lead and power wire should be kept a proper distance

