■Safety warning

●It's a must to use this product within its specification and using scope.
●When power on, do not connect, disassemble and touch terminals, as those
may cause damage due to spark, malfunction or electric shock.
●No metal fragment, wire thread or metal dusts produced during installation
are allowed to be inside the device, otherwise, there will be risk of electric
shock, fire or malfunction.
●Please do not use this product in flammable and explosive locations,
otherwise, there will be risk of damage caused by explosion.
●Never disassemble, refit and repair this product, or touch the inner components
by yourself, otherwise, there will be risk of electric shock, spark or malfunction.
●If the replay was serving beyond its estimated lifetime, there will be risk of
contact fusion and burning. It's a must to always pay attention to the using
environment of relay, and using the relay within its rated load and estimated
lifetime. The estimated lifetime of the relay varies according to the output
load and switching condition.
■ Product features
●Panel size: DIN(48×48mm)
●Compatible with various temperature sensors (K, S, Wre, T, E,
J, B, N, CU50, PT100)
●Wide control temperature range: -50 - 1300º C ( type K thermocouple)
●Display and control accuracy: 0.1 º C,
high measuring precision: ±0.2%FS
●PID control mode with high-performance self-tuning function
●User-defined output and alarm modes
●Adjustable digital filtering for reducing external interference
●Self-calibration available for ensuring long term stability of the instrument
●high luminance LED screen with height 0.39" characters,
anti-dazzle panel, well visibility
● Inbuilt switching power supply applicable for wide voltage range with
low power consumption

1.Technical parameters

AC 100-240V 50/60Hz
Rated Voltage AC/DC 12-24V 50/60Hz
DC 12-24V
Working voltage 85 to 100% of the rated voltage
About 5VA (100V - 240VAC)
Power About 4VA (12V - 24VAC)
About 3W (12V - 24VDC)
PV: high luminance LED screen with 4 digits of height
9.9mm displayed in red
Characters
SV: high luminance LED screen with 4 digits of height
8.0mm displayed in green
Display accuracy ±0.2%FS 0.1º C(＜1000º C); 1º C(≥1000º C)
Sampling period 0.5 seconds
Temperature
0-50º C
compensation
Relay output: AC 250V 3A (resistive load)
Voltage output (for driving SSR): 12VDC, 30mA DC
Control output
Maximum load: 600Ω
Electrical endurance of relay: 100,000 times
Relay output: AC 250V 3A (resistive load)
Alarm output
Relay output: AC 250V 3A (resistive load)
Weight About 140g
Working temperature -10 - 55º C (No ice or moisture condensation)
Working humidity RH 35-85%
Storing temperature -25 - 65º C (No ice or moisture condensation)

2.Models and specifications

Table 1: Product models and specifications
Model
ITC-100VH
ITC-100RH Relay control output
ITC-100VL
ITC-100RL Relay control output

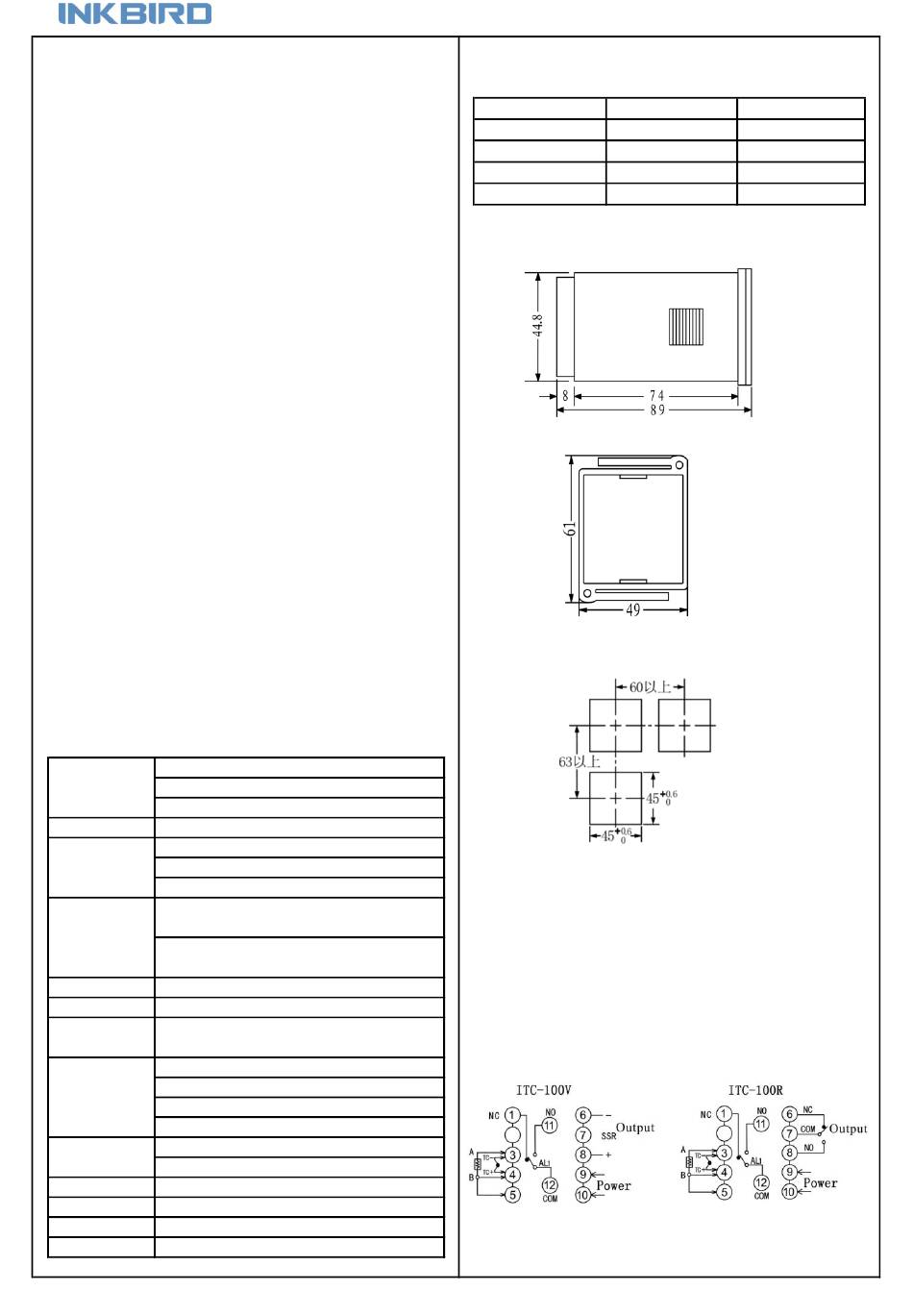

3.Diagram and installing size (unit: mm)
Figure 1: Shell Size
Figure 2: Mounting Bracket
Figure 3: Panel Cutout
3.1 Insert temperature controller into the mounting hole in the panel, then put
on the fixer from the rear and hold it temporarily, make sure there is no gap
among temperature controller, panel and fixer. After that, fix the temperature
controller with attached two bolts of the fixer under torque of 0.29N to 0.39N.
3.2 Make sure the surrounding temperature is within the stipulated
temperature range, especially when there are two or more temperature
controllers.

4.Wiring diagram

Figure 4:Wiring diagram
2
Control output Voltage
SSR control output AC 100-240V
AC 100-240V
SSR control output AC/DC 12-24V
AC/DC 12-24V
© 2015 Inkbird Inc. All rights reserved.
www.ink-bird.com, CS@ink-bird.com
