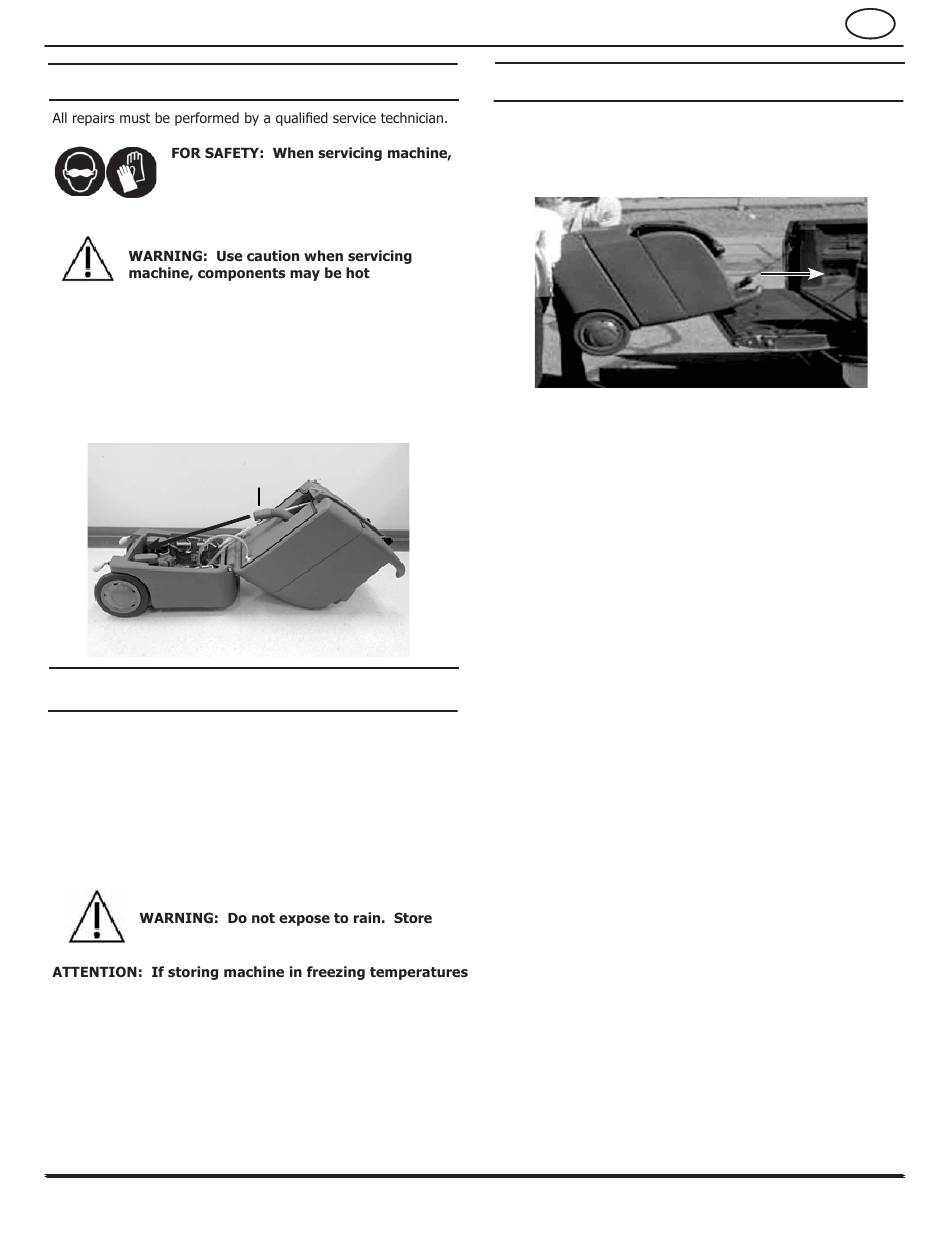

SERVICING MACHINE

unplug cords from wall outlets. Wear
appropriate personal protection
equipment as needed.
The machine is designed to hinge open for ease of servicing. To
access the internal components, remove the two lock plates at
back of machine and carefully hinge open machine. Empty tanks
before opening machine. Reconnect the vacuum hose when
closing machine. Replace lock plates.

STORING MACHINE

1. Remove all water from solution tank by using the hose from
the machine to vacuum water into the recovery tank.
2. Drain and rinse out recovery tank.
3. Attach solution hose to machine and wand. Turn on pump
and hold lever on wand to run pump dry. Turn off pump.
4. Disconnect power cords from machine. Neatly coil the power
cords and store on machine.
5. Store extractor with tank covers off to promote air circulation.
6. Store machine in dry area.
indoors only.
be sure that machine solution system and pump are
completely drained and dry.
Nobles Explorer H2 (01/2014)
.
Vacuum
Hose

LOADING MACHINE

Load machine with assistance by utilizing the 2 top loading
wheels as shown. Secure machine with tie down straps. Empty
solution tank and recovery tank before loading machine.
EN
