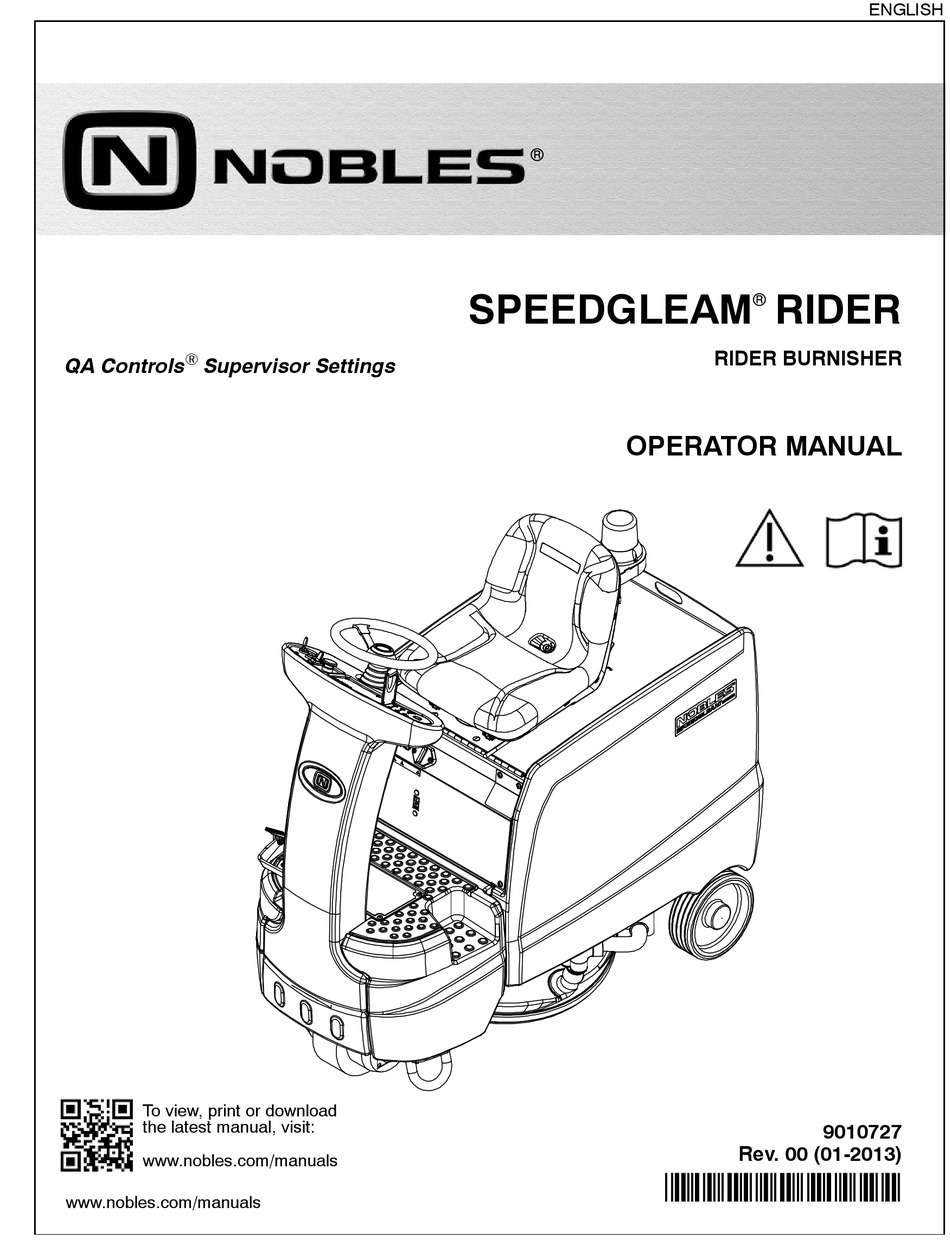

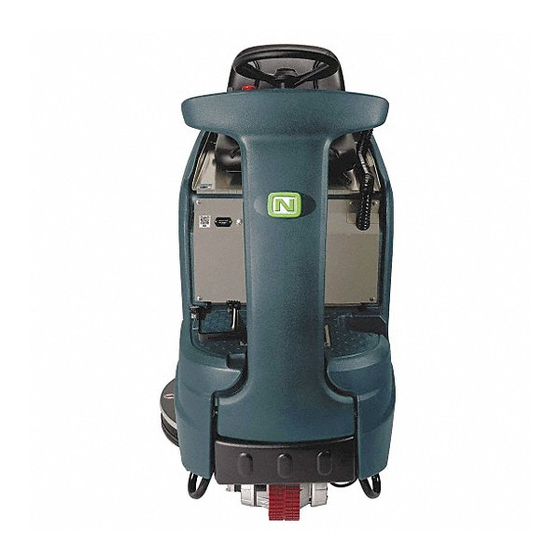

  • Page 1 ENGLISH ® SPEEDGLEAM RIDER ® RIDER BURNISHER  QA Controls Supervisor Settings OPERATOR MANUAL To view, print or download the latest manual, visit: 9010727 Rev. 00 (01-2013) www.nobles.com/manuals *9010727* www.nobles.com/manuals...

  • Page 2: Introduction

    QA Contols and 1--STEP are US registered and unregistered trademarks of Tennant Company. Nobles and SpeedGleam are registered United States trademark of Tennant Company. Trojan and HydroLINK are registered trademarks of Trojan Battery Company. Specifications and parts are subject to change without notice.

  • Page 3: Table Of Contents

    BATTERY CHARGER SETTINGS ..BATTERY CHARGER ERROR CODES ..BATTERY CHARGER FUSE ....Nobles SpeedGleam Rider (01- -2013)

  • Page 4: Operation

    This machine is for dry use only. machine. Keep children and unauthorized persons This machine is not suitable for picking up hazardous dust. away from machine. Do not allow to be used as a toy. Nobles SpeedGleam Rider (01- -2013)
  • Page 5 Use jack or hoist that will support machine weight. Wear appropriate personal protection equipment as needed and where recommended in this manual. For Safety: wear protective gloves. For Safety: wear eye protection. For Safety: wear protective dust mask. Nobles SpeedGleam Rider (01- -2013)

  • Page 6: Safety Labels

    -- Located behind kick panel on control board cover. WARNING LABEL - - Batteries emit hydrogen gas. Explosion or fire can result. Keep sparks and open flame away when charging. -- Located on backside of seat panel. Nobles SpeedGleam Rider (01- -2013)

  • Page 7: Machine Components

    18. On--board Battery Charger 8. Propel Pedal 19. On--board Battery Charger Cord Storage Hooks 9. Brake Pedal 20. Anti--static Strap 10. Stabilizer Arm 21. Passive Dust Collection Compartment 11. Propel Wheel n/s. Wall Roller (Option) Nobles SpeedGleam Rider (01- -2013)

  • Page 8: Control Panel Components

    7. Speed Decrease Button (--) 8. Emergency Stop Button 9. Forward/Reverse Directional Switch 10. Horn Button 11. Main Power On/Off Key Switch 12. QA Supervisor Controls Indicator (Lock--out) 13. Battery Discharge Level Indicator 14. Machine Fault Indicator Nobles SpeedGleam Rider (01- -2013)

  • Page 9: Machine Installation

    6. To keep the batteries from moving, position the FOR SAFETY: When servicing machine, wear supplied foam battery spacers around the batteries appropriate personal protection equipment as as shown (Figure 4). needed. Avoid contact with battery acid. Nobles SpeedGleam Rider (01- -2013)

  • Page 10: How The Machine Works

    HEPA rated dust filter. The burnishing function is controlled by a 1- -STEP burnishing button which automatically activates the preset pad pressure, speed control and active dust FIG. 5 control vacuum system. Nobles SpeedGleam Rider (01- -2013)

  • Page 11: Machine Setup

    4. Remove the pad center--lock from the pad driver by turning it counter--clockwise (Figure 9). FIG. 11 3. Check the dust collection bag daily for fullness. Do not allow the bag to fill beyond the “BAG FULL LINE” mark (Figure 12). FIG. 9 Nobles SpeedGleam Rider (01- -2013)
  • Page 12 9007785 -- Cloth bag. 1. Park the machine on a level surface and remove the key. 2. Release the two cover latches and remove the cover from the vacuum unit (Figure 13). FIG. 15 FIG. 13 Nobles SpeedGleam Rider (01- -2013)

  • Page 13: Machine Operation

    Active Dust Control.) FIG. 16 3. Position the directional lever in the direction you want to move (Figure 17). The reverse alarm system will beep repeatedly when moving backwards. FORWARD FIG. 20 REVERSE FIG. 17 Nobles SpeedGleam Rider (01- -2013)

  • Page 14: Emergency Shut--Off Button

    10. To stop burnishing, press the 1- -STEP burnishing button and turn the key to the off position. 9. Periodically check the dust collection bag for fullness. Replace bag as needed. Nobles SpeedGleam Rider (01- -2013)

  • Page 15: Qa Controls Supervisor Settings

    LED will blink if the operator attempts to change the burnishing settings (Figure 26). Instructions on how to use the QA Controls supervisor settings are packaged with each new machine. FIG. 28 FIG. 26 Nobles SpeedGleam Rider (01- -2013)

  • Page 16: Fault Indicator Light And Fault Beep Codes

    Control light blinks and horn re- change position. peatedly beeps three times. Fault light and propel speed lights #1 Control Board failure. Contact Service. & #2 blink Red battery light blinks Batteries are discharged. Recharge Batteries. Nobles SpeedGleam Rider (01- -2013)

  • Page 17: Circuit Breakers / Fuse

    Contact distributor or Tennant if your machine is not equipped with a battery charger. FOR SAFETY: The use of unapproved battery chargers may damage the battery and potentially cause a fire hazard. FIG. 30 Nobles SpeedGleam Rider (01- -2013)
  • Page 18 FOR SAFETY: Do not disconnect the off- -board charger’s DC cord from the machine’s receptacle when the charger is operating. Arcing may result. If the charger must be interrupted during charging, disconnect the AC power supply cord first. FIG. 35 Nobles SpeedGleam Rider (01- -2013)

  • Page 19: Battery Charger Settings

    5. Plug the battery charger cord into an electrical receptacle and confirm that the charger is properly set for your battery type. NOTE: See Battery Select Mode on page 10 to ensure FIG. 36 machine is properly configured for your battery type. Nobles SpeedGleam Rider (01- -2013)

  • Page 20: Battery Charger Fuse

    To replace a blown fuse, remove the fuse holder located at the front of the charger using a standard screwdriver (Figure 39). Required Fuse: 15 Amp (part no. 1206662). Never substitute a higher Amp rated fuse than specified. FIG. 39 Nobles SpeedGleam Rider (01- -2013)

  • Page 21: Maintenance

    Check, clean, replace (Active Dust Control Model) Steering chain and pivot points Lubricate with grease 750 Hours Propel Motor Replace carbon brushes 1000 Hours Pad Motor Replace carbon brushes O = Operator S = Trained Service Mechanic Nobles SpeedGleam Rider (01- -2013)

  • Page 22: Machine Maintenance

    (Figure 41). See INSTALLING DUST COLLECTION BAG. FIG. 43 Active Dust Control Model 5. Charge batteries (Figure 44). See CHARGING BATTERIES. Passive Dust Control Model OFF--BOARD CHARGER ON--BOARD CHARGER FIG. 44 FIG. 41 Nobles SpeedGleam Rider (01- -2013)

  • Page 23: After Weekly Use

    (Figure 50). Remove the filter holder at WARNING: When servicing machine, wear bottom of vacuum to access exhaust filter. (Models appropriate personal protection equipment as equipped with Active Dust Control). needed. FIG. 50 FIG. 47 Nobles SpeedGleam Rider (01- -2013)

  • Page 24: Battery Maintenance

    Do not add water to batteries before charging, the electrolyte level will expand and may overflow when charging. The level should be The level should be slightly above the battery slightly below the sight tubes plates FIG. 51 Nobles SpeedGleam Rider (01- -2013)

  • Page 25: Machine Jacking

    Block machine up with jack stands. FIG. 54 4. Submerge the other end of the hand pump hose into a bottle of distilled water (Figure 55). FIG. 57 Distilled Water FIG. 55 Nobles SpeedGleam Rider (01- -2013)

  • Page 26: Pushing, Towing, And Transporting Machine

    FOR SAFETY: When transporting machine, use a 3. Remove the batteries, or charge them every three ramp that can support the machine weight and months. operator. Nobles SpeedGleam Rider (01- -2013)

  • Page 27: Troubleshooting

    Defective battery or end of battery life Replace batteries Charger programmed incorrectly See CHARGING BATTERIES Faulty charger Replace battery charger Unable to change burnishing QA Controls Supervisor settings are Contact supervisor. settings. Lockout light is blinking. activated Nobles SpeedGleam Rider (01- -2013)

  • Page 28: Specifications

    Machine vibration at operator seat <2.5 m/s <2.5 m/s Machine vibration uncertainty K 0.2 m/s 0.2 m/s Ambient operating temperature Min: 32F/0C Min: 32F/0C Max: 110F/43C Max: 110F/43C Specifications are subject to change without notice. Nobles SpeedGleam Rider (01- -2013)

  • Page 29: Machine Dimensions

    SPECIFICATIONS MACHINE DIMENSIONS 30 in / 762 mm (24 in / 610 mm Model) 31.5 in / 800 mm (27 in / 686 mm Model) 55 in 1,397 mm 58.5 in / 1,486 mm Nobles SpeedGleam Rider (01- -2013)
