Turn the pump on from the control panel. Press the lever
on the wand and spray until there is no air coming out with
the water. This takes approximately 2-3 minutes. Turn the
pump off.

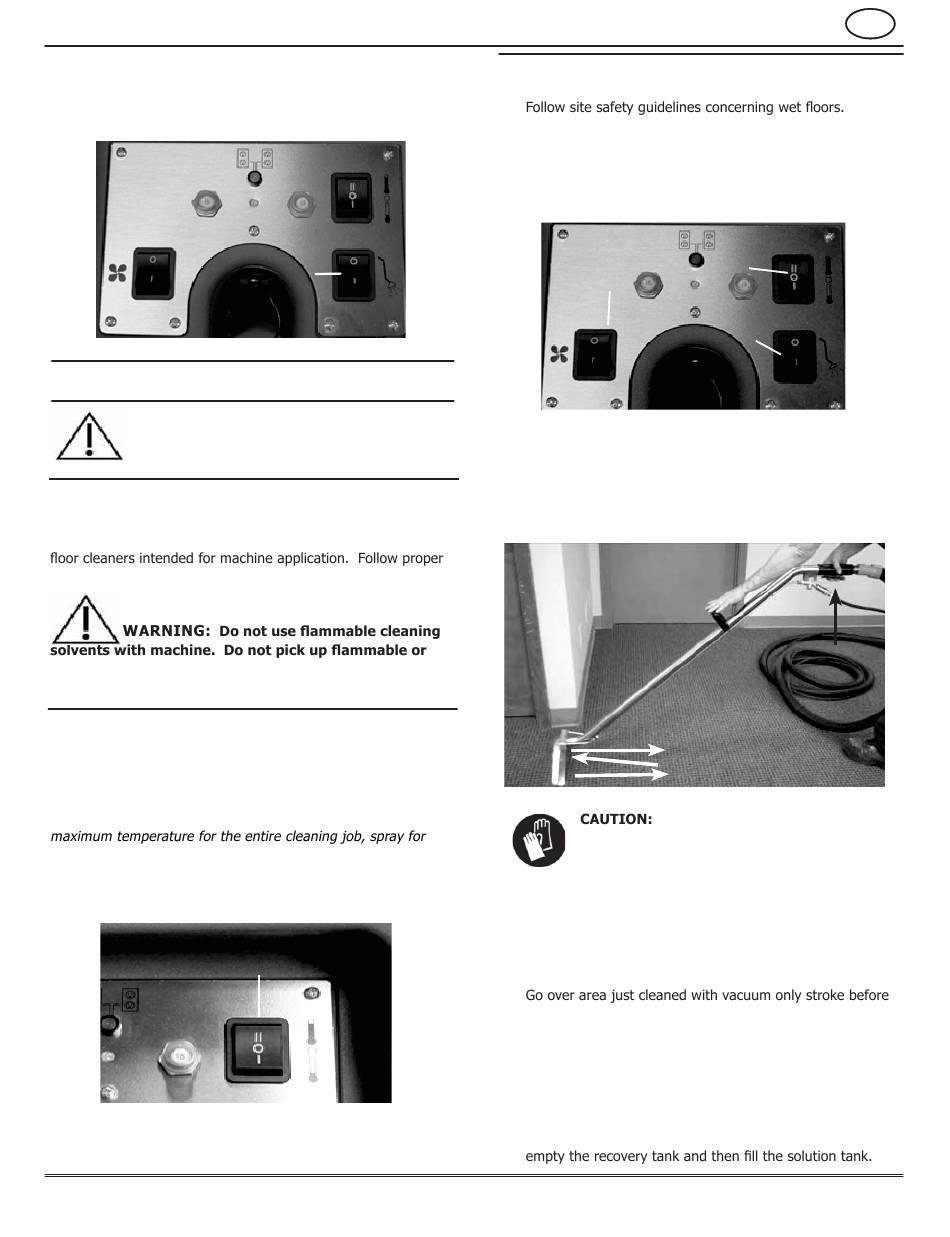

MACHINE OPERATION

Read all instructions before using
this machine.
PRE-SPRAY CARPET
With the use of a pump-up sprayer, pre-spray the carpet with an
approved cleaning detergent. Only use commercially available
mixing and handling instructions on detergent bottle.
combustible material or work in areas were they may be
present.
SET TEMPERATURE
Select the high heat II or low heat I position on the heater
switch on the control panel. Wait two minutes for the heater to
reach operating temperature.
Note: The heater holds a small amount of water. To maintain
short periods and then stop spraying during a recovery stroke.
Continuous spraying will prevent the water from reaching
maximum water temperature.
Nobles Explorer H2 (01/2014)
Pump
Switch
Heater
Switch
CARPET CLEANING WITH WAND
1.
2.
Verify the vacuum hose and solution hose are securely
connected to the machine and wand.
3.
Turn on the pump, vacuum, and heater switches.
Vacuum
Switch
4.
For optimum cleaning results it is suggested to use a V
stroke pattern as shown. Start with an area approximately
4' x 4'. On the back stroke pull the trigger on the wand for
the solution to spray.
When handling wand avoid contact
with hose coupler, valve and metal solution line.
This area could create a burn hazard. Wear
protection gloves as needed.
5.
Let up on the trigger about 4 inches before the end of the
stroke for maximum water recovery.
6.
Push the wand forward at a slight angle until next stroke is
slightly overlapping previous stroke.
7.
moving to the next area.
NOTE: Use defoamer any time foaming occurs in the recovery
tank to prevent damage to the motor or other components.
8.
Monitor the water level in the solution tank. If solution
tank runs dry, the pump must be reprimed.
9.
When the solution tank is low, turn off all the switches,
EN
English
Heater Hi/Lo
Switch
Pump
Switch
7
7
