Illustrations & Part Lists

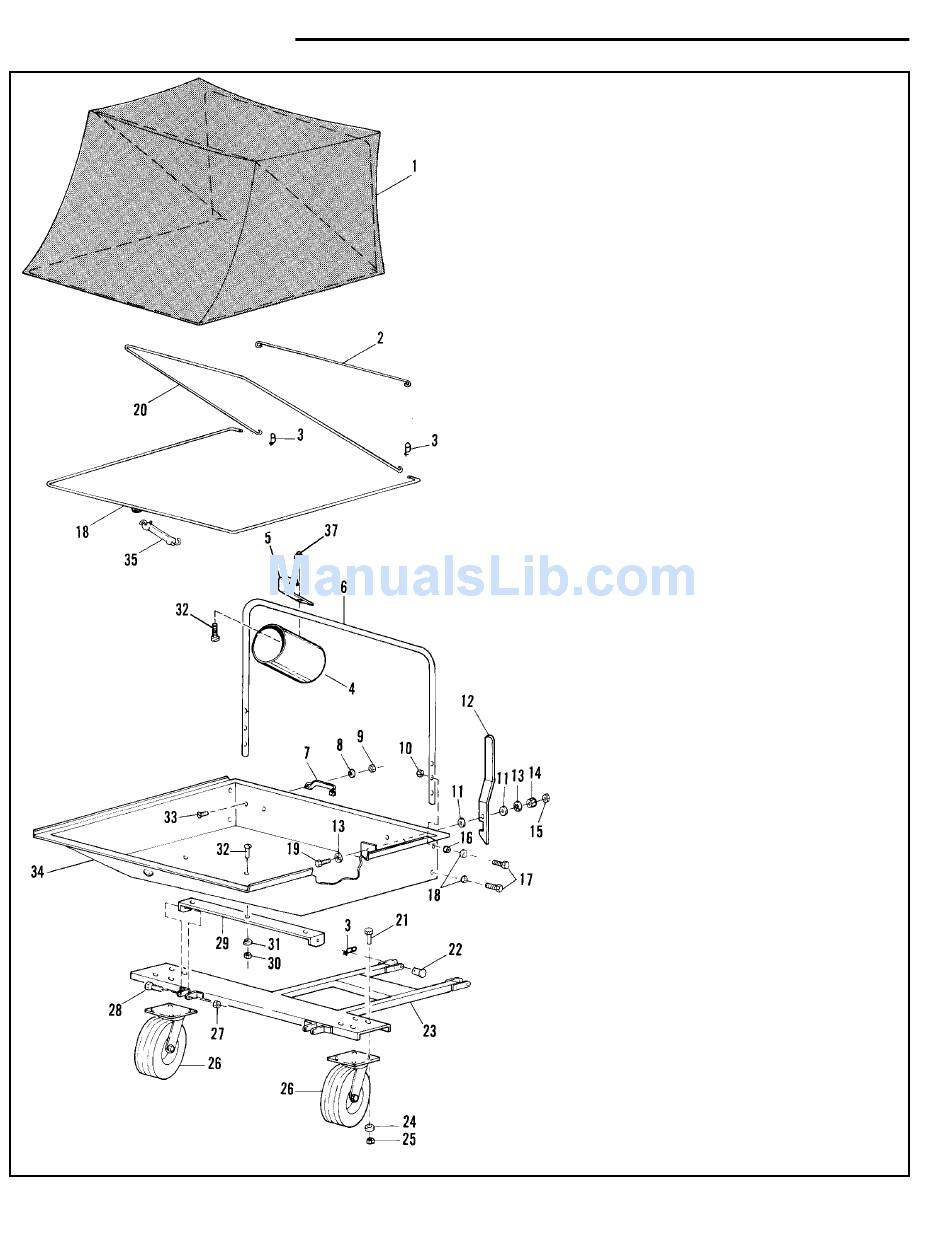

Figure 1. Wide Body Dump Cart
No. Qty.
1 1
2 1
3 2
4 1
5 1
6 1
7 2
8 4
9 4
10 4
11 6
6
12 1
13 2
14 1
15 1
16 2
17 4
18 1
19 1
20 1
21 8
22 2
23 1
24 8
25 8
26 2
27 2
28 2
29 1
30 3
31 3
32 3
33 4
34 1
35 1
36 1
37 1
2
Description
COVER
ROD, Straight
CLIP, Safety, Hairpin
SLEEVE, Plastic, Connecting
CLAMP, Sleeve
TUBE, Support
HANDLE, Lift
LOCKWASHER, 1/4
NUT, Hex, 1/4-20
NUT, Lock, 5/16-18
WASHER, Flat, 5/16
(1691367 & 1691358)
WASHER, Flat, 5/16
(1691526 only)
HANDLE, Latch
WASHER, Spring, 5/16
NUT, Hex, Full, 5/16-18
NUT, Jam, 5/16-18
SPACER, Plastic, 5/16
CAPSCREW, Hex Hd.,
5/16-18 x 1-1/2
ROD, Frame
CAPSCREW, Hex Hd.,
5/16-18 x 1-1/4
ROD, Support
BOLT, Hex, 3/8-16 x 1
PIN,1/2x 1-1/4
FRAME
WASHER, Flat, 3/8 S.A.E.
NUT, Hex Lock, 3/87-16
WHEEL, Swivel, 410/350-4
NUT, Hex Lock, 1/2-13
CAPSCREW, Hex Hd.,
1/2-13 x 1-1/4
"U" BRACKET
NUT, Hex, 5/16-18
LOCKWASHER, 5/16
BOLT, Slotted, Truss Hd.
CAPSCREW, Hex Hd.,
1/4-20 x 1/2
BOX
STRAP, Rubber, 6"
CAPSCREW, 1/4-20 x 1/2
NUT, Nylon insert, 1/4-20
