Broadmoor - Simplicity Turbo Turbo Wide Body Cart & Hitch Operator's Manual

Hitch Installation
Broadmoor/1600 Series (Mfg. No. 1692526)

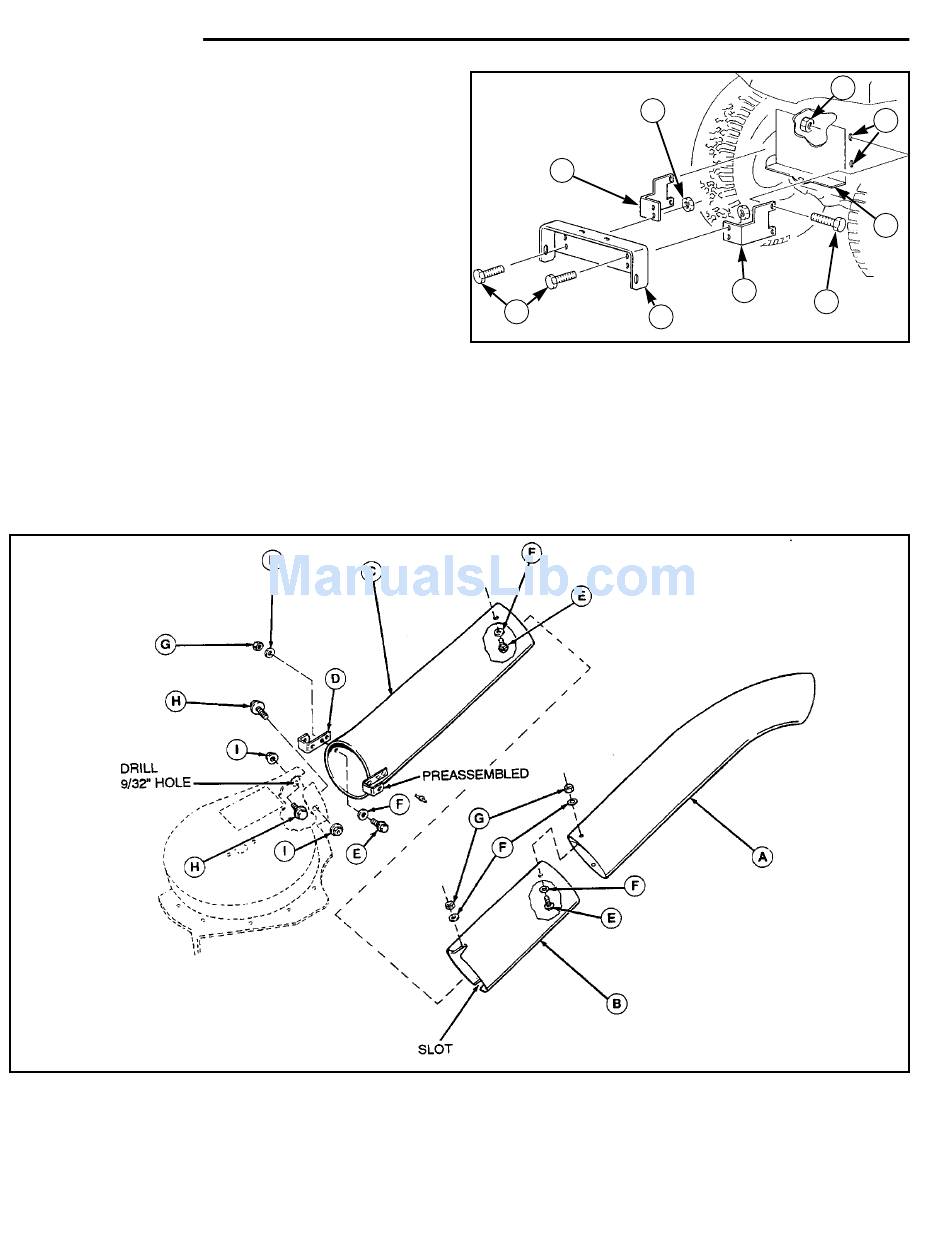

1. Assemble the hitch bracket (A, Figure 25) to the hitch
adapters left (B) and right (C) with four 3/8-16 x 1 cap
screws (D) and locknuts (E).
2. Position the hitch bracket over the drawbar (F) with
the two hitch adapters on the outside of the drawbar
frame (F). Secure with four 3/8-16 x 1 capscrews and
lock nuts.
Figure 26. Discharge Tube Installation
A. Upper Tube
B. Middle Tube
C. Lower Tube
D. Spring Clip
E. Truss Head Screw, 10/32 x 1/2
B
D
Figure 25. Hitch Assembly - Broadmoor
A. Hitch Bracket
B. Hitch Adapter, Left
C. Hitch Adapter, Right
D. Capscrew. 3/8-16 x 1
F. Washer
G. Locknut, 10/32
H. Carriage Bolt, 1/4-20, 5/8
I. Flange Locknut, 1/4-20
10
E
C
D
A
E. Locknut, 3/8-16
F. Drawbar
G. Drawbar Frame
E
G
F
