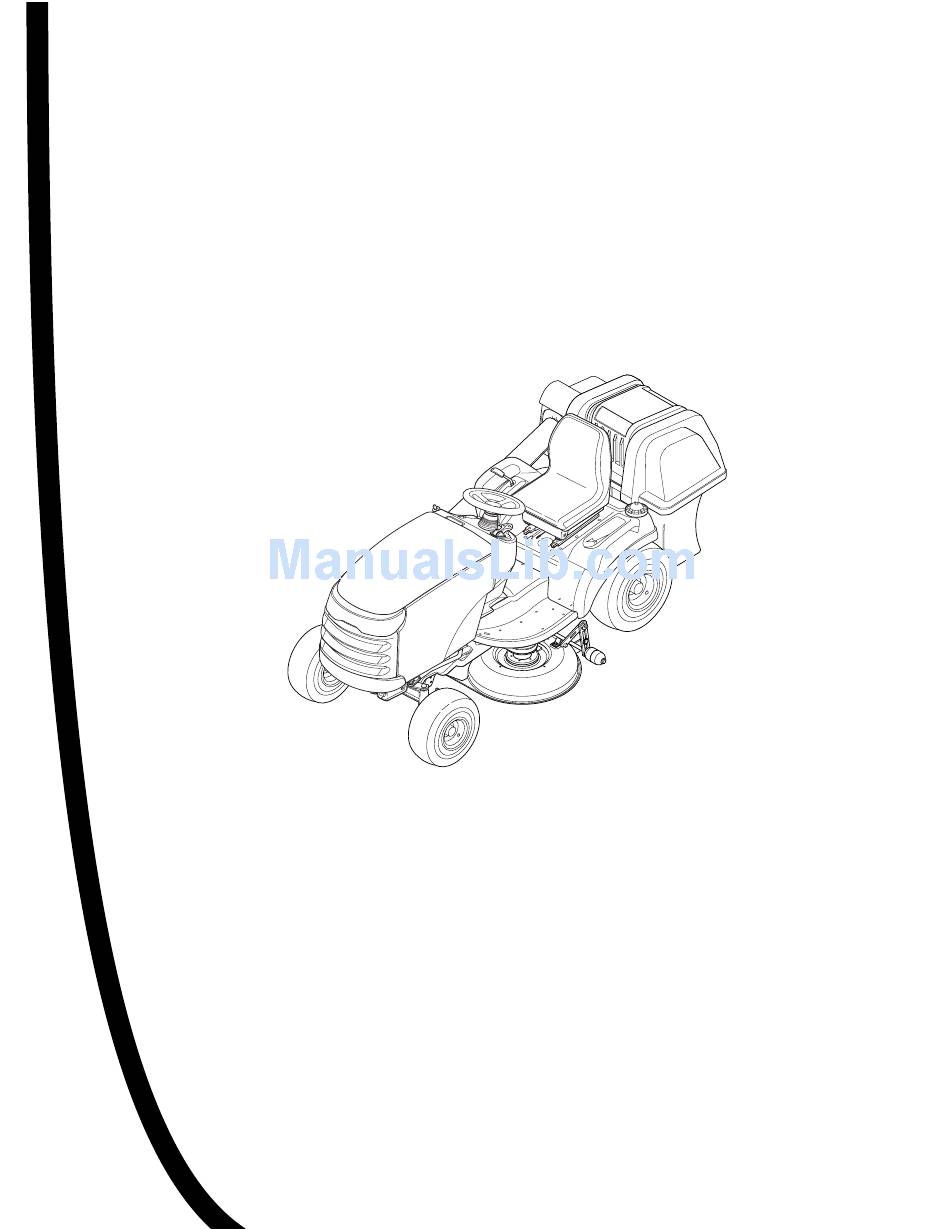

- Page 1 ATTACHMENT OPERATOR’S MANUAL Turbo Clean Sweep Twin Catcher Turbo Clean Sweep Twin Catcher Mfg. No. Description Turbo Clean Sweep Twin Catcher (Multiple Applications) 1694153 1694693 Turbo Clean Sweep Twin Catcher (Multiple Applications) 1723846 Revision 06 Rev 4/2005 TP 100-2599-06-AT-UV...
-
Page 2: Table Of Contents
Safety Rules & Information General Warnings...2 Safety Decals ...2 General Operating Information Mowing with the Triple Catcher...3 Recommended Accessories...3 After Operation ...3 Storing the Grass Catcher ...3 Initial Assembly & Installation Install Mounting Plates - Broadmoor / 1600 / 2600 / LT Series Install Plates &... -
Page 3: Safety Rules & Information
Safety Rules & Information Read these safety rules and follow them closely. Failure to obey these rules could result in loss of control of unit, severe personal injury or death to you, or bystanders, or damage to property or equipment. The trian- in text signifies important cautions or warnings which must be followed. -
Page 4: Mowing With The Triple Catcher
MOWING WITH THE CATCHER Always operate with throttle at full speed when mowing. Grass should be cut often, and not too short. If grass is too long or lush it may be necessary to keep ground speed to a minimum or to cut only half the width of the mower to prevent clogging. -
Page 5: Initial Assembly & Installation
Initial Assembly & Installation INSTALL MOUNTING PLATES - BROADMOOR / 1600 / 2600 / LT SERIES Install Plates & Spacers 1. Mount the side brackets (B, Figure 1) to both sides of the frame using the holes shown. Secure with one 3/8-16 x 1 capscrew (C) and 3/8-16 nylock nut (A) per side. -
Page 6: Catcher Assembly - All Models
Use this Use this upright with upright with Broadmoor / Prestige / 1600 / 2600 / 1800 / 2800 / LT Series YT & Conquest / 1700 / 2700 / GT Series Figure 4. Upright Identification Conquest & Broadmoor Mounting Holes Figure 5. -
Page 7: Install Cover & Bags
Initial Assembly & Installation Figure 8. Install Catcher (Prestige Shown) A. #10-32 Nut F. Bags B. Handle G. Hair Pin Clip C. #10-32 x 1/2 Screw H. Catcher Hitch D. Cover I. Spacers E. Hinge Pin Install Cover and Bags 1. -
Page 8: Normal Removal & Installation Removal
Normal Removal & Installation A. Tubes B. Hair Pin Clip C. Frame Spacers D. Bags E. Clevis Pin F. Cover G. Clip Figure 11. Normal Removal & Installation (Prestige Shown) WARNING OPERATION WITHOUT TURBO & CATCHER For operation without turbo, the mower deflector MUST be properly installed in the down position and retained by the spring latch (see turbo operator’s manual). -
Page 9: Installation With A Tiller Initial Setup
Installation with a Tiller Figure 12. Initial Setup (Prestige Shown) A. Nuts, 5/16-18 G. Carriage Bolts, B. Lockwashers, 5/16 3/8-16 x 3/4 C. Plate H. Nuts & Lockwashers, D. Spacers E. Lower Support I. Upright Support F. Carriage Bolts, 5/16-18 x 1-1/4 INSTALLATION WITH A TILLER Initial Setup Note: Use the short upright bracket (refer to Figure 4). - Page 10 Notes...
-
Page 11: Hardware Identification & Torque Specifications
Hardware Identification & Torque Specifications Common Hardware Types Hex Head Capscrew Carriage Bolt Standard Hardware Sizing When a washer or nut is identified as 1/2”, this is the Nominal size, meaning the inside diameter is 1/2 inch; if a second number is present it represent the threads per inch When bolt or capscrew is identified as 1/2 - 16 x 2”, this means the Nominal size, or body diameter is 1/2 inch;... - Page 12 M A N U F A C T U R I N G , I N C . 500 N Spring Street / PO Box 997 Port Washington, WI 53074-0997 www.simplicitymfg.com © Copyright 2005 Simplicity Manufacturing, Inc. All Rights Reserved. Printed in USA.
