OPEN DOOR FEATURE

GXP IP Phones offer a powerful integration with GDS3710 Door System and allow users to remotely open
the door, initiate calls to the GDS3710 and get real time audio/video or only audio stream.
Once someone presses the ring button on the GDS3710, the door system will initiate automatically a call
to the configured destination. In both cases, the users will have the ability to either answer the call, reject it
or press the OpenDoor softkey.
Users can open the door using the following methods:
1. Pressing the "OpenDoor" Softkey without answering the call:
Once the users press the "OpenDoor" softkey, a SIP Message containing the code for "Remote PIN
for Open the Door" will be sent to the GDS3710 to remotely open the door.
2. OpenDoor after answering the call:
•
Press the "OpenDoor" Softkey, then a SIP Message containing the code for "Remote PIN for
Open the Door" will be sent to the GDS3710 to remotely open the door.
•
Dial the code for "Remote PIN for Open the Door" followed by "#" (for example "123456#"),
and then DTMF codes will be sent to open the door.
Note: Pressing the "Reject" Softkey will reject the call received from the GDS3710.

GXP21xx IP Phones

Connecting GDS3710 with GXP IP Phones Configuration Guide

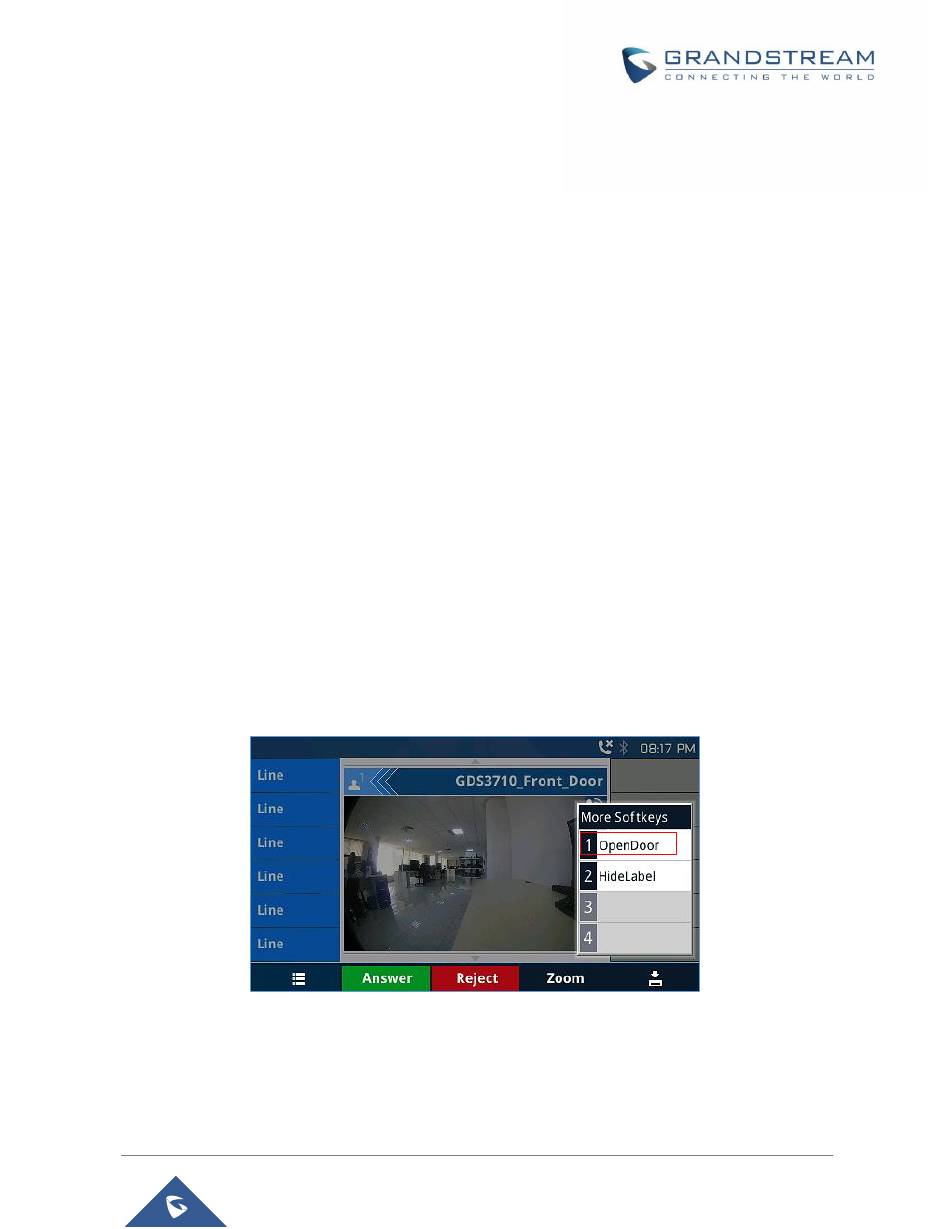

Figure 12: GDS3710 Video/Audio Call on GXP2170
