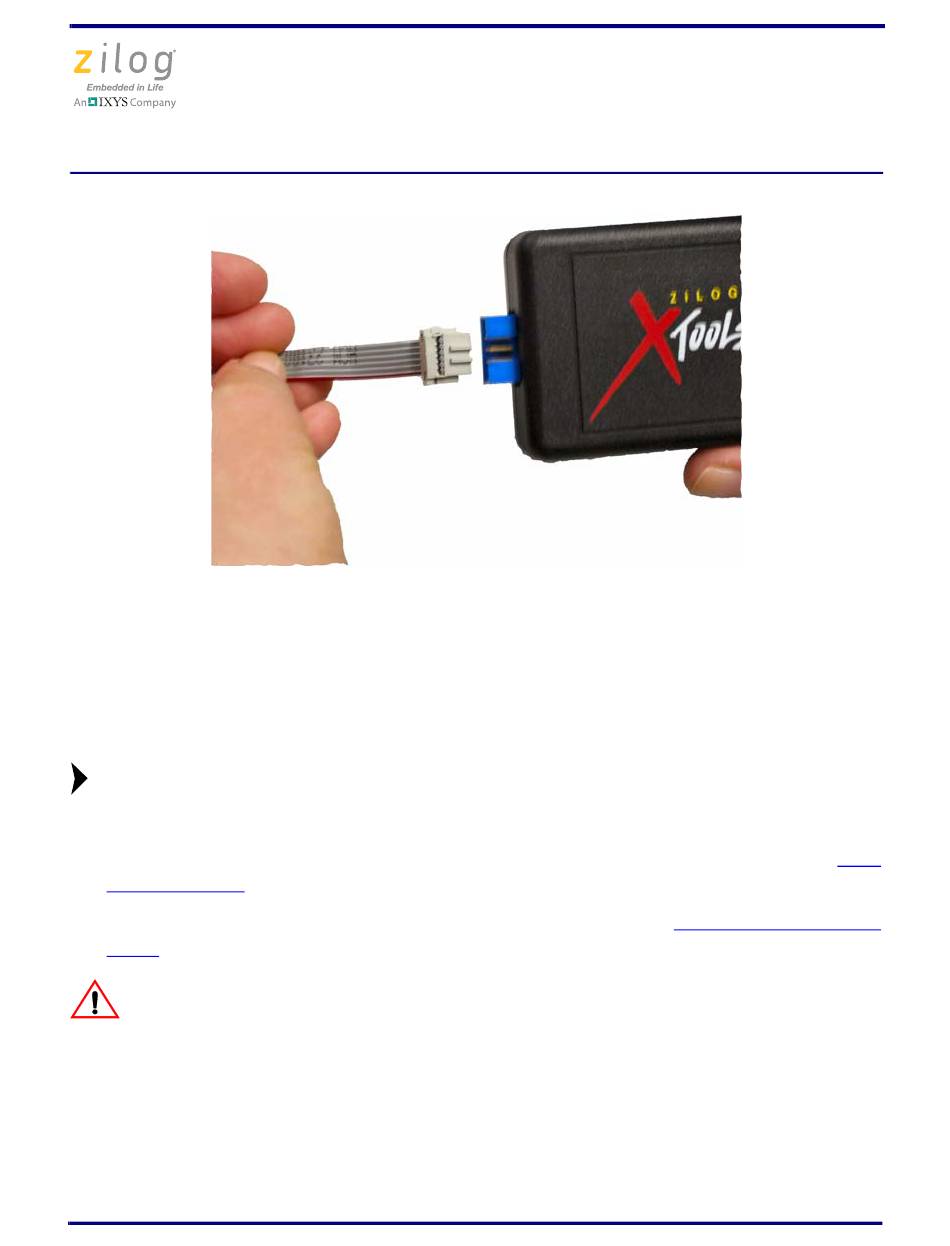

Figure 3. Connecting the Six-Conductor Ribbon Cable
Step 5. Download and Run the Sample Code
Observe the following steps to open the
and run the sample code in Debug mode.
Ensure that the console port (P3) is connected on the serial port of your host
Note:
PC. Set the terminal to 57600, 8-N-1.
1. Ensure that the switches and jumpers on the MC MDS board are set as described in
2. Set Switches
2. Connect and apply power to the development kit as described in
Mode on page 2 through 6.
Do not apply power to the MC MDS board or application board unless
Caution:
the USB Smart Cable is connected both to the host PC and to the devel-
opment board's DBG port.
3. Run the ZDS II software. By default, the Zilog Developer Studio II program is located
in the Start menu under:
Programs ® ZiLOG ZDS II_ZNEO_<version_number>
ZDS II_ZNEO_<version_number>
