Summary of Contents for Robe Robin CycBar UV

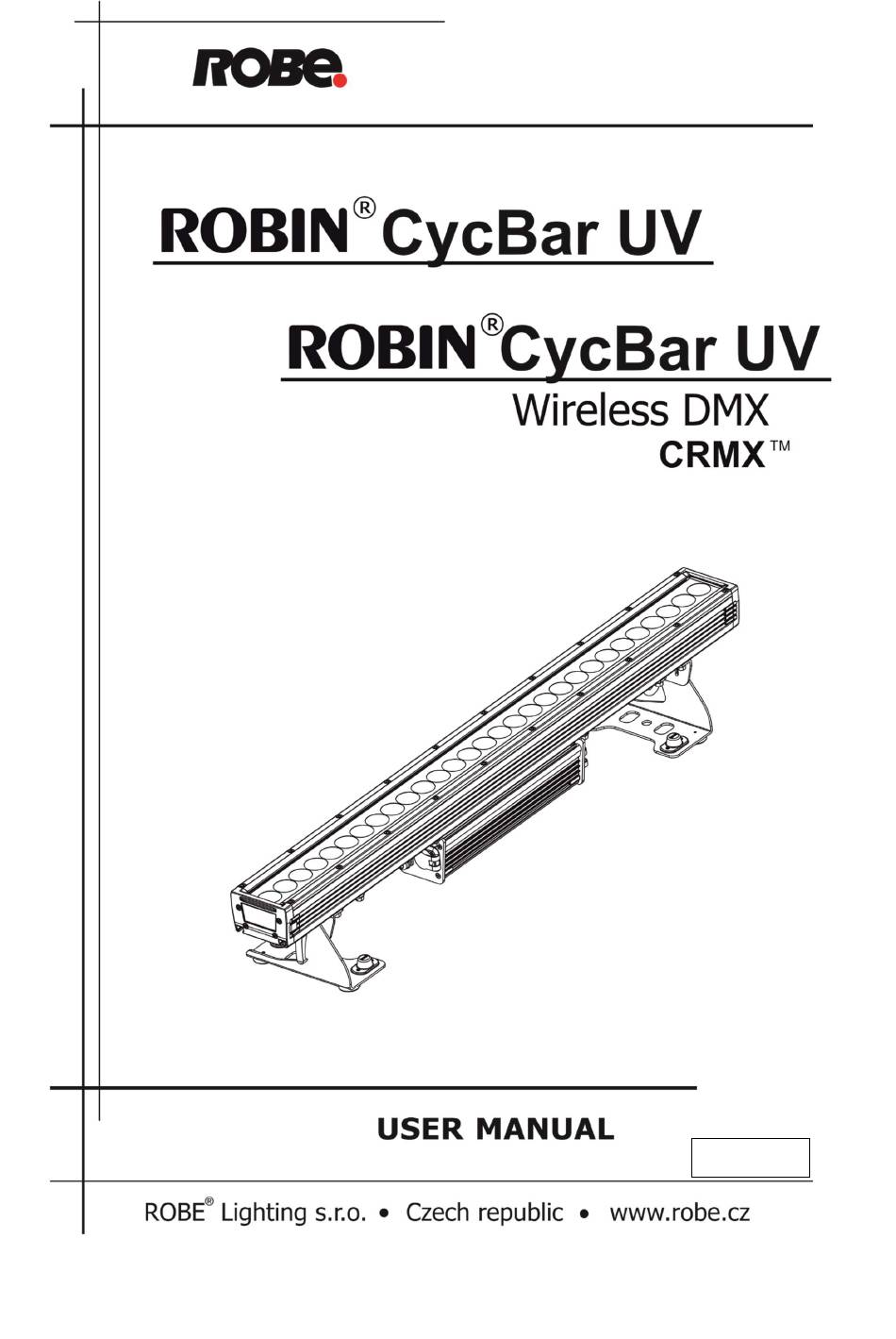

- Page 1 Version 1.2...
-
Page 2: Table Of Contents
3.3 DMX 512 connection ............................8 3.4 Wireless DMX operation ............................9 3.5 Inserting the black glass ............................9 4. Robin CycBar UV - DMX protocol ..........................10 5. Control menu map ..............................11 6. Control menu ................................13 6.1 Fixture Address ..............................13 6.2 Fixture information ............................. -
Page 3: Safety Instructions
Robin CycBar UV FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE POWERING OR INSTALLING YOUR Divine 60 UV! Save it for future reference. This device has left our premises in absolutely perfect condition. In order to maintain this condition and to ensure safe operation, it is absolutely necessary for the user to follow the safety instructions and warnings written in this manual. - Page 4 Robin CycBar UV Risk Group 3 LED product according to ČSN EN 62471. Make sure that materials which are exposed to UV radiation will not be damaged! Do not look at the fixture´s LEDs during operation. The light beam may damage your eyes.
-
Page 5: Fixture Exterior View
Robin CycBar UV 2. Fixture exterior view 1. LED unit body 2. Side covers 3. Locks for tilt adjusting 4. Eyelet for safety cable 5. Mounting brackets 6. Glass transparent cover 7. DMX IN 8. Control unit 9. LED display 10. -
Page 6: Installation
This device falls under class one and must be grounded! Design of the Robin CycBar UV allows to connect several fixtures to AC mains power in one interconnected daisy chain using power input/output connectors. Needed daisy chain cables are stated in the chapter “Technical specifications “... -
Page 7: Rigging The Fixture
3.2 Rigging the fixture The Robin CycBar UV can be rigged in any orientation on a truss without altering its operation characteristics. For overhead use, always install a safety cable that can hold at least 10 times the weight of the fixture. You must use only a safety wire with a snap hook with screw lock gate. -
Page 8: Dmx 512 Connection
Robin CycBar UV 3.3 DMX 512 connection The fixture is equipped with 5-pin XLR connectors for DMX input/output. Only use a shielded twisted-pair cable designed for RS-485 and 5-pin XLR- connectors in order to connect the controller with the fixture or one fixture with another. -
Page 9: Wireless Dmx Operation
2. Press and hold a lock (1) and insert two shorter parts (2) of the black glasss. Release the lock (1). 3. Press and hold the lock (1) on the opposite side of the Robin CycBar UV and insert the shorter part (2) and longer part (3) of the black glass. -
Page 10: Robin Cycbar Uv - Dmx Protocol
Robin CycBar UV 4. Robin CycBar UV - DMX protocol Version 1.0 Mode Mode Function Type of control Value Shutter/ Strobe 0-31 Shutter closed step 32-63 Shutter open step 64-95 Strobe-effect from slow to fast proportional 96-127 Shutter open step 128-143 Opening pulses in sequences slow-->... -
Page 11: Control Menu Map
Robin CycBar UV 5. Control menu map Default settings=Bold print Menu Level 1 Menu Level 2 Menu Level 3 Menu Level 4 Menu Level 5 Menu Level 6 A001 dM.Ad. 001-512 dM.Pr. Mod 1 Mod 2 InFo Poti. totl rSEt VErS. - Page 12 Robin CycBar UV Menu Level 1 Menu Level 2 Menu Level 3 Menu Level 4 Menu Level 5 Menu Level 6 dimr 0-255 F.dim 0-255 SAVE dF.SE. MAn.M. Stro. 0-255 dimr 0-255 F.dim 0-255 tESt St.AL. Auto tESt PrG1-PrG3 PLAY...
-
Page 13: Control Menu
Po.ti. --- Power On Time. Use the menu item to read the number of operation hours for each LEDs operating mode. totl - the function shows the total number of the operation hours since the Robin CycBar UV has been fabricated. -
Page 14: Personality
DM.In.---DMX values. Select this function to read DMX values of each channel received by the fixture. 6.3 Personality Use this menu to modify the Robin CycBar UV operating behaviour. DM.Pr. --- DMX preset. Select this menu item to set a desired DMX mode. Please refer to the chapter "DMX protocol"... -
Page 15: Manual Mode
6. 5 Test sequences Use this menu to run test sequences without an external controller, which will show you some possibilities of using the Robin CycBar UV. 6.6 Stand-alone setting The fixtures on a data link are not connected to the controller but can execute pre-set programs which can be different for every fixture. -
Page 16: Special Functions
- Flash cable RS232/DMX, P/N13050624 (if you want to use a serial port of PC) - Robe Universal Interface or Robe Universal interface WTX (if you want to use an USB port of PC) Note: Software update should be executed by a qualified person. If you lack qualification, do not attempt the update yourself and ask for help your Anolis distributor. - Page 17 If you use the Robe Universal Interface, connect a USB port of your computer with the Robe Universal Interface by means of the USB cable and DMX input of the fixture with the DMX output of the Robe Universal Interface via a DMX cable.
-
Page 18: Rdm
Discovery command SET command GET command DISC_UNIQUE_BRANCH DISC_MUTE DISC_UN_MUTE DEVICE_INFO SUPPORTED_PARAMETERS SOFTWARE_VERSION_LABEL DMX_START_ADDRESS IDENTIFY_DEVICE DEVICE_MODEL_DESCRIPTION MANUFACTURER_LABEL DEVICE_LABEL SENSOR_DEFINITION SENSOR_VALUE DISPLAY_LEVEL DEVICE_RESET DMX_PERSONALITY DMX_PERSONALITY_DESCRIPTION STATUS_MESSAGES STATUS_ID_DESCRIPTION DEVICE_HOURS Please, see the Robe Universal Interface user manual for detail description of RDM operation. -
Page 19: Technical Specifications
• Manual control of all effects via control panel • 3 editable program, up to 40 steps Wireless DMX/RDM module (only for wireless DMX version of the Robin CycBar UV) • Compliance with USITT DMX-512 (1986 & 1990) and 512-A •... - Page 20 • 1 x User manual Optional accessories (P/N 10980 433) Black glass for Robin CycBar UV (P/N 13052 276) Mains Cable PowerCon TRUE1 In/open ended, EU 2m, outdoor (P/N 13052 277) Mains Cable PowerCon TRUE1 In/open ended, US 2m, outdoor...
-
Page 21: Cleaning And Maintenance
Robin CycBar UV 9. Cleaning and maintenance DANGER ! Disconnect from the mains before starting any cleaning or maintenance work The front transparent cover will require monthly cleaning as smoke fluid tends to build up residues, reducing the light output very quickly. For cleaning use a wet clout or an air-jet. Do not use solvents or any other aggressive cleaning fluid. -
Page 22: Extract From A Test Report Of Brno University Of Technology - Light Laboratory
10.1 Measurement results for all LEDs with clear glass (max. power) Evaluted according: ČSN EN 62471, ČSN EN 62471-5, IEC TR 62778, ANSI/IESNA RP -27.3-07 Fixture at a distance, which produces illuminance of 500 lx. Results for Robin CycBar UV are in bold frame... - Page 23 Robin CycBar UV Key to identify the hazards in the evolution tables If the cell has transparent background and the text is written in italics, the value is not used to evaluate risk. All LEDs on (max. power) Calculated values of illuminance (E), actinic ultraviolet irradiance (E...
-
Page 24: Measurement Results For All Leds With Black Glass (Max. Power)
Robin CycBar UV 10.2 Measurement results for all LEDs with black glass (max. power) Evaluted according: ČSN EN 62471, ČSN EN 62471-5, IEC TR 62778, ANSI/IESNA RP -27.3-07 Fixture at a distance, which produces illuminance of 500 lx. Results for Divine 60 UV are in bold frame... - Page 25 Full report from the Light Laboratory on request. Specifications are subject to change without notice August 23, 2018 Copyright © 2018 Robe Lighting - All rights reserved Made in CZECH REPUBLIC by ROBE LIGHTING s.r.o. Palackeho 416/20 CZ 75701 Valasske Mezirici...
