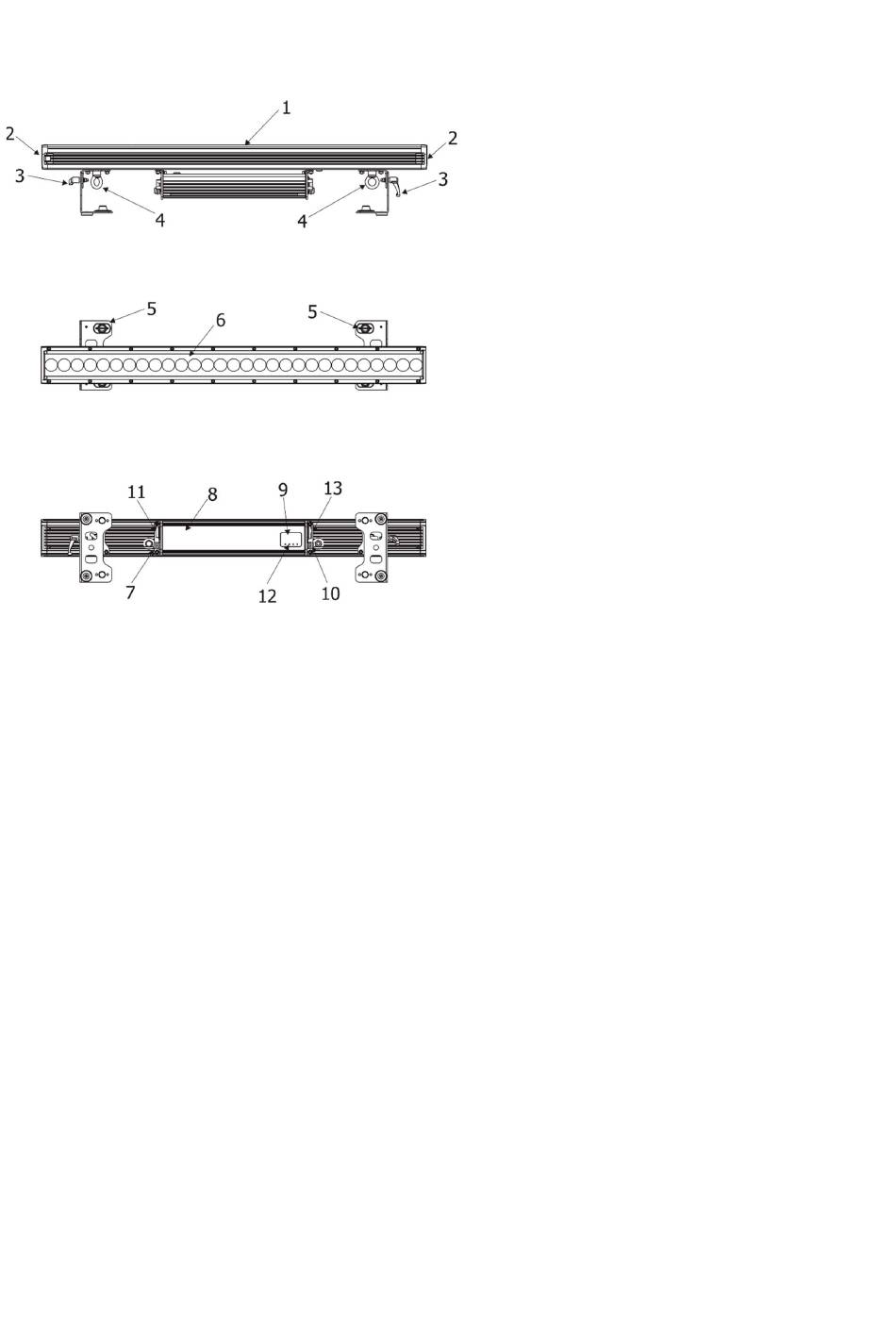

2. Fixture exterior view

To keep declared ingress protection of the fixture, do not disassemble side covers (2).
Fixture´s power connectors (7, 10) are dust and water protected according to protection class IP 65 by mating with
related power connectors with cords (IP 65 rated) or by covering with the rubber sealing covers. They cannot stay
uncovered outdoor (e.g. during fixture installation).
Fixture´s DMX cable connectors are dust and water protected according to IP 65 by mating with related X-HD cable
connectors.
They cannot stay disconnected outdoor. DMX output connector (XLR female) at the last fixture in a DMX line has to
be covered with the rubber cap before inserting a terminator. The rubber cap does not supply the terminator. The
XLR terminator (male) has to be water protected.
If the fixture is to be outdoor without connecting to DMX line, always interconnect its DMX input with DMX output
to keep declared IP rating of XLR connectors.
Robin CycBar UV
Warning for outdoor operation:
5
1. LED unit body
2. Side covers
3. Locks for tilt adjusting
4. Eyelet for safety cable
5. Mounting brackets
6. Glass transparent cover
7. DMX IN
8. Control unit
9. LED display
10. DMX OUT
11. Power IN
12. Control buttons
13. Power OUT
