Robe Robin 300E Spot Service Manual
  1. Manuals
  2. Brands
  3. Robe Manuals
  4. Lighting Equipment
  5. Robin 300E Spot
  6. Service manual

Robe Robin 300E Spot Service Manual

Robin 300e spot
Hide thumbs Also See for Robin 300E Spot:

Advertisement

Quick Links

Download this manual See also: User Manual
Service manual
Robin 300E Spot
Exploded Diagrams
Circuit Diagrams
Wiring Diagrams
Order Numbers
Version: A

Advertisement

loading
Need help?

Need help?

Do you have a question about the Robin 300E Spot and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Robe Robin 300E Spot

Summary of Contents for Robe Robin 300E Spot

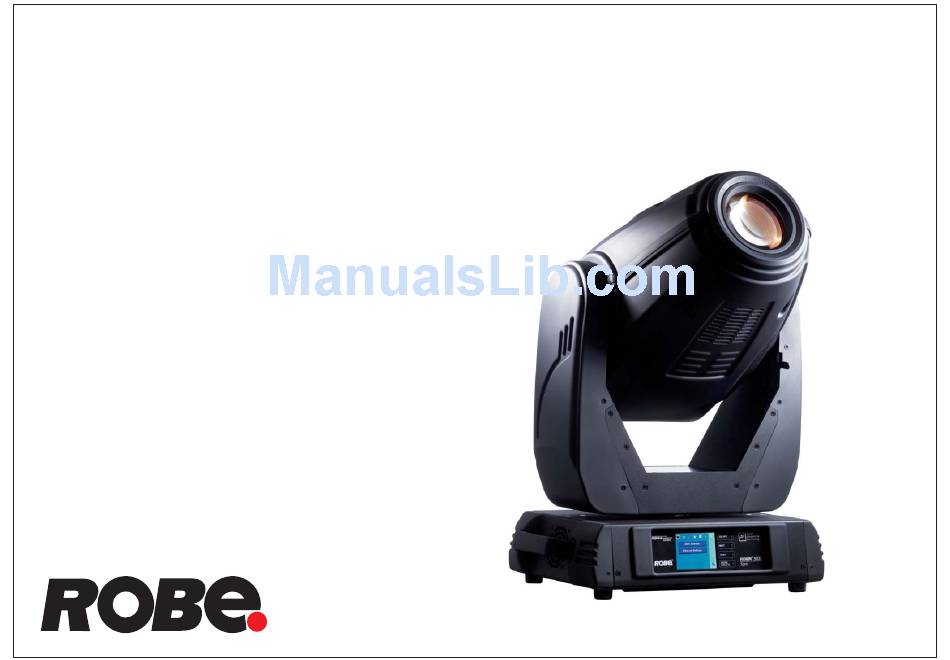

  • Page 1 Service manual Robin 300E Spot Exploded Diagrams Circuit Diagrams Wiring Diagrams Order Numbers Version: A...
  • Page 2 EZ1071 1H12.M 1H12.M 24HC4301 H12.M 1H11.M 2H11.M TOUCH DISP1 DISPLAY 3H14.M KD1206PHB1 1H14.M H1.D H2.D H3.D PCB10 PRODUCT: Robin 300E Spot TITLE: WIRING DIAGRAM CNG4H DOCUMENT: Basic Section E1 V 1.0 KD1206PHB1 VERSION: 1 DATE: 8.12.2009 SHEET: 1 OF 9...
  • Page 3 H9.S H12.S RB2091 S SiF VDE 1WH SiF VDE 1RD Y2-ES 1RD Y2-ES 1WH H1.M H9.C H7.C PRODUCT: Robin 300E Spot PCB1 PCB3 TITLE: WIRING DIAGRAM RB2002 RB2110 DOCUMENT: Strobo Section E2 V 1.0 VERSION: 1 DATE: 8.12.2009 SHEET: 2 OF 9...
  • Page 4 2H2.S 2H7.C 1H2.S 1H7.C HAL506 3H2.S J1 H35 PCB14 MAG27-A H9.S H15.I PCB2 PCB4 RB2091 S RB2110 S/2L I PRODUCT: Robin 300E Spot TITLE: WIRING DIAGRAM DOCUMENT: Optic Section E3 V 1.0 VERSION: 1 DATE: 8.12.2009 SHEET: 3 OF 9...
  • Page 5 SiF VDE 1RD SiF VDE 1WH SiF VDE 0.5WH SiF VDE 0.5RD H9.O H15.I PCB5 PCB3 RB1766 O RB2110 S/2L C PRODUCT: Robin 300E Spot TITLE: WIRING DIAGRAM DOCUMENT: Iris Section E4 V 1.0 VERSION: 1 DATE: 8.12.2009 SHEET: 4 OF 9...
  • Page 6 3H7.O 2H2.O 2H7.O SiF VDE 0.5RD 1H2.O 1H7.O HAL506 3H2.O J H41 PCB22 MAG24 H9.I PCB4 RB2110 L/3L I PRODUCT: Robin 300E Spot TITLE: WIRING DIAGRAM DOCUMENT: Optic Section E5 V 1.0 VERSION: 1 DATE: 8.12.2009 SHEET: 5 OF 9...
  • Page 7 220p 3.3V +24V TL2575HV VCMOS Vin OUT BAT42 BAT42 BC337 1N4007 100n 470uH 100n 330R 680p PRODUCT: Robin 300E Spot 100n BAT42 BAT42 100n TL431 TITLE: RB2002 470M/10V 220p CIRCUIT DIAGRAM DOCUMENT: VERSION: 1 DATE: 8.12.2009 SHEET: 6 OF 9...
  • Page 8 VSS5 VREF VSSA V3-A 100n 100n LPC2132 BAT42 BAT42 3.3V BC337 VCMOS BAT42 BAT42 +24V 100n 330R 220p 10M/16V 680p 100n PRODUCT: Robin 300E Spot 100n TL431 TITLE: RB2091 CIRCUIT DIAGRAM DOCUMENT: VERSION: 1 DATE: 8.12.2009 SHEET: 7 OF 9...
  • Page 9 VSS4 VBAT VSS5 VREF 100n 100n 3.3V VSSA V3-A 100n LPC2132 3.3V BC337 BAT42 BAT42 330R 680p +24V 100n 100n 100n 10M/16V TL431 PRODUCT: Robin 300E Spot TITLE: RB2110 CIRCUIT DIAGRAM DOCUMENT: VERSION: 1 DATE: 8.12.2009 SHEET: 8 OF 9...
  • Page 10 VBAT VSS5 VREF 100n 100n 3.3V VSSA V3-A 100n LPC2132 3.3V BC337 BAT42 BAT42 330R 680p +24V 100n 100n 100n 10M/16V TL431 PRODUCT: Robin 300E Spot TITLE: RB1766 ARK500/2 CIRCUIT DIAGRAM DOCUMENT: VERSION: 1 DATE: 8.12.2009 SHEET: 10 OF 10...
  • Page 11 PRODUCT: Robin 300E Spot http://spares.robe.cz/p/99012567 http://spares.robe.cz/p/99012567 http://spares.robe.cz/p/99012567 http://spares.robe.cz/p/99012567 http://spares.robe.cz/p/99012567 http://spares.robe.cz/p/99012567 http://spares.robe.cz/p/99012567 http://spares.robe.cz/p/99012567 http://spares.robe.cz/p/99012567 http://spares.robe.cz/p/99012567 http://spares.robe.cz/p/99012567 http://spares.robe.cz/p/99012567 http://spares.robe.cz/p/18020006 http://spares.robe.cz/p/99012567 http://spares.robe.cz/p/18020006 http://spares.robe.cz/p/18020006 http://spares.robe.cz/p/18020006 http://spares.robe.cz/p/18020006...
  • Page 12 PRODUCT: Robin 300E Spot TITLE: Covers of head DOCUMENT: 99012541 VERSION: A DATE: 1.12.2009 SHEET: 2 OF 33 http://spares.robe.cz/p/18060014 http://spares.robe.cz/p/18060014 http://spares.robe.cz/p/18060014 http://spares.robe.cz/p/18060014 http://spares.robe.cz/p/18060014 http://spares.robe.cz/p/18060014 http://spares.robe.cz/p/18060014 http://spares.robe.cz/p/18060014...
  • Page 13 PRODUCT: Robin 300E Spot TITLE: Covers of base DOCUMENT: 99012543 VERSION: A DATE: 1.12.2009 SHEET: 3 OF 33...
  • Page 14 PRODUCT: Robin 300E Spot http://spares.robe.cz/p/18010016 http://spares.robe.cz/p/18010016 http://spares.robe.cz/p/18010016 http://spares.robe.cz/p/18010016 http://spares.robe.cz/p/18010016 http://spares.robe.cz/p/18010016 http://spares.robe.cz/p/18010016 http://spares.robe.cz/p/18010016 http://spares.robe.cz/p/18010016 http://spares.robe.cz/p/18010016 http://spares.robe.cz/p/18010016 TITLE: Assembly of head http://spares.robe.cz/p/18050011 http://spares.robe.cz/p/18050011 http://spares.robe.cz/p/18050011 http://spares.robe.cz/p/18050011 http://spares.robe.cz/p/18050011...
  • Page 15 PRODUCT: Robin 300E Spot TITLE: Module of cooling - offtake DOCUMENT: 99012486 VERSION: A DATE: 1.12.2009 SHEET: 5 OF 33...
  • Page 16 PRODUCT: Robin 300E Spot http://spares.robe.cz/p/17050245 http://spares.robe.cz/p/17050245 http://spares.robe.cz/p/17050245 http://spares.robe.cz/p/17050245 http://spares.robe.cz/p/17050245 http://spares.robe.cz/p/17050245 http://spares.robe.cz/p/17050245 http://spares.robe.cz/p/17050245 http://spares.robe.cz/p/17050245 http://spares.robe.cz/p/17050245 http://spares.robe.cz/p/17050245 http://spares.robe.cz/p/17050245 TITLE: Holder of source of light http://spares.robe.cz/p/17050245 DOCUMENT: 99012535 http://spares.robe.cz/p/19040111...
  • Page 17 PRODUCT: Robin 300E Spot TITLE: Source of light - exploded DOCUMENT: 99012492 VERSION: A DATE: 1.12.2009 SHEET: 7 OF 33...
  • Page 18 PRODUCT: Robin 300E Spot TITLE: Bearing of reflector DOCUMENT: 99012535 VERSION: A DATE: 1.12.2009 SHEET: 8 OF 33...
  • Page 19 PRODUCT: Robin 300E Spot TITLE: Holder of reflector - exploded http://spares.robe.cz/p/18010016 http://spares.robe.cz/p/18050011 http://spares.robe.cz/p/11013011 http://spares.robe.cz/p/17040512 http://spares.robe.cz/p/18010016 http://spares.robe.cz/p/18050011 http://spares.robe.cz/p/11013011 http://spares.robe.cz/p/17040512 http://spares.robe.cz/p/18010016 http://spares.robe.cz/p/18050011 http://spares.robe.cz/p/11013011 http://spares.robe.cz/p/17040512 http://spares.robe.cz/p/18010016 http://spares.robe.cz/p/18050011 http://spares.robe.cz/p/11013011...
  • Page 20 PRODUCT: Robin 300E Spot http://spares.robe.cz/p/18010143 http://spares.robe.cz/p/18010143 TITLE: Holder of lamelle http://spares.robe.cz/p/18010143 http://spares.robe.cz/p/18010143 http://spares.robe.cz/p/18010143 http://spares.robe.cz/p/18010143 http://spares.robe.cz/p/18010143 http://spares.robe.cz/p/18010143 http://spares.robe.cz/p/14060205 http://spares.robe.cz/p/14060205 http://spares.robe.cz/p/18010143 http://spares.robe.cz/p/14060205 http://spares.robe.cz/p/18010143 http://spares.robe.cz/p/14060205 http://spares.robe.cz/p/18010143 http://spares.robe.cz/p/14060205...
  • Page 21 PRODUCT: Robin 300E Spot TITLE: CMY mixing system - assembly DOCUMENT: 99012535 VERSION: A DATE: 1.12.2009 SHEET: 11 OF 33...
  • Page 22 PRODUCT: Robin 300E Spot http://spares.robe.cz/p/18010007 http://spares.robe.cz/p/18010007 http://spares.robe.cz/p/18010007 http://spares.robe.cz/p/18010007 http://spares.robe.cz/p/18010007 http://spares.robe.cz/p/18010007 http://spares.robe.cz/p/18010007 http://spares.robe.cz/p/18010007 http://spares.robe.cz/p/18010007 http://spares.robe.cz/p/18010007 http://spares.robe.cz/p/18010007 TITLE: CMY mixing system - exploded http://spares.robe.cz/p/18050006 http://spares.robe.cz/p/18050006 http://spares.robe.cz/p/18050006 http://spares.robe.cz/p/18050006...
  • Page 23 PRODUCT: Robin 300E Spot TITLE: Wheel Color 7+1 assembled DOCUMENT: 99012470 http://spares.robe.cz/p/99011884 http://spares.robe.cz/p/99011884 http://spares.robe.cz/p/99011884 http://spares.robe.cz/p/99011884 http://spares.robe.cz/p/99011884 http://spares.robe.cz/p/99011884 http://spares.robe.cz/p/99011884 http://spares.robe.cz/p/99011884 VERSION: A DATE: 1.12.2009 SHEET: 13 OF 33 http://spares.robe.cz/p/99011884...
  • Page 24 PRODUCT: Robin 300E Spot TITLE: Colouring module A DOCUMENT: 99012469 VERSION: A DATE: 1.12.2009 SHEET: 14 OF 33...
  • Page 25 PRODUCT: Robin 300E Spot http://spares.robe.cz/p/17040478 http://spares.robe.cz/p/17040478 http://spares.robe.cz/p/17040478 http://spares.robe.cz/p/17040478 http://spares.robe.cz/p/17040478 http://spares.robe.cz/p/17040478 http://spares.robe.cz/p/17040478 http://spares.robe.cz/p/17040478 TITLE: Lamelle colouring A DOCUMENT: 99012469 VERSION: A DATE: 1.12.2009 SHEET: 15 OF 33 http://spares.robe.cz/p/14070321...
  • Page 26 PRODUCT: Robin 300E Spot http://spares.robe.cz/p/99012475 http://spares.robe.cz/p/99012477 http://spares.robe.cz/p/99012475 http://spares.robe.cz/p/99012475 http://spares.robe.cz/p/99012477 http://spares.robe.cz/p/99012477 http://spares.robe.cz/p/99012475 http://spares.robe.cz/p/99012477 http://spares.robe.cz/p/99012475 http://spares.robe.cz/p/99012477 http://spares.robe.cz/p/99012475 http://spares.robe.cz/p/99012477 http://spares.robe.cz/p/99012475 http://spares.robe.cz/p/99012477 http://spares.robe.cz/p/99012475 http://spares.robe.cz/p/99012477 http://spares.robe.cz/p/99012475 http://spares.robe.cz/p/99012477 http://spares.robe.cz/p/99012475...
  • Page 27 PRODUCT: Robin 300E Spot TITLE: Lamelle colouring B DOCUMENT: 99012469 VERSION: A DATE: 1.12.2009 SHEET: 17 OF 33 http://spares.robe.cz/p/14070322 http://spares.robe.cz/p/14070320 http://spares.robe.cz/p/14070322 http://spares.robe.cz/p/14070320 http://spares.robe.cz/p/14070322 http://spares.robe.cz/p/14070322 http://spares.robe.cz/p/14070320 http://spares.robe.cz/p/14070320...
  • Page 28 PRODUCT: Robin 300E Spot http://spares.robe.cz/p/17040496-01 http://spares.robe.cz/p/17040496-01 http://spares.robe.cz/p/17040496-01 http://spares.robe.cz/p/17040496-01 http://spares.robe.cz/p/17040496-01 http://spares.robe.cz/p/17040496-01 http://spares.robe.cz/p/17040496-01 http://spares.robe.cz/p/17040496-01 http://spares.robe.cz/p/17040496-01 http://spares.robe.cz/p/18050011 http://spares.robe.cz/p/18050011 http://spares.robe.cz/p/18050011 http://spares.robe.cz/p/18050011 http://spares.robe.cz/p/18050011 TITLE: Front module of head http://spares.robe.cz/p/18050011 http://spares.robe.cz/p/18050011...
  • Page 29 PRODUCT: Robin 300E Spot TITLE: Module Iris - part 1 DOCUMENT: 99012520 VERSION: A DATE: 1.12.2009 SHEET: 19 OF 33...
  • Page 30 PRODUCT: Robin 300E Spot TITLE: Wheel RG 7+1 assembled DOCUMENT: 99012516 VERSION: A DATE: 1.12.2009 SHEET: 20 OF 33...
  • Page 31 PRODUCT: Robin 300E Spot TITLE: Module Iris - part 2 DOCUMENT: 99012520 VERSION: A DATE: 1.12.2009 SHEET: 21 OF 33...
  • Page 32 PRODUCT: Robin 300E Spot TITLE: Wheel Gobo FG 9+1 assembled DOCUMENT: 99012508 VERSION: A DATE: 1.12.2009 SHEET: 22 OF 33...
  • Page 33 PRODUCT: Robin 300E Spot TITLE: Module of prism and lamelle Frost DOCUMENT: 99012523 VERSION: A DATE: 1.12.2009 SHEET: 23 OF 33...
  • Page 34 PRODUCT: Robin 300E Spot TITLE: Prism and lamelle Frost - exploded DOCUMENT: 99012523 VERSION: A DATE: 1.12.2009 SHEET: 24 OF 33...
  • Page 35 PRODUCT: Robin 300E Spot TITLE: Module of optic http://spares.robe.cz/p/99012527 http://spares.robe.cz/p/99012527 http://spares.robe.cz/p/99012527 http://spares.robe.cz/p/99012527 DOCUMENT: 99012530 http://spares.robe.cz/p/99012527 http://spares.robe.cz/p/99012527 http://spares.robe.cz/p/99012527 http://spares.robe.cz/p/99012527 http://spares.robe.cz/p/99012527 http://spares.robe.cz/p/99012527 http://spares.robe.cz/p/99012527 http://spares.robe.cz/p/99012527 http://spares.robe.cz/p/99012527 http://spares.robe.cz/p/99012529...
  • Page 36 PRODUCT: Robin 300E Spot TITLE: Holder of Focus and Zoom DOCUMENT: 99012535 VERSION: A DATE: 1.12.2009 SHEET: 26 OF 33...
  • Page 37 PRODUCT: Robin 300E Spot TITLE: Holder of objective DOCUMENT: 99012524 VERSION: A DATE: 1.12.2009 SHEET: 27 OF 33...
  • Page 38 PRODUCT: Robin 300E Spot TITLE: Arm of head - part 1 DOCUMENT: 99012540 VERSION: A DATE: 1.12.2009 SHEET: 28 OF 33...
  • Page 39 PRODUCT: Robin 300E Spot TITLE: Arm of head - part 2 DOCUMENT: 99012540 VERSION: A DATE: 1.12.2009 SHEET: 29 OF 33...
  • Page 40 PRODUCT: Robin 300E Spot TITLE: Arm of axe "Y" DOCUMENT: 99012504 VERSION: A DATE: 1.12.2009 SHEET: 30 OF 33...
  • Page 41 PRODUCT: Robin 300E Spot http://spares.robe.cz/p/12050050 http://spares.robe.cz/p/12050050 http://spares.robe.cz/p/12050050 http://spares.robe.cz/p/12050050 http://spares.robe.cz/p/12050050 http://spares.robe.cz/p/12050050 http://spares.robe.cz/p/12050050 http://spares.robe.cz/p/12050050 http://spares.robe.cz/p/12050050 http://spares.robe.cz/p/12050050 http://spares.robe.cz/p/12050050 http://spares.robe.cz/p/12050050 TITLE: Axe "X" http://spares.robe.cz/p/17030005 http://spares.robe.cz/p/17030005 http://spares.robe.cz/p/17030005 http://spares.robe.cz/p/17030005 http://spares.robe.cz/p/17030005...
  • Page 42 PRODUCT: Robin 300E Spot http://spares.robe.cz/p/18050010 http://spares.robe.cz/p/18050010 http://spares.robe.cz/p/18050010 http://spares.robe.cz/p/18050010 http://spares.robe.cz/p/18050010 http://spares.robe.cz/p/18050010 http://spares.robe.cz/p/18050010 http://spares.robe.cz/p/18050010 TITLE: Front and rear panel of base http://spares.robe.cz/p/18050010 http://spares.robe.cz/p/18050010 http://spares.robe.cz/p/18050010 http://spares.robe.cz/p/18050010 http://spares.robe.cz/p/18050010 DOCUMENT: 99012543 http://spares.robe.cz/p/18010037...
  • Page 43 PRODUCT: Robin 300E Spot http://spares.robe.cz/p/18050004 http://spares.robe.cz/p/18050004 http://spares.robe.cz/p/18050004 http://spares.robe.cz/p/18050004 http://spares.robe.cz/p/18050004 http://spares.robe.cz/p/18050004 TITLE: Base http://spares.robe.cz/p/18050004 http://spares.robe.cz/p/18050004 http://spares.robe.cz/p/18050004 http://spares.robe.cz/p/18050004 http://spares.robe.cz/p/18050004 http://spares.robe.cz/p/18050004 http://spares.robe.cz/p/18050004 DOCUMENT: 99012541 http://spares.robe.cz/p/18020008 http://spares.robe.cz/p/18020008...
  • Page 44 Rear Page Sheet 1 of 33 Page/Position Part number Part description Device 17030517 Grip ROHDE RG-1P.140.84 Robin 300E Spot 18010010 Screw crosswise cup countersink M4x14 Robin 300E Spot 18010118 Screw crosswise cup countersink M4x10 Robin 300E Spot 18010221 Screw socket head cap M8x30...
  • Page 45 Rear Page Sheet 2 of 33 Page/Position Part number Part description Device 17030412 Dry zip 8,5x80 Robin 300E Spot 17030413 Dry zip 8,5x95 Robin 300E Spot 17030512 Air filter 100x100 with dry zip Robin 300E Spot 18060014 Screw 6 DZUS...
  • Page 46 Rear Page Sheet 3 of 33 Page/Position Part number Part description Device 11013033 Cover of base Robin 300E Spot 13050428 Spade terminal NVC 68-M4 Robin 300E Spot 18010159 Screw countersink inside hexagon M4x10 Robin 300E Spot 18040001 Nut M4 black...
  • Page 47 Rear Page Sheet 4 of 33 Page/Position Part number Part description Device 11012972 Shielding of optics Robin 300E Spot 11013023 Holder of cable Robin 300E Spot 18010008 Screw crosswise cup headed M3x8 Robin 300E Spot 18010016 Screw crosswise cup headed M3x6...
  • Page 48 Rear Page Sheet 5 of 33 Page/Position Part number Part description Device 11013010 Holder for gasket of fan Robin 300E Spot 11013125 Shielding of fan Robin 300E Spot 16030037 Fan KD1208 PTBX 80x80x25 12V Robin 300E Spot 17030518 Gasket of fan A L102...
  • Page 49 Rear Page Sheet 6 of 33 Page/Position Part number Part description Device 11013024 Holder of wires Robin 300E Spot 11013025 Cover of wires Robin 300E Spot 11013099 Closing of mounting hole B Robin 300E Spot 17040511 Limitation of plastic with nuts M3...
  • Page 50 Rear Page Sheet 7 of 33 Page/Position Part number Part description Device 12050472 Holder of spring Robin 300E Spot 13050113 Terminal end 7600-02/04 Robin 300E Spot 13051026 Lamp socket PGJ28 Robin 300E Spot 17030027 Spring compressive 1,25xD8,5xL40 Robin 300E Spot 17040510 Holder of socket "B"...
  • Page 51 Rear Page Sheet 8 of 33 Page/Position Part number Part description Device 13030550-01 PCB RB2091 Robin 300E Spot 18010016 Screw crosswise cup headed M3x6 Robin 300E Spot 18010032 Screw crosswise cup countersink M3x8 Robin 300E Spot 18010145 Screw crosswise cup headed M3x5...
  • Page 52 Rear Page Sheet 9 of 33 Page/Position Part number Part description Device 11013011 Holder of reflector Robin 300E Spot 11013014 Feed of reflector "A" Robin 300E Spot 11013015 Feed of reflector "B" Robin 300E Spot 11013016 Holder of PCB MAG...
  • Page 53 Rear Page Sheet 10 of 33 Page/Position Part number Part description Device 10/1 11012142 Holder of mag Robin 300E Spot 10/2 11013012 Shielding of module Robin 300E Spot 10/3 12010132 Spacer D6xL8,5 M3 Robin 300E Spot 10/4 12020005 Spacer D8xd4xL8...
  • Page 54 Rear Page Sheet 11 of 33 Page/Position Part number Part description Device 11/1 99012469 CMY mixing system "CS 300" Robin 300E Spot...
  • Page 55 Rear Page Sheet 12 of 33 Page/Position Part number Part description Device 12/1 12020101 Spacer D6xd3,8xL6,5 Robin 300E Spot 12/2 12040081-01 Toothwheel RPP3-03 D24 Robin 300E Spot 12/3 13030575 PCB RB2110L /L Robin 300E Spot 12/4 14060112 Antireflex glass 31x62...
  • Page 56 Rear Page Sheet 13 of 33 Page/Position Part number Part description Device 13/1 12050440 Holder of magnet Robin 300E Spot 13/2 17030015 Magnet D4/2,4mm Robin 300E Spot 13/3 18010001 Screw crosswise cup headed M2x4 Robin 300E Spot 13/4 99011881 Slot&Lock gobo-LW 640 "deep red" (trapezoid) with magnet...
  • Page 57 Rear Page Sheet 14 of 33 Page/Position Part number Part description Device 14/1 11012940-01 Holder ball-bearing Robin 300E Spot 14/2 11012943 Holder of steppermotor Robin 300E Spot 14/3 11012947 Covering of cable Robin 300E Spot 14/4 11013026 Underlay of wheel...
  • Page 58 Rear Page Sheet 15 of 33 Page/Position Part number Part description Device 15/1 11012944 Support of CMY filters Robin 300E Spot 15/2 14070319 Dichro shaped magenta SL4763 BS Robin 300E Spot 15/3 14070321 Dichro shaped yellow LW520 BS Robin 300E Spot...
  • Page 59 Rear Page Sheet 16 of 33 Page/Position Part number Part description Device 16/1 11012940 Holder ball-bearing Robin 300E Spot 16/2 11012943 Holder of steppermotor Robin 300E Spot 16/3 12010118 Spacer D6xL37,5 2xM3 Robin 300E Spot 16/4 12010147 Spacer hexagon SW5,5 DII L10 M3...
  • Page 60 Rear Page Sheet 17 of 33 Page/Position Part number Part description Device 17/1 11012944 Support of CMY filters Robin 300E Spot 17/2 14070320 Dichro shaped dark cyan SW 530 BS Robin 300E Spot 17/3 14070322 Dichro shaped convers TC 32LT BS...
  • Page 61 Rear Page Sheet 18 of 33 Page/Position Part number Part description Device 18/1 17040496-01 Brace with Rubber H profile and nuts "Dzus" Robin 300E Spot 18/2 17050222 Anchorage of module of optic Robin 300E Spot 18/3 18010008 Screw crosswise cup headed M3x8...
  • Page 62 Rear Page Sheet 19 of 33 Page/Position Part number Part description Device 19/1 12020005 Spacer D8xd4xL8 Robin 300E Spot 19/2 12040092 Toothwheel D40 z=38 m1 Robin 300E Spot 19/3 12050129 Spacer ball bearing 608 L12,8 Robin 300E Spot 19/4 12050447...
  • Page 63 Rear Page Sheet 20 of 33 Page/Position Part number Part description Device 20/1 12050446 Spacer of magnet 4,6 Robin 300E Spot 20/2 17030015 Magnet D4/2,4mm Robin 300E Spot 20/3 17040490 Wheel RG 7+1 with flange Robin 300E Spot 20/4 18010007 Screw f.
  • Page 64 Rear Page Sheet 21 of 33 Page/Position Part number Part description Device 21/1 11010174 Washer of PCB-MAG Robin 300E Spot 21/2 11012956 Pull of Iris Robin 300E Spot 21/3 12020036 Spacer D8xd4xL14 Robin 300E Spot 21/4 12020056 Spacer D8xd4xL3 Robin 300E Spot...
  • Page 65 Rear Page Sheet 22 of 33 Page/Position Part number Part description Device 22/1 17040488 Wheel Gobo FG 9+1 with flange Robin 300E Spot 22/2 18010007 Screw f. adjusting hexagon socket M4x5 Robin 300E Spot 22/3 99012499 Slot&Lock gobo 27/0,5-Ocelot (large)
  • Page 66 Rear Page Sheet 23 of 33 Page/Position Part number Part description Device 23/1 12010056 Spacer D6xL28/2xM3 Robin 300E Spot 23/2 12020827 Spacer D6xd3,8xL3 Robin 300E Spot 23/3 12050447 Holder damper device D32 II Robin 300E Spot 23/4 12050449 Wheel-belt D29,6 for ball bearing...
  • Page 67 Rear Page Sheet 24 of 33 Page/Position Part number Part description Device 24/1 11020154-01 Yoke Prism without Prism lens Robin 300E Spot 24/2 12050343 Holder of magnet "C" Robin 300E Spot 24/3 12050466 Plastic D3 L6 Robin 300E Spot 24/4 14050013 Prism lens D47/3F 10°...
  • Page 68 Rear Page Sheet 25 of 33 Page/Position Part number Part description Device 25/1 11010174 Washer of PCB-MAG Robin 300E Spot 25/2 12040087 Toothwheel RPP3-03 D16,3 II Robin 300E Spot 25/3 12050356 Pivot L12,5 Robin 300E Spot 25/4 12050404 Roller d10 D18 L5,5...
  • Page 69 Rear Page Sheet 26 of 33 Page/Position Part number Part description Device 26/1 11012965 Grounding of belt Robin 300E Spot 26/2 11012966 Holder of Focus Robin 300E Spot 26/3 11012967 Holder of Zoom Robin 300E Spot 26/4 12050345 Interposer bar of optics...
  • Page 70 Rear Page Sheet 27 of 33 Page/Position Part number Part description Device 27/1 11012971 Locking of optics D95 Robin 300E Spot 27/2 14040095 Lens D95 R-108,0 R211,6 Antireflex Robin 300E Spot 27/3 14040096 Lens D95 R-211,6 R0 Antireflex Robin 300E Spot...
  • Page 71 Rear Page Sheet 28 of 33 Page/Position Part number Part description Device 28/1 11012985 Toothwheel D58 Robin 300E Spot 28/2 11012988 Arm of head "B" Robin 300E Spot 28/3 11012994 Stiffener of arm Robin 300E Spot 28/4 11012995 Stiffener of arm - adjusting...
  • Page 72 Rear Page Sheet 29 of 33 Page/Position Part number Part description Device 29/1 11012987 Arm of head "A" Robin 300E Spot 29/2 11012994 Stiffener of arm Robin 300E Spot 29/3 11012995 Stiffener of arm - adjusting Robin 300E Spot 29/4...
  • Page 73 Rear Page Sheet 30 of 33 Page/Position Part number Part description Device 30/1 11010174 Washer of PCB-MAG Robin 300E Spot 30/2 11012991 Stiffener of axe Y Robin 300E Spot 30/3 11012992 Locking lever of axe Y Robin 300E Spot 30/4...
  • Page 74 Rear Page Sheet 31 of 33 Page/Position Part number Part description Device 31/1 11010044-01 Movement-stop "X" Robin 300E Spot 31/2 11010490 Spring ring D46 d32 Tl 0,32 Robin 300E Spot 31/3 11012977 Locking lever of axe X Robin 300E Spot...
  • Page 75 PCB EZ1051 Robin 300E Spot 32/3 13030171 PCB Connectors EZ 1071 Robin 300E Spot 32/4 13030551-01 PCB Display ROBE QVGA 01 V1.10 Robin 300E Spot 32/5 13050047 Switch main H 8650 10A/250V Robin 300E Spot 32/6 13050070 Cable grommet F0705SR-6P1...
  • Page 76 Rear Page Sheet 33 of 33 Page/Position Part number Part description Device 33/1 12010079 Spacer D6xL20 M3 Robin 300E Spot 33/2 12010147 Spacer hexagon SW5,5 DII L10 M3 Robin 300E Spot 33/3 12020098 Spacer D8xd4xL6 Robin 300E Spot 33/4 13020038...
