Version1.2


Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Robin 600 PureWhite and is the answer not in the manual?

Questions and answers

Related Manuals for Robe Robin 600 PureWhite

Summary of Contents for Robe Robin 600 PureWhite

  • Page 1 Version1.2...

  • Page 2: Table Of Contents

    3.4 DMX-5 connection ....................0 3.5 Ethernet connection .................... 4. Control menu map ......................13 5. Robin 600 PureWhite (Warm White/Cool White) - DMX chart ........16 5.1 LED zone order ......................17 6. Control menu ....................... 18 6.1 Tab " Address" ......................9 6.2 Tab "Information"......................

  • Page 3: Safety Instructions

    Please consider that damages caused by manual modifications to the device are not subject to warranty. The Robin 600 PureWhite was designed for indoor use and it is intended for professional application only. It is not for household use.
  • Page 4 or dust. Air vents and slots in the fixture´s head and base are provided for ventilation, to ensure reliable operation of the device and to protect it from overheating. Do not block the LEDs array with any object when the fixture is under operation. The openings should never be covered with cloth or other materials, and never must be blocked.

  • Page 5: Fixture Exterior View

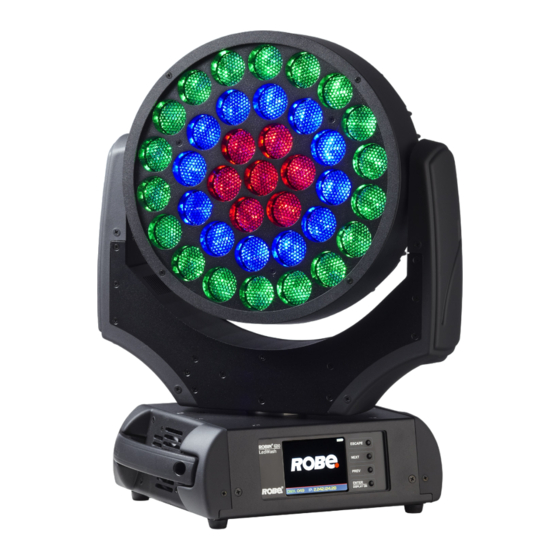

    2. Fixture exterior view 1 - Lens array 2 - Carrying handle 3 - QVGA touch screen 4 - Control buttons 5 - Base 6 - Head cover 7 - Fan 8 - Yoke 9 - Ethernet input 10 - 3-pin DMX OUT 11 - 3-pin DMX IN 12 - 5-pin DMX OUT 13 - 5-pin DMX IN...

  • Page 6: Installation

    3.1 Connection to the mains For protection from electric shock, the fixture must be earthed! The Robin 600 PureWhite is equipped with auto-switching power supply that automatically adjusts to any 50/60Hz AC power source from 100-240 Volts. Install a suitable plug on the power cord, note that the cores in the power cord are coloured according to the following table.

  • Page 7: Installing The Top Hat

    3.2 Installing the top hat Switch off the fixture before top hat installation 1. Go to the fixture menu and set reduced tilt movement (Personality --> Pan/Tilt Setting--> Tilt Movement Range --> reduced). 2.Unscrew the four fastening screws (3) which securing flange (4) to the head (5) and install new flange. Keep its right position- the cutouts (A) in the flange must look towards the arms.

  • Page 8: Rigging The Fixture

    3.3 Rigging the fixture The installation of the fixture has to be built and constructed in a way that it can hold 10 times the weight for 1 hour without any harming deformation. The installation must always be secured with a secondary safety attachment, e.g. an appropriate catch net. This secondary safety attachment must be constructed in a way that no part of the installation can fall down if the main attachment fails.
  • Page 9 Securing the fixture via one safety wire Securing the fixture via two safety wires 1-Fixture 2-Omega holder 3-Clamp 4-Trust 5-Safety chain...

  • Page 10: Dmx-5 Connection

    3.4 DMX-512 connection The fixture is equipped with both 3-pin and 5-pin XLR sockets for DMX input and output.The sockets are wired in parallel. Only use a shielded twisted-pair cable designed for RS-485 and 3-pin or 5-pin XLR-plugs and connectors in order to connect the controller with the fixture or one fixture with another.

  • Page 11: Ethernet Connection

    3.5 Ethernet connection The fixtures on a data link are connected to the Ethernet with ArtNet communication protocol.The control soft- ware running on your PC (or light console) has to support Art-Net protocol. Art-Net communication protocol is a 10 Base T Ethernet protocol based on the TCP/IP.Its purpose is to allow transfer of large amounts of DMX 512 data over a wide area using standard network technology.
  • Page 12 Ethernet / DMX operation Options “Art2DMX” has to be selected from the “Ethernet Mode” menu on the first fixture (connected to the Ethernet) in the fixture chain,next fixtures have standard DMX setting. Connect the Ethernet-input of the first fixture in the data chain with the network. Connect the DMX output of this fixture with the input of the next fixture until all fixtures are connected to the DMX chain.
  • Page 13 4. Control menu map Default settings=Bold print Level 1 Level 2 Level 3 Level 4 Level 5 Level 6 Addressing Settings DMX Address 00-55 Ethernet Settings Ethernet Mode Disable ArtNet gMAI gMA Art2DMX IP Address/NetMask Default IP Address Custom IP Address Net Mask ArtNet Universe 0-55...
  • Page 14 Level 1 Level 2 Level 3 Level 4 Level 5 Level 6 Off, On Tilt Reverse Pan/Tilt Feedback Off, On Pan/Tilt mode Time Speed Stand. Tilt Movemement range Reduc. Microphone Sen- -10-0 sitivity Blackout Settings Blackout During M.C. Off, On Off, On Blackout while: Pan/Tilt moving...
  • Page 15 Level 1 Level 2 Level 3 Level 4 Level 5 Level 6 Dimmer Fine (0-255) Step Time (0-25.5s) Step 00 Pan (0-255) Dimmer Fine (0-255) Fade Time (0-25.5s) Service Adjust DMX Values 0-55 Dimmer Fine 0-55 Calibrations Calibrate Effects 0-55 Tilt 0-55 Load Default Calibra-...

  • Page 16: Robin 600 Purewhite (Warm White/Cool White) - Dmx Chart

    5. Robin 600 PureWhite (Warm White/Cool White) - DMX chart Version 1.0 Mode/Channel Value Function Type of control Pan (8 bit) 0-55 Pan movement by 450° proportional Pan Fine (16 bit) 0-55 Fine control of pan movement proportional Tilt (8bit) 0-55 Tilt movement by 300°...

  • Page 17: Led Zone Order

    Mode/Channel Value Function Type of control LED zone effects No function step 8-5 All LEDs ON step Speed of the following effects can be controlled by the Shutter/Strobe channel (DMX values of 96-127) Effect  6-3 step Effect  4-3 step Effect 3 3-39...

  • Page 18: Control Menu

    6. Control menu The Robin 600 PureWhite Light is equipped with the QVGA Robe touch screen with battery backup which allows to set the fixture´s behaviour according to your needs, obtain information on its operation, test its vari- ous parts and lastly program it, if it has to be used in a stand-alone mode.

  • Page 19: Tab " Address

    Touch any part of the screen or press the [ENTER/Display On] button to display the initial screen with the cur- rent stored DMX address: Touch the green arrow at the bottom right corner of the screen or press the [ENTER/Display On] button to enter the "...

  • Page 20: Tab "Information

    Resetable Hours - The item shows the number of the operation hours that the Robin 600 PureWhite has been powered on since the counter was last reset. In order to reset this counter to 0, touch the text box next to the item "Resetable Hours:"...

  • Page 21: Tab "Personality

    6.3 Tab "Personality" User mode - The Robin 600 PureWhite allows you to recall up to 3 user settings. After switching the fixture on for the first time, the User A settings is active. Now all changes made in the “Personality” menu , ”Addressing”...

  • Page 22: Tab "Manual Control

    Test Sequences -Use the menu to run a test/demo sequences without an external controller, which will show you some possibilities of using Robin 600 PureWhite. Dynamic Mode - This mode uses all Robin 600 PureWhite functions including pan/tilt movement and therefore is good for a complete introduction of the fixture.
  • Page 23 Play Program 2 - The option starts user program No. 2. Play Program 3 - The option starts user program No. 3. Edit Program - Use the menu to create or to edit desired program. The Robin 600 PureWhite offers 3 free programs, each up to 100 steps.
  • Page 24 3. Run the Software Uploader program. Select desired COM and then click on the Connect button. (Select COM if the serial port is used or Robe Universal Interface if the USB port is used). If the connection is OK, click on the “Start Uploading button“ to start uploading. It will take several...

  • Page 25: Rdm

    DMX512, the RDM protocol allows a console or dedicated RDM controller to send commands to and receive messages from specific moving lights. RDM allows explicit commands to be sent to a device and responses to be received from it. The list of commands for Robin 600 PureWhite is the following. Parameter ID Discovery command SET command...

  • Page 26: Wireless Dmx Operation

    8. Wireless DMX operation The wireless version of the Robin 600 PureWhite is equipped with the Lumen Radio CRMX module and antenna for receiving DMX signal. CRMX module operates on the 2.4 GHz band. To link the fixture with DMX transmitter.
  • Page 27 LED zone effects Rainbow effect with in both directions with variable speed Zone effects in both directions with variable speed Strobe All LED zones together: Strobe effect with variable speed (0.3 - 20Hz) Random strobe pulse-effect with variable speed Opening/closing pulse effect with variable speed Independent strobe effect with variable speed (0.3 - 20Hz) at LED zone 3 Random strobe and random LED zone effect Dimmer...
  • Page 28 Temperatures Maximum ambient temperature : 45° C Maximum housing temperature 75° C Minimum distances Min. distance from flammable surfaces: 0.5 m Min. distance to lighted object: 1.0 m Total heat dissipation 1330 BTU/h (calculated) Weight (net): 0.6 kg Dimensions (mm) Mounting adapter for one Omega holder...

  • Page 29: Maintenance And Cleaning

    Accessories Omega holder (No.99010420)........2 pcs Optional accessories Top hat (No.10980101) Mounting adapter for one Omega holder (No.10980100) 11. Maintenance and cleaning It is absolutely essential that the fixture is kept clean and that dust, dirt and smoke-fluid residues must not build up on or within the fixture.

  • Page 30: Photometric Diagrams

    12. Photometric diagrams...
