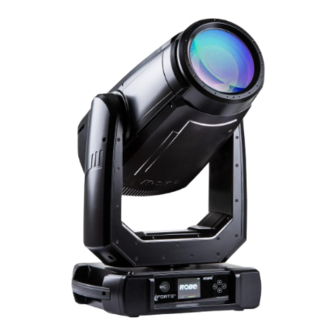

Robe iForte User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
QR code for user manual
Version 2.3
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iForte and is the answer not in the manual?

Questions and answers

Related Manuals for Robe iForte

Summary of Contents for Robe iForte

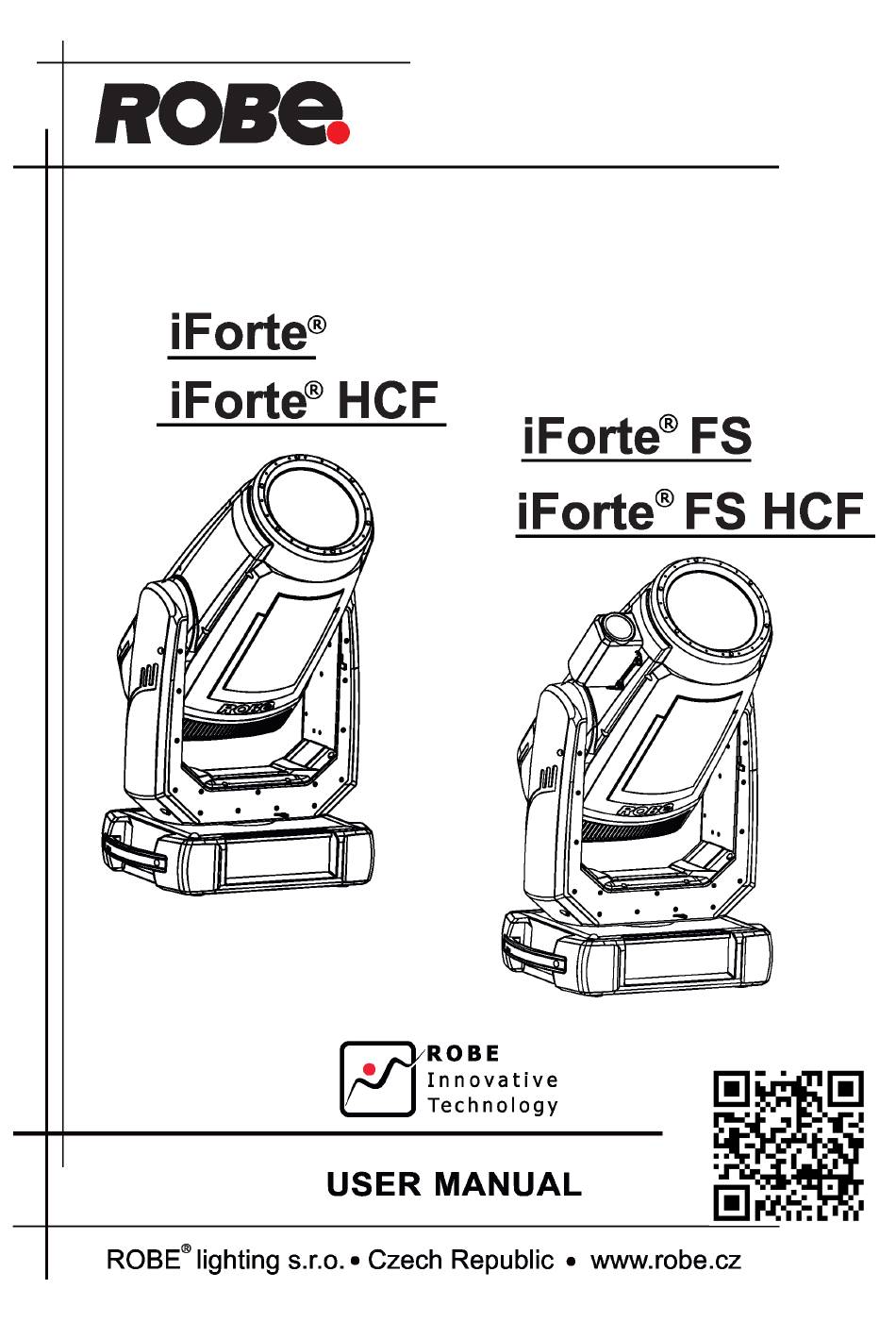

  • Page 1 QR code for user manual Version 2.3...

  • Page 2: Table Of Contents

    Robin iForte / iForte HCF Robin iForte FS / iForte FS HCF Table of contents 1. Safety instructions and operating determinations ............3 2. Fixture exterior view ...................... 6 3. Installation........................7 3.1 Connection to the mains .................... 8 3.2 Replacing the frosts ....................8 3.3 Replacing rotating gobos ..................

  • Page 3: Safety Instructions And Operating Determinations

    Please consider that damages caused by manual modifications to the device are not subject to warranty. The Robin iForte was designed for outdoor use and it is intended for professional application only. It is not for household use.
  • Page 4 (or other light source) lights directly to the front glass cover, even when the fixture is not in operation ! Please use only an original ROBE packaging (paper box, loader case or foam shell) for transporting the device, otherwise potential damage of the device during its transport will not subject to warranty.
  • Page 5 The product (covers and cables) must not be exposed to a high frequency electromagnetic field higher than 3V/m. Immunity of the equipment is designed according to the standard EN 55035 Electromagnetic compatibility of multimedia equipment - Immunity requirements. Emission of the equipment complies with the standard EN55032 Electromagnetic compatibility of multimedia equipment –...

  • Page 6: Fixture Exterior View

    6 - Tilt lock 7 - Camera* * iForte FS only The head has to be locked for transportation - the tilt lock latch (6) and the pan lock latch (5) have to be in the locked positions. To unlock the head, move these latches to unlock position before operating the fixture.

  • Page 7: Installation

    Fixtures must be installed by a qualified electrician in accordance with all national and local electrical and construction codes and regulations. The Robin iForte´s panel connectors are dust and water protected according to IP 65 by mating with related cable connectors. They cannot stay disconnected outdoor.

  • Page 8: Connection To The Mains

    (residual-current circuit breaker)! Wiring and connection work must be carried out by a qualified electrician. The Robin iForte is equipped with auto-switching power supply that automatically adjusts to any 50-60Hz AC power source from 100-240 Volts. Mains cable powerCON TRUE1 In/open ended is enclosed to the fixture.
  • Page 9 IMPORTANT: The fixture head should be uncovered as short time as possible (about 1-2 hours depending on air humidity) otherwise silica gel in the small boxes in the fixture head may become damp. If you have removed head cover and you need to interrupt your work for long time (hours, days), we recommend to place the head cover on the head and fasten it provisionally by means of two screws, next possibility is un- screwing small boxes with silica gel from the head and put it to a sealed container with limited access of air (e.g.

  • Page 10: Replacing Rotating Gobos

    3.3 Replacing rotating gobos Unplug the fixture from mains before replacing the gobos! Do not replace gobos in a damp environment (e.g. rain, snowfall)! Do not remove fixture covers in smoky or particularly dirty environment (e.g. with fog machines). 1. Close a light output of the fixture and allow the fixture to cool about 60 minutes. 2.
  • Page 11 The Robe gobo has a small position point (5) at its edge which has to aim at the position point (4) on the gobo holder (3). Insert the spring lock (1) to secure correct gobo position in the gobo holder (3).

  • Page 12: Rigging The Fixture

    3.4 Rigging the fixture A structure intended for installation of the fixture(s) must safely hold weight of the fixture(s) placed on it. The structure has to be certificated to the purpose. The fixture (fixtures) must be installed in accordance with national and local electrical and construction codes and regulations.
  • Page 13 Omega holders points Truss installation 1. Bolt each clamp (1) to the omega holder (2) with M12 bolt and lock nut through the hole in the holder. 2. Fasten the omega holders to the bottom of the base by inserting both quick-lock fasteners (3) into the holes of the base and tighten fully clockwise.
  • Page 14 Allowed installation positions of the iForte: Note for open-air installation: if the fixture has to stand on the ground, min. distance of 4" (10cm) between the fixture base and the ground has to be kept.

  • Page 15: Dmx-512 Connection

    3.5 DMX-512 connection The fixture is equipped with 5-pin XLR sockets for DMX input and output. Use a shielded twisted-pair cable designed for RS-485 and 5-pin XLR-plugs and connectors in order to connect the controller with the fixture or one fixture with another. DMX output DMX input XLR mounting sockets (rear view):...

  • Page 16: Ethernet Connection

    The Universe is a single DMX 512 frame of 512 channels. The Robin iForte is equipped with 8-pin RJ- 45 sockets for Ethernet connection. Use a network cable category 5 (with four “twisted” wire pairs) and standard RJ-45 plugs in order to connect the fixture to the network.
  • Page 17 The fixture is equipped with Ethernet Pass through switch which sustains Ethernet integrity, when the fixture has no power, it automatically maintains network connectivity. If you use the Ethernet IN-OUT way for the Ethernet connection, max. 8 fixtures can be connected in the IN-OUT line.

  • Page 18: Wireless Dmx Operation

    3.7 Wireless DMX operation The ROBE wireless DMX/RDM module has full support for wireless communication protocols at entertainment market. Module is based on well known LumenRadio RF technology, with implemented wire interface for con- nection with Robe products. RF output for MCX interface antenna as standard output.

  • Page 19: Checking The Ip65 Integrity Of The Fixture

    4. Checking the IP65 integrity of the fixture. The Robin iForte is IP65 rated lighting fixture which has been designed to be protected against the ingress of dust and pressure water jets from any direction. 1. Smart pressure test - for this test serves the function "Pressure Test" in the tab Service. Unique testing procedure allows you easy testing of the IP65 integrity of the fixture.
  • Page 20 "Enhanced pressure test". For this type of pressure test is needed the Pressure IP Testing Set ROBE (P/N 10980659). Please ask your ROBE distributor for help. The message "Valve Seal Error" means that valve or coil in the valve is defective or there is a connection problem.

  • Page 21: Operating The Fixture At Ambient Temperatures Below 0°C

    150 mbar maximally! 5. Operating the fixture at ambient temperatures below 0°C Design of the iForte/iForte FS allows its operation at ambient temperature up to -50°C, but you have to take some specific into account before operating the fixture. 1.Fixture is not in Standby mode.

  • Page 22: Standby Mode

    6. Standby mode The fixture can be switched to Standby mode by means of web interface REAP or DMX command (channel Power/Special functions, DMX values 6-7). Standby mode can be cancelled by means of web interface REAP, DMX command (channel Power/Special functions, DMX values 8-9) or by switching the fixture off and on.

  • Page 23: Remotely Controllable Functions

    7. Remotely controllable functions Effect wheel The wheel rotates in both directions with variable speed which creates wide spectrum of graphic effects. Gobo wheels The fixture includes two rotating gobo wheels with 6 glass gobos each, rotating in both directions, indexable, replaceable "SLOT&LOCK”...
  • Page 24 Pan/Tilt Fast pan/tilt movement due to built-in electronic motion stabilizer (EMS). The electronic motion stabilizer ensures precise position of the fixture´s head during its movement and reduces its swinging when the truss shakes. Pan /Tilt movement range: 0-540°/0-270°. Colour wheel 1 This wheel contains five dichroic filters + open.

  • Page 25: Control Menu Map

    8. Control menu map Default settings=Bold print Level 1 Level 2 Level 3 Level 4 Level 5 Level 6 Addressing DMX Address 001-512 DMX Presets Mode 1 Mode 2 Ethernet Settings Ethernet Mode Disable ArtNet gMAI gMA2 sACN Ethernet To DMX Off, On IP Address/Net Mask Default IP Address...
  • Page 26 Level 1 Level 2 Level 3 Level 4 Level 5 Level 6 Module P Module DL Wireless Product IDs Mac Address RDM UID RDM Label LED Module info First Module Assembly Actual Module Info Assembly History Intensity History LED Modules History View Logs Fixture Errors Fixture States...
  • Page 27 Level 1 Level 2 Level 3 Level 4 Level 5 Level 6 Screen Settings Display Intensity 1-10 Screen Saver Delay Off-10min. Touchscreen Lock Off-10min. Recalibrate Touchscreen Display Orientation Normal Inverted Auto Temperature Unit °C,°F Fan Settings Fan mode Auto High Quiet Super Quiet Quiet - Blackout Fan...
  • Page 28 Level 1 Level 2 Level 3 Level 4 Level 5 Level 6 Step Time 0-25,5 sec. Service Pressure Test Adjust DMX Values 0-255 Dimmer Fine 0-255 Calibrations Calibrate Effects 0-255 Tilt 0-255 Effect Wheel 0-255 Rot. Gobo Wheel 1 0-255 R.

  • Page 29: Control Menu

    The menu page displays icons for each function that you can perform from the screen. After switching the fixture on, the screen shows the screen with the ROBE logo. Type of used LED engine in the fixture is displayed on the top line of the screen.
  • Page 30 HP - High Performance Engine for maximum light output and optimal colour characteristics. HCF - High Colour Fidelity Engine for the best light quality and colour reproduction. The type of used LED engine is displayed if the fixture is disconnected from power as well. The green icon at the top right corner of the screen indicates the level of the display battery charging.
  • Page 31 REAP. Locking/unlocking the screen. To lock the screen, display the screen with ROBE logo, touch the [ESCAPE] button and slide your finger clockwise in a circular track of 360° across buttons [ESCAPE] --> [NEXT] --> [ENTER/Display On] -->[PREV]--> [ESCAPE].

  • Page 32: Tab " Address

    Resettable Hours - The item shows the number of the operation hours that the Robin iForte has been powered on since the counter was last reset. In order to reset this counter to 0, touch the text box next to the item "Resettable Hours:"...
  • Page 33 RAINS Status - The menu item gives you information about environment in the fixture. RAINS (Robe Automatic Ingress Neutralization System) manages humidity, temperature and pressure control using an active monitoring system to automatically remove any moisture detected within the fixture and provides permanent monitoring to ensure peak performance of the fixture.
  • Page 34 Examples of RAINS statuses: Dry desiccants in the fixture arm Desiccants in the fixture arm partially saturated with water Desiccants in the fixture arm fully saturated with water Silica gel desiccants in the fixture arm are saturated with water and should be replaced. After replacing them, reset the item MAX WET.
  • Page 35 Serial Number/ Device UID - a serial number of the LEDs module/RDM UID of the fixture. Installation Date/Time - a date/time of the first installation of the LEDs module to a some iForte device. Intensity - an original intensity of the LEDs module in percentages (100%).

  • Page 36: Tab "Personality

    9.3 Tab "Personality" User mode - The Robin iForte allows you to recall two user settings. After switching the fixture on for the first time, the User A settings is active. Now all changes made in the “Personality” menu , ”Addressing” menu and the “Music Trigger“...
  • Page 37 Pan Min. Value - Minimum pan movement value. Pan Max. Value - Maximum pan movement value. Tilt Min. Value - Minimum tilt movement value. Tilt Max. Value - Maximum pan movement value. If receiving DMX values are out of set limits, the fixture will not respond to them. Example: Pan Min.

  • Page 38: Tab "Manual Control

    -Use the menu to run a test/demo sequences without an external controller, which will show you some possibilities of using Robin iForte. Dynamic Mode - This mode uses all Robin iForte functions including pan/tilt movement and therefore is good for a complete introduction of the fixture.

  • Page 39: Tab "Service

    Play Program 1 - The option starts user program No.1. Play Program 2 - The option starts user program No. 2. Edit Program - Use the menu to create or to edit desired program. The Robin iForte offers 2 free programs, each up to 80 steps.
  • Page 40 R. Gobo Index 2/3 - a fine movement of the rotating gobo 3 (value range: 0-255) R. Gobo Index 2/4 - a fine movement of the rotating gobo 4 (value range: 0-255) R. Gobo Index 2/5 - a fine movement of the rotating gobo 5 (value range: 0-255) R.
  • Page 41 Frost 2/1 channel 82 channel 84 Frost 2/2 channel 83 channel 85 Fr. Shutters rot. channel 84 channel 86 Fr. Shutter 1 Move channel 85 channel 87 Fr. Shutter 1 swiveling. channel 86 channel 88 Fr. Shutter 2 Move channel 87 channel 89 Fr.
  • Page 42 If you use the Robe Universal Interface, connect a USB port of your computer with the Robe Universal Interface by means of the USB cable and DMX input of the fixture with the DMX output of the Robe Universal Interface via a DMX cable.
  • Page 43 Another way, how to update software in the fixtures (especially large installation of fixtures) is to use the ROBE Uploader. It is a software for automatized software update of Robe fixtures. It takes advantage of RDM support). For more information please see https://www.robe.cz/robe-uploader/.

  • Page 44: Rdm

    DEVICE_LABEL SENSOR_DEFINITION SENSOR_VALUE DISPLAY_INVERT DISPLAY_LEVEL PAN_INVERT TILT_INVERT DEVICE_RESET DMX_PERSONALITY DMX_PERSONALITY_DESCRIPTION STATUS_MESSAGES STATUS_ID_DESCRIPTION RDM model ID for the Robin iForte is 0x012c. If you need to set RDMnet scope, use the ROBE Ethernet Acces Portal (REAP) and menu Personality--> -->Ethernet Settings.

  • Page 45: Error And Information Messages

    11. Error and information messages Error in the fixture is signalled by the yellow warning icon at the bottom line of the screen: Touch the warning icon or press the [ESCAPE] button to display error messages. List of error and information messages: Pan Error 1 Mechanical end of the pan track was not detected.
  • Page 46 Frost Error 1 Impact to the mechanical end of the frost 1 track (frost 2 track) was not detected. Frost Error 4 Incorrect detection of a frost 1 track (frost 2 track). Impact to a mechanical obstruction was detected within running of the frost.
  • Page 47 Fr. Shutter 2 Error 1 Impact to the mechanical end of the framing shutter 2 was not detected. Fr. Shutter 2 Error 4 Incorrect detection of the framing shutter 2. Impact to a mechanical obstruction was detected within running of the framing shutter 2.
  • Page 48 Base Fan 1 Bad/ Base Fan 2 Bad One or both fans in the fixture base are disconnected from their control PCB or are faulty and has to be replaced. . Iris Fan 1 Bad/ Iris Fan 2 Bad The iris fan 1 (fan 2) which cools the iris and framing shutters in the fixture head is disconnected from its control PCB or is faulty and should be replaced.

  • Page 50: Nfc

    The NFC point is situated on the front panel of fixture´s base. Download and install the ROBE COM from Google Play (for Android 5.0 and higher) or App Store (for iOS 12.0 and higher) to your mobile phone. Your mobile phone has to support NFC.

  • Page 51: Maintenance

    Another maintenance and service operations should be carried out by trained technician only. If you need any spare parts, please order genuine parts from your local Robe distributor. In case of problem with smooth running of CMY colour mixing system, lubricate sliding bars of CMY flags. As lubricant we recommend ÄRONIX silicone oil 500 cSt - it is a medium viscosity lubricant, release agent, high...
  • Page 52 Replacing the battery. Before replacing the battery, disconnect the fixture from mains. 1. Using a flat-blade screwdriver, unscrew (anti-clockwise) the metal cover of battery compartment from rear panel of the base. 2. Loosen (anti-clockwise) the battery holder cap. 3. Remove the exhausted battery from the battery holder. 4.

  • Page 53: Fixture Watertight Covers And Torques Of Covers Screws

    14.1 Fixture watertight covers and torques of covers screws Keep values of torques as stated on pictures below otherwise leakage issues can occur! Run the procedure Pressure Test (Service Pressure Test) after replacing --> any watertight cover! Bottom base cover 16 x hex socket head screw M4x14 Screws must be tightened Tightening torque*: 2.5 Nm...
  • Page 54 Head covers (on both sides of the head) Screws must be tightened 6 x hex socket head screw M5x16 in the order 1-->6 Tightening torque*: 2.5 Nm * Tighten all screws in two steps: Step 1 - use tightening torque 0.5Nm (pre-tightening) Step 2- use tightening torque 2.5Nm (final tightening) Carefully check the gasket for signs of deformities or damages and if it is correctly placed before screwing head covers back.
  • Page 55 Yoke cover Screws must be tightened 8 x hex socket head screw M4x8 in the order 1-->8, Tightening torque*: 2.5 Nm * Tighten all screws in two steps: Step 1 - use tightening torque 0.5Nm (pre-tightening) Step 2- use tightening torque 2.5Nm (final tightening) Carefully check the gasket for signs of deformities or damages and if it is correctly placed before screwing the yoke cover back.

  • Page 56: Torques Of Pan/Tilt Motors Screws

    14.2 Torques of Pan/Tilt motors screws In case of change of pan motor or tilt motor or pan/tilt control PCB (RB 3138 in the fixture yoke), you have to run the procedure Calibrate Pan/Tilt Reset in the tab "Service" (tab Service--> Calibrations --> Calibrate Pan/ Tilt Reset).

  • Page 57: Changing The Led Light Source

    14.3 Changing the LED light source The Robin Forte allows you to change the LED light source and this way keep a high performance of the fixture. Unplug the fixture from mains before replacing LED light source! Do not change LED light source in a damp environment (e.g. rain, snowfall)! To change the LED light source.
  • Page 58 Fixture head without the LED light source. Important: Carefully check the gasket (7) for signs of deformities and if it is correctly placed in the chassis of the head before inserting the new LED light source. The new LED light source includes PCB with LEDs and heat sink. Handle with care. Do not touch LEDs with bare hands.
  • Page 59 5. Carefully insert the new LED light source to the head. Keep the correct orientation of the LED light source towards the head chassis as shown on the picture below. The NFC module on LEDs PCB has to be ori- ented towards the sign "NFC"...
  • Page 60 6. Tighten the four fastening screws M6x25 (4) in the order 1-->4. Use tightening torque 2.5 Nm. Do the tight- ening of screws in two steps, in the first step use tightening torque 0.5 Nm and in the second step 2.5 Nm. Tighten the four outside fastening screws M5x14 (5) in the order 1-->4.

  • Page 61: Checking And Replacing The Silica Gel Desiccants

    14.4 Checking and replacing the silica gel desiccants The silica gel desiccants are used for humidity indication in the fixture. Dry silica gel has an orange colour, if it is saturated with water, its colour changes to dark grey. If most of silica gel changed colour to dark grey, it has to be replaced.
  • Page 62 Each silica gel box is fastened in the fixture by means of two screws. Example: Dry silica gel Silica gel saturated with water The silica gel desiccants in the fixture head should be checked (and alternatively replaced) at removing head covers, e.g.

  • Page 63: Disposing Of The Product

    In case that silica gel in the fixture arm is fully saturated with water, the warning message " Too Much Humidity in Device" will appear on the fixture display (yellow warning icon) and also in the Robe Ethernet Access Portal (Logs screen).

  • Page 64: Obtaining Information About The Led Light Source By Mobile Phone

    15. Obtaining information about the LED light source by mobile phone You can read information about the LED light source by means of the mobile application ROBE COM. The LED light source has to be outside of the fixture. Download and install the application ROBE COM from Google Play (for Android 5.0 and higher) or App Store (for iOS 12.0 and higher) to your mobile phone.
  • Page 65 If NFC connection is OK, the screen with RDM UID of the LED light source will appear. When the following screen will appear, touch the button CANCEL. Touch the found LED module ("Robin iForte LED module") and than touch "LED engine" to read information about found LED module.

  • Page 66: Robe Ethernet Access Portal (Reap)

    You do not need change any IP settings on the fixture, there is no need to set the fixture into Art-Net mode. Type the IP address of the iForte to your web browser, e.g. http://2.247.136.26, enter the user name: robe and the password: 2479, the Status screen of the iForte will appear.
  • Page 67 10 minutes of its operating, after closing fixture dimmer etc. RAINS (Robe Automatic Ingress Neutralization System) manages humidity, temperature and pressure control using an active monitoring system to automatically remove any moisture detected within the fixture and provides permanent monitoring to ensure peak performance of the fixture.
  • Page 68 Desiccants saturated with water Device status ready means, that all fixture resets are OK and the fixture is ready for operation. It does not assess state of desiccants or result of pressure test! Desiccants fully saturated with water Silica gel desiccants in the fixture arm should be replaced. After replacing them, reset MAX WET resettable bar chart.
  • Page 69 The Personality screen allows you to set fixture behaviour and run a pressure test. The icon allows you to change values in a corresponding table. Example for Pan/Tilt settings: The table "Pressure test " with green button Start test allows you to run a procedure which checks IP65 in- tegrity of the fixture.
  • Page 70 Examples of pressure test messages: Pressure test is 10 minutes delayed due to fixture cooling Pressure test is running Pressure test passed Pressure test failed The Logs screen displays operating information of the fixture which have been saved. The icon offers you two options: "Download log file"...
  • Page 71 The option Logs filter allows you to select desired group of recorded errors and recorded operating values. Expanded menu Logs filter If the option "all must pass" is checked, only logs which contain all selected errors will be displayed. Menu "Sorting filter pass" --> option "single groups" means that logs which contain at least one selected error will be displayed.
  • Page 72 You can select range of temperature, humidity and pressure in desired time interval. Tab Pressure measurements shows history of pressure tests. If you have two and more iFortes, the Discovery screen allows you to show all connected iFortes in network. Click on the blue button Discover and fixtures connected in the network will be displayed.
  • Page 73 If the option Move devices with warning to top is checked, fixtures with some error will be displayed on the top of fixture list. The option Columns selection allows you to check desired items which will be displayed in columns. Max. 6 items can be selected.

  • Page 74: Technical Specifications

    17. Technical Specifications Electrical Power supply: electronic auto-ranging Input voltage range: 100-240V, 50-60Hz Fuse: T 15 A Max. power consumption: 1250W (Power factor 0.98) Optic Light source: TE™ 1.000W iSE HP White LED Engine (Transferable) Colour temperature: 6700K CRI: 70/80/90, remotely selectable Max.
  • Page 75 Strobe effect with variable speed (0.3 - 20Hz) Dimmer Smooth dimmer from 0 - 100 % (8 or 16 bit (internal 18 bit)) Camera (Robin iForte FS only) Type: XNZ-L6320A Max. resolution: 1920 x 1080 16 : 9 Full HD (1080p) resolution support 32x optical zoom, 32x digital zoom Streaming: H.264, H265, MJPEG codec, Multiple streaming...
  • Page 76 Pan/tilt-lock mechanism Connection DMX data in/out: 2 x IP65 Locking 5-pin XLR connector Seetronic Ethernet: 2 x IP65 RJ45 connector Seetronic (iForte) 1 x IP65 RJ45 connector Seetronic (iForte FS) Power: IP65 power connector Seetronic Camera:1 x IP65 RJ45 connector Seetronic (iForte FS)
  • Page 77 Dimensions (mm) - iForte Dimensions (mm) - iForte FS...
  • Page 78 1 x Omega adaptor CL-regular 2 pcs in box (P/N 10980033) 1 x Power cable including powerCON TRUE1 In connector Optional accessories Frost 0,5° (exchange) for Robin T2 Profile/iForte (P/N 10980581) Frost 1° (exchange) for Robin T2 Profile/iForte (P/N 10980564) Frost 5° (exchange) for Robin T2 Profile/iForte (P/N 10980565) Frost 10°...

  • Page 79: Changelog

    RDMnet, intensity drop signalization and QR code on display December 7, 2023 Copyright © 2022-2023 Robe Lighting - All rights reserved All Specifications subject to change without notice Made in CZECH REPUBLIC by ROBE LIGHTING s.r.o. Palackeho 416/20 CZ 75701 Valasske Mezirici...
  • Page 80 DMX protocol iForte®/iForte® FS - DMX protocol Version: 1.4 Mode 1 - Standard 16 bit, Mode 2 -enhanced gobo control Quick overview of default DMX values for each channel Mode/Channel Default Function DMX Value Pan Fine Tilt Tilt fine Pan/Tilt speed , Pan/Tilt time...
  • Page 81 DMX protocol Mode/Channel Default Function DMX Value Focus - fine Framing shutters module rotation Framing shutter 1- movement Framing shutter 1- swivelling Framing shutter 2- movement Framing shutter 2- swivelling Framing shutter 3 movement Framing shutter 3- swivelling Framing shutter 4 movement Framing shutter 4- swivelling Shutter/ strobe Dimmer intensity...
  • Page 82 DMX protocol Mode/Channel Type of Function Value control Graphic display: On 20-24 step Graphic display: Off 25-29 step Quiet mode: Fans On at blackout 30-31 step 32-33 Quiet mode: Fans Off at blackout step Pressure test: On 34-35 step ( fixture does not respond to DMX during the test except values 36-37 (Pressure test Off)) Pressure test: Off 36-37...
  • Page 83 DMX protocol Mode/Channel Type of Function Value control LED frequency selection Factory display menu setting: 600Hz Select PWM output frequency of LEDs. Selected PWM frequency can be fine adjusted in 127 steps up/down around selected PWM frequency on the channel below. Corresponding menu item (Frequency Setup) is temporarily overridden.
  • Page 84 DMX protocol Mode/Channel Type of Function Value control To set a drop of max. light intensity (compared to original light intensity), stay at DMX value for at least 3 sec. and shutter must be closed at least 3 sec. (Channel „Shutter/ Strobe” 52/54 must be at range: 0-31 DMX).
  • Page 85 DMX protocol Mode/Channel Type of Function Value control 166-177 Filter CRI 80 step 178-189 Filter CRI 90 step 190 - 215 Forwards rainbow effect from fast to slow proportional 216 - 217 No rotation step 218 - 243 Backwards rainbow effect from slow to fast proportional 244 - 249 Reserved 250 - 255 Auto random colour selection from fast to slow...
  • Page 86 DMX protocol Mode/Channel Type of Function Value control Filter 118 (Light Blue) 43-44 step 45-46 Filter 119 (Dark Blue) step 47-48 Filter 120 (Deep Blue) step 49-50 Filter 121 (Filter Green) step Filter 128 (Bright Pink) 51-52 step Filter 131 (Marine Blue) 53-54 step Filter 132 (Medium Blue)
  • Page 87 DMX protocol Mode/Channel Type of Function Value control 0-255 Speed of CMY+CTO movement from max. to min. (0=default) proportional 0-255 Speed of Rot. Gobos selection from max. to min. proportional CMY+CTO+Colour wheels time Function is off (0=default) step 1 - 255 Time of CMY, CTO and Colour wheels movement (0.1sec-->25.5sec.) proportional Framing shutters/Zoom/Focus/Iris/Frost/Prism time...
  • Page 88 DMX protocol Mode/Channel Type of Function Value control 27-31 Gobo 6 step Rotation - set rotation on channel 27 32-35 Gobo 1 step 36-40 Gobo 2 step 41-44 Gobo 3 step 45-49 Gobo 4 step 50-54 Gobo 5 step 55-59 Gobo 6 step Shaking gobos from slow to fast...
  • Page 89 DMX protocol Mode/Channel Type of Function Value control Gobo 1 proportional Gobo 2 proportional Gobo 3 proportional Gobo 4 proportional Gobo 5 proportional Gobo 6 proportional Open/hole proportional Continual positioning Rotation - set rotation on channel 28 Open/hole proportional Gobo 1 proportional Gobo 2 proportional...
  • Page 90 DMX protocol Mode/Channel Type of Function Value control 55-59 Gobo 6 step Shaking gobos from slow to fast Index - set indexing on channel 30 60-71 Gobo 1 proportional 72-83 Gobo 2 proportional 84-95 Gobo 3 proportional 96-106 Gobo 4 proportional 107-118 Gobo 5 proportional...
  • Page 91 DMX protocol Mode/Channel Type of Function Value control Continual positioning Rotation - set rotation on channel 32 Open/hole proportional Gobo 1 proportional Gobo 2 proportional Gobo 3 proportional Gobo 4 proportional Gobo 5 proportional Gobo 6 proportional Open/hole proportional 202 - 222 Forwards gobo wheel rotation from fast to slow proportional 223 - 243 Backwards gobo wheel rotation from slow to fast proportional...
  • Page 92 DMX protocol Mode/Channel Type of Function Value control 240 - 247 Macro 15 step 248 - 255 Macro 16 step Prism 1 indexing/rotation Prism 1 indexing - set position on channel 32/34 0 - 255 Prism 1 indexing proportional Prism 1 rotation - set position on channel 32/34 No rotation step 1 - 127...
  • Page 93 DMX protocol Mode/Channel Type of Function Value control Medium Frost 87-136 Medium Frost from 0% to 100% proportional 137-139 100% Medium Frost step 140-149 Pulse closing from slow to fast proportional 150-159 Pulse opening from fast to slow proportional 160-169 Ramping from fast to slow proportional 170-255 Open step...
  • Page 94 0 - 255 Dimmer intensity from 0% to 100% (0=default) proportional Dimmer intensity - fine 0 - 255 Fine dimming (0=default) proportional Copyright ©2022-2023 Robe Lighting s.r.o. - All rights reserved All Specifications subject to change without notice Page 15...
  • Page 95 Robin iForte/iForte FS - Colours on Virtual Colour Wheel Col. Col. Magenta Yellow Colour name Wheel 1 Wheel 2 Cyan DMX Filter 4 (Medium Bastard Amber) Filter 10 (Medium Yellow) Filter 19 (Fire) Filter 26 (Bright Red) Filter 58 (Lavender)
  • Page 96 Col. Col. Magenta Yellow Colour name Wheel 1 Wheel 2 Cyan DMX Filter 170 (Deep Lavender) Filter 172 (Lagoon Blue) Filter 179 (Chrome Orange) Filter 180 (Dark Lavender) Filter 181 (Congo Blue) Filter 197 (Alice Blue) Filter 201 (Full C.T. Blue) Filter 202 (Half C.T.
