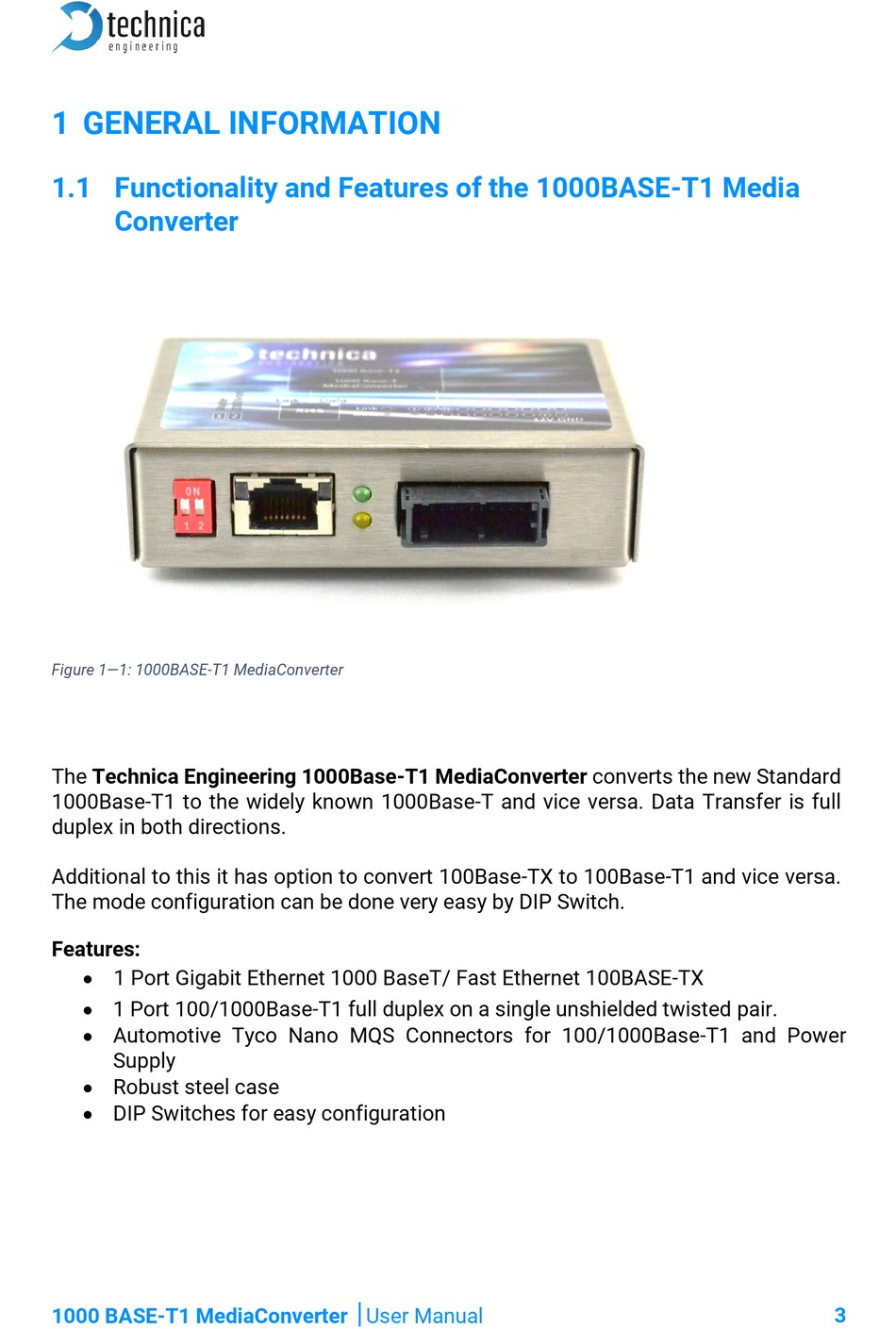

1 GENERAL INFORMATION
1.1 Functionality and Features of the 1000BASE-T1 Media
Converter
Figure 1—2: 1000BASE-T1 MediaConverter
Figure 1—1: 1000BASE-T1 MediaConverter
The Technica Engineering 1000Base-T1 MediaConverter converts the new Standard
1000Base-T1 to the widely known 1000Base-T and vice versa. Data Transfer is full
duplex in both directions.
Additional to this it has option to convert 100Base-TX to 100Base-T1 and vice versa.
The mode configuration can be done very easy by DIP Switch.
Features:
• 1 Port Gigabit Ethernet 1000 BaseT/ Fast Ethernet 100BASE-TX
• 1 Port 100/1000Base-T1 full duplex on a single unshielded twisted pair.
• Automotive Tyco Nano MQS Connectors for 100/1000Base-T1 and Power
Supply
• Robust steel case
• DIP Switches for easy configuration
