- Page 1 Wall Spreader (WS-284) Instruction Manual...
- Page 2 At Proaim, our goal is to ensure 100% Customer Satisfaction in all that we do. We back our sales with a 1 year warranty from the date of purchase and work hard to resolve any problems in the unlikely event one should arise.
- Page 3 Proaim family. By purchasing your Proaim Wall Spreader , you have just joined a host of designers, engineers, machinists, assembly, customer service and office staff that take great pride in all that they do.

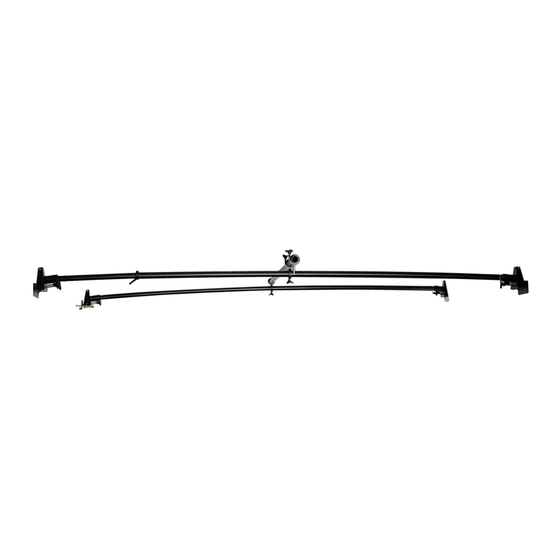

- Page 4 Introduction The Proaim Wall Spreader is a Telescopic Spanning System which is able to withstand heavy loads. It’s a Wall Rigging System for use in vertical, horizontal and diagonal positions. The mounting is very quick and easy, without damaging the walls or pillars.
- Page 5 8 x Tightening Elements Flight Case with Bag Packing Note: If you have purchased (WS-284-01) kit, you will receive the following: 4 x Telescopic Poles 4 x Clamping Rings 1 x Euro 4 x Buffers 2 x Plastic Tubes Adapter...
- Page 6 Assembling NOTE: Tightening Elements are without fasteners. Press the two Elements onto both sides of wall and insert Telescopic Pole into it. During this clamping process, a certain upward bow of Pole is specified, after tightening the knobs. Place Tightening Element onto the wall and tighten both the knobs to secure it. ...
- Page 7 NOTE: The Double Clamping Rings connect two crossing Telescopic Poles at any angle that are supposed to support each other laterally. mount Euro Adapter Telescopic Poles secure appropriately with the knob. Finally, attach your compatible Euro-mount accessories (Not Included).
- Page 8 YOUR PROAIM WALL SPREADER ALL DRESSED UP AND READY TO GO! (SHOWN WITH OPTIONAL ACCESSORIES) WARRANTY We offer a one year warranty for our products from the date of purchase. We will repair or replace your product, free of charge, in the event of a defect in materials or craftsmanship obtained during normal use or handling based on the user manual.
