PROAIM ST-EQZR-00 Instruction Manual

2-axis equalizer for flycam flowline & camera gimbals
Hide thumbs Also See for ST-EQZR-00:

Advertisement

Quick Links

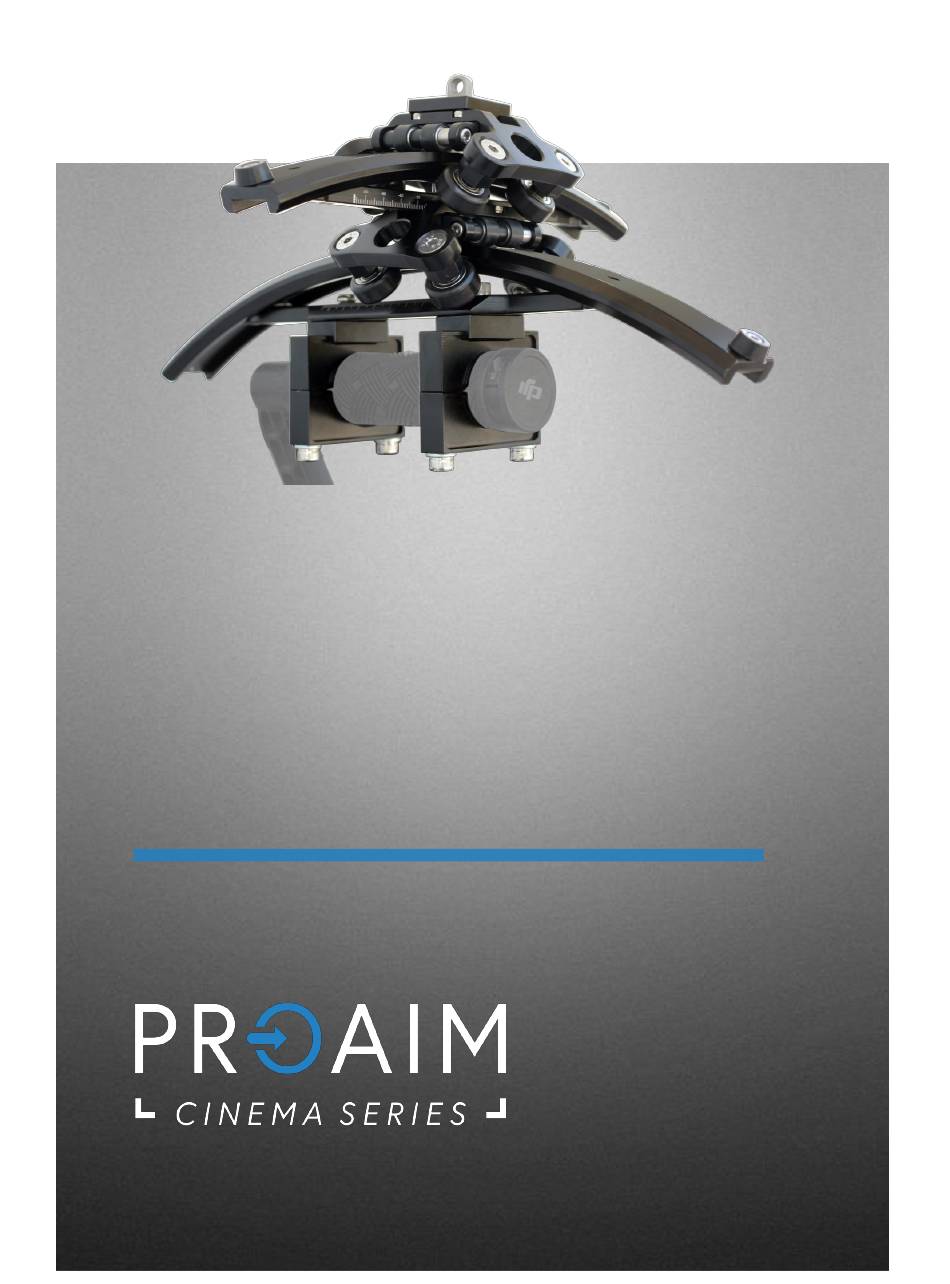

1
2-Axis Equalizer
(
)
ST-EQZR-00
For Flycam Flowline & Camera Gimbals
Instruction Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the ST-EQZR-00 and is the answer not in the manual?

Questions and answers

Summary of Contents for PROAIM ST-EQZR-00

  • Page 1 2-Axis Equalizer ST-EQZR-00 For Flycam Flowline & Camera Gimbals Instruction Manual...
  • Page 2: Table Of Contents

    At Proaim, our goal is to ensure 100% Customer Satisfaction in all that we do. We back our sales with a 1 year warranty from the date of purchase and work hard to resolve any problems in the unlikely event one should arise.
  • Page 3: Foreword

    Proaim family. By purchasing your Proaim 2-Axis Equalizer for Flycam Flowline & Camera Gimbals, you have just joined a host of designers, engineers, machinists, assembly, customer service and office staff that take great pride in all that they do.
  • Page 4: Introduction

    Introduction Proaim Equalizer 2-Axis Anti-Vibration Mount is the perfect companion for operators using a Flycam Flowline or Easyrig with motorized gimbal stabilizers including the DJI Ronin® and Freefly MōVI®. It is made to eliminate the motion coming from the Flowline cord while walking or running. It stabilizes around two axis, roll and tilt;...
  • Page 5: Safety Hints

    Safety Hints ATTENTION: PLEASE READ THIS BEFORE USING TO PREVENT SERIOUS DAMAGE TO THE GEAR! BE HIGHLY VIGILANT OF STOPPERS Make sure that end-stoppers on both the sliders are appropriately tightened to avoid any slip-off. DO NOT FORGET TO SECURE THE EQUIPMENT The Hook must be carefully locked with Loop on Rail System, while setting-up with Flycam Flowline or Easyrig.
  • Page 6  Mount this part on Handle Bar Grip and fix it with provided screws.  Now again fix this part on the big Slider. After fixing, it will look as shown in image.  Then take small Slider and Rail System. Join both of these together via the provided screws, as shown.
  • Page 7  Loosen and remove one of the rubber end-stoppers from big Slider. Insert the above joined small Slider setup onto big Slider.  Tighten back the rubber end-stopper on big Slider to secure the Rail System.  Now loosen and remove one of the rubber end-stoppers from small Slider. Insert Rail System with Loop onto the Slider and tighten back the stopper to secure it.
  • Page 8  Connect the provided Hook properly with Loop on Rail System. Assembly with Top Handle Grip The Top Handle Grip works well with DJI Ronin/M/MX and DJI RONIN 2 (R2) Gimbals. NOTE: If you wish to change your Gimbal from Freefly MoVI to DJI Ronin, then change Handle Grip System by removing the bottom part with index markings.
  • Page 9 To Change Adapter Rings 28mm NOTE: There are 2 sizes of Adapter Rings provided with this gear – 25mm & 28mm. You can very easily change Adapter Rings from Grips as per requirement. Therefore, the grip can clamp on to 22mm, 25mm, 28mm or 30mm tubes.
  • Page 10 To Increase Height of Handle Grips NOTE: There are 4 Height Risers provided with this gear. You can very easily increase the height of Grips as per requirement.  Take Handle Bar Grip, loosen all the 4 screws to remove Tube Clamps. Then attach Height Risers with Clamps.
  • Page 11: Warranty

    YOUR 2-AXIS EQUALIZER ALL DRESSED UP AND READY TO GO! WARRANTY We offer a one year warranty for our products from the date of purchase. We will repair or replace your product, free of charge, in the event of a defect in materials or craftsmanship obtained during normal use or handling based on the user manual.
