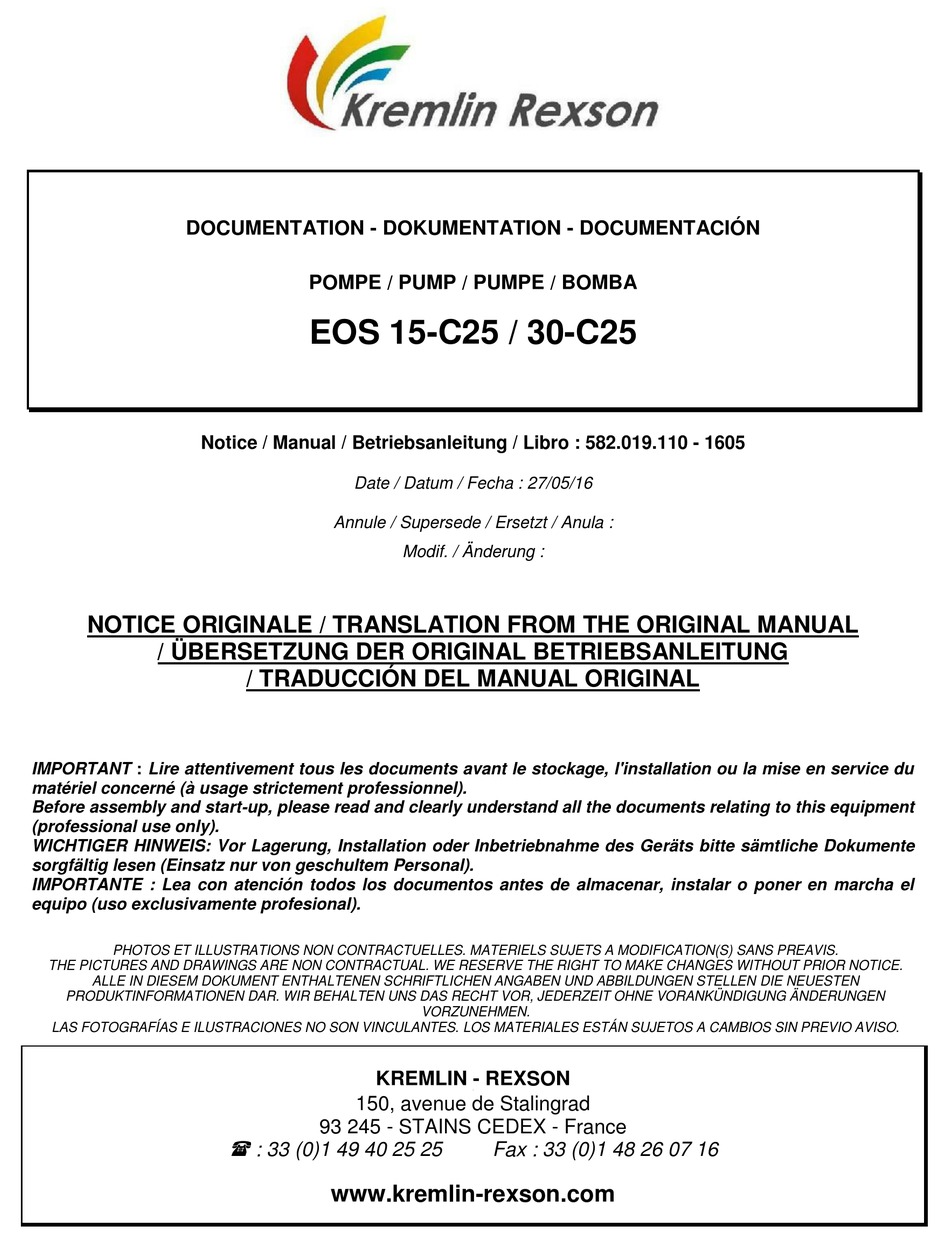

DOCUMENTATION - DOKUMENTATION - DOCUMENTACIÓN
Notice / Manual / Betriebsanleitung / Libro : 582.019.110 - 1605
NOTICE ORIGINALE / TRANSLATION FROM THE ORIGINAL MANUAL
/ ÜBERSETZUNG DER ORIGINAL BETRIEBSANLEITUNG
IMPORTANT : Lire attentivement tous les documents avant le stockage, l'installation ou la mise en service du
matériel concerné (à usage strictement professionnel).
Before assembly and start-up, please read and clearly understand all the documents relating to this equipment
(professional use only).
WICHTIGER HINWEIS: Vor Lagerung, Installation oder Inbetriebnahme des Geräts bitte sämtliche Dokumente
sorgfältig lesen (Einsatz nur von geschultem Personal).
IMPORTANTE : Lea con atención todos los documentos antes de almacenar, instalar o poner en marcha el
equipo (uso exclusivamente profesional).
PHOTOS ET ILLUSTRATIONS NON CONTRACTUELLES. MATERIELS SUJETS A MODIFICATION(S) SANS PREAVIS.
THE PICTURES AND DRAWINGS ARE NON CONTRACTUAL. WE RESERVE THE RIGHT TO MAKE CHANGES WITHOUT PRIOR NOTICE.
ALLE IN DIESEM DOKUMENT ENTHALTENEN SCHRIFTLICHEN ANGABEN UND ABBILDUNGEN STELLEN DIE NEUESTEN
PRODUKTINFORMATIONEN DAR. WIR BEHALTEN UNS DAS RECHT VOR, JEDERZEIT OHNE VORANKÜNDIGUNG ÄNDERUNGEN
LAS FOTOGRAFÍAS E ILUSTRACIONES NO SON VINCULANTES. LOS MATERIALES ESTÁN SUJETOS A CAMBIOS SIN PREVIO AVISO.

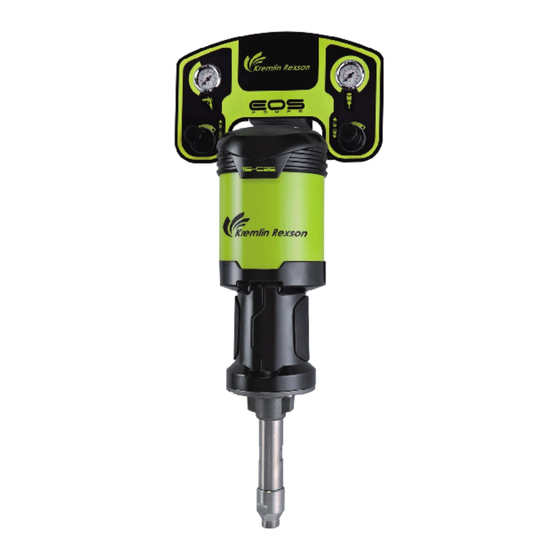

POMPE / PUMP / PUMPE / BOMBA
EOS 15-C25 / 30-C25
Date / Datum / Fecha : 27/05/16
Annule / Supersede / Ersetzt / Anula :
Modif. / Änderung :
/ TRADUCCIÓN DEL MANUAL ORIGINAL
KREMLIN - REXSON
150, avenue de Stalingrad
93 245 - STAINS CEDEX - France
: 33 (0)1 49 40 25 25
www.kremlin-rexson.com
VORZUNEHMEN.
l
Fax : 33 (0)1 48 26 07 16
