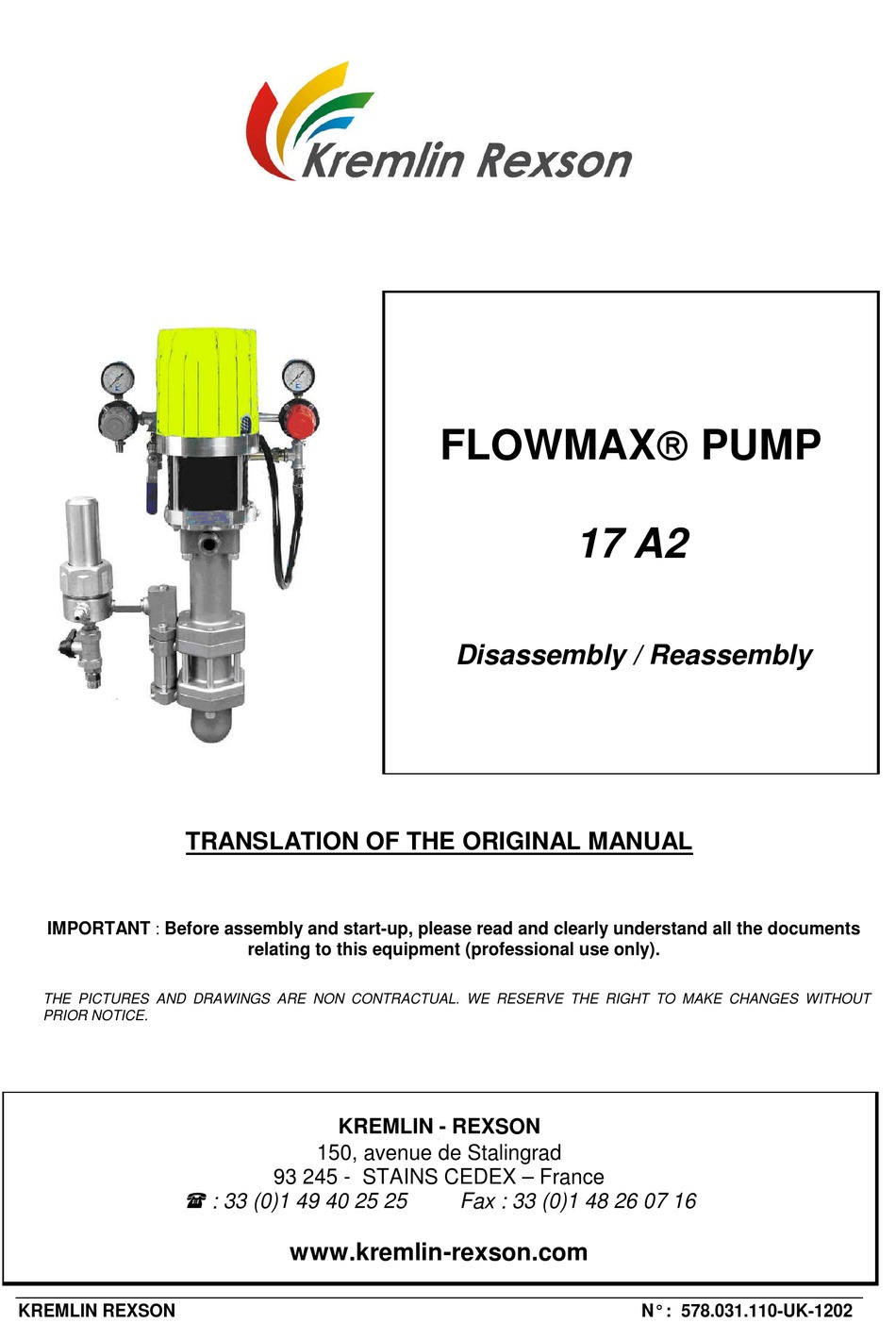

Kremlin-Rexson FLOWMAX 17 A2 Disassembly/Reassembly

FLOWMAX PUMP

17 A2

Disassembly / Reassembly

TRANSLATION OF THE ORIGINAL MANUAL

IMPORTANT

Before assembly and start-up, please read and clearly understand all the documents

relating to this equipment (professional use only).

THE PICTURES AND DRAWINGS ARE NON CONTRACTUAL. WE RESERVE THE RIGHT TO MAKE CHANGES WITHOUT

PRIOR NOTICE.

KREMLIN - REXSON

150, avenue de Stalingrad

93 245 - STAINS CEDEX – France

 : 33 (0)1 49 40 25 25

Fax : 33 (0)1 48 26 07 16

www.kremlin-rexson.com

KREMLIN REXSON

N° : 578.031.110-UK-1202

Table of Contents

Need help?

Do you have a question about the FLOWMAX 17 A2 and is the answer not in the manual?

Page 1 THE PICTURES AND DRAWINGS ARE NON CONTRACTUAL. WE RESERVE THE RIGHT TO MAKE CHANGES WITHOUT PRIOR NOTICE. KREMLIN - REXSON 150, avenue de Stalingrad 93 245 - STAINS CEDEX – France  : 33 (0)1 49 40 25 25 Fax : 33 (0)1 48 26 07 16 www.kremlin-rexson.com KREMLIN REXSON N° : 578.031.110-UK-1202...
Page 2 The pump is manufactured under the ATEX agreement and can not be modified. KREMLIN REXSON will not be held responsible for any failure to comply with that instruction. Guards (air motor cover, coupling shields, housings …) have been designed for safe use of the equipment.
Page 3 Caution : Before tightening the nut (14), - Place the rod (12) into piston (11). - Place the piston (11) into the upper part of the cylinder (10). - Tighten the nut (14) holding the rod (12). KREMLIN REXSON - 2 - N° : 578.031.110-UK-1202...
Page 4 Under normal operating and servicing conditions, with standard filled material not including foreign matters or chemically aggressive, the average working life can be estimated as : 1 million strokes for the tightness seals. 10 millions strokes for the bellows. KREMLIN REXSON - 3 - N° : 578.031.110-UK-1202...
Page 5 "TECHNILUB" grease (10 ml) 560.440.101 Medium strength - Aneorobic Pipe Sealant - Similar as Loctite 577 Low strength - Aneorobic Adhesive - Loctite 222 Screwing torque : 40 Nm / 29.5 ft/lbs KREMLIN REXSON - 4 - N° : 578.031.110-UK-1202...
