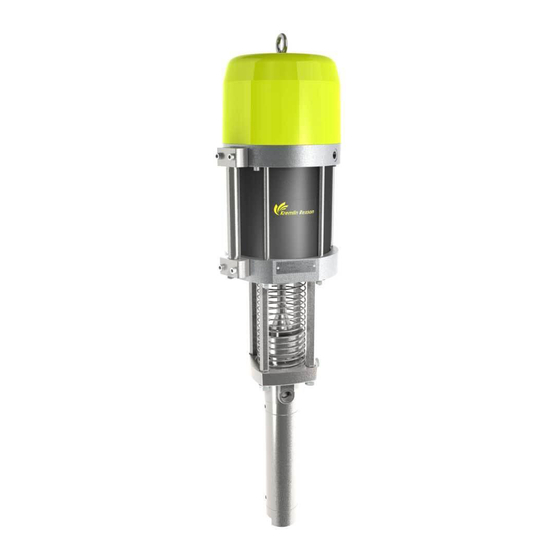

Kremlin-Rexson AIRMIX Operating Principle And Start-Up

Pump & airspray pump with differential air motor

Hide thumbs Also See for AIRMIX:

Download this manual

AIRMIX PUMP

& AIRSPRAY PUMP

WITH DIFFERENTIAL AIR MOTOR

OPERATING PRINCIPLE AND START-UP

TRANSLATION FROM THE ORIGINAL MANUAL

Before assembly and start-up, please read and clearly understand all the

IMPORTANT :

documents relating to the equipment (professional use only).

THE PICTURES AND DRAWINGS ARE NOT CONTRACTUAL. WE RESERVE THE RIGHT TO MAKE CHANGES WITHOUT

PRIOR NOTICE.

KREMLIN - REXSON

150, avenue de Stalingrad

93 245 - STAINS CEDEX – France

 : 33 (0)1 49 40 25 25

Fax : 33 (0)1 48 26 07 16

www.kremlin-rexson.com

KREMLIN REXSON

N° : 578.004.120-UK-1403

Need help?

Do you have a question about the AIRMIX and is the answer not in the manual?

Page 1 AIRMIX PUMP & AIRSPRAY PUMP WITH DIFFERENTIAL AIR MOTOR OPERATING PRINCIPLE AND START-UP TRANSLATION FROM THE ORIGINAL MANUAL Before assembly and start-up, please read and clearly understand all the IMPORTANT : documents relating to the equipment (professional use only). THE PICTURES AND DRAWINGS ARE NOT CONTRACTUAL. WE RESERVE THE RIGHT TO MAKE CHANGES WITHOUT PRIOR NOTICE.
Page 2: Operating Principle
 To adjust the fluid flow rate, turn the pantone 382 colour knob or red knob (D) - (Gauge E).  To adjust the spray air, turn the black knob or grey knob (F) - (Gauge G). KREMLIN REXSON - 1 -...
Page 3 HP fluid section Gauge AIRMIX gun or airspray gun ‘GUN AIR’ regulator T lubricant (125 ml / 4.4 oz) Gauge Air inlet valve Ground (For specific installation, please contact your KREMLIN REXSON representative). KREMLIN REXSON - 2 - N° : 578.004.120-UK-1403...
Page 4 Install a water drop, model 3/8 if it is necessary. Connect all the hoses (air hose and fluid hose) as well as the gun (O). Remove the gun air cap by unscrewing the cap ring and nozzle (only in case of an Airmix® gun). ...
Page 5: Safety Device
AIRMIX pump : A relief-valve (setting : 6.5 bar / 94 psi) is fitted on the pump air motor - thus protecting this one from an overpressure which could damage it.

Intensive
