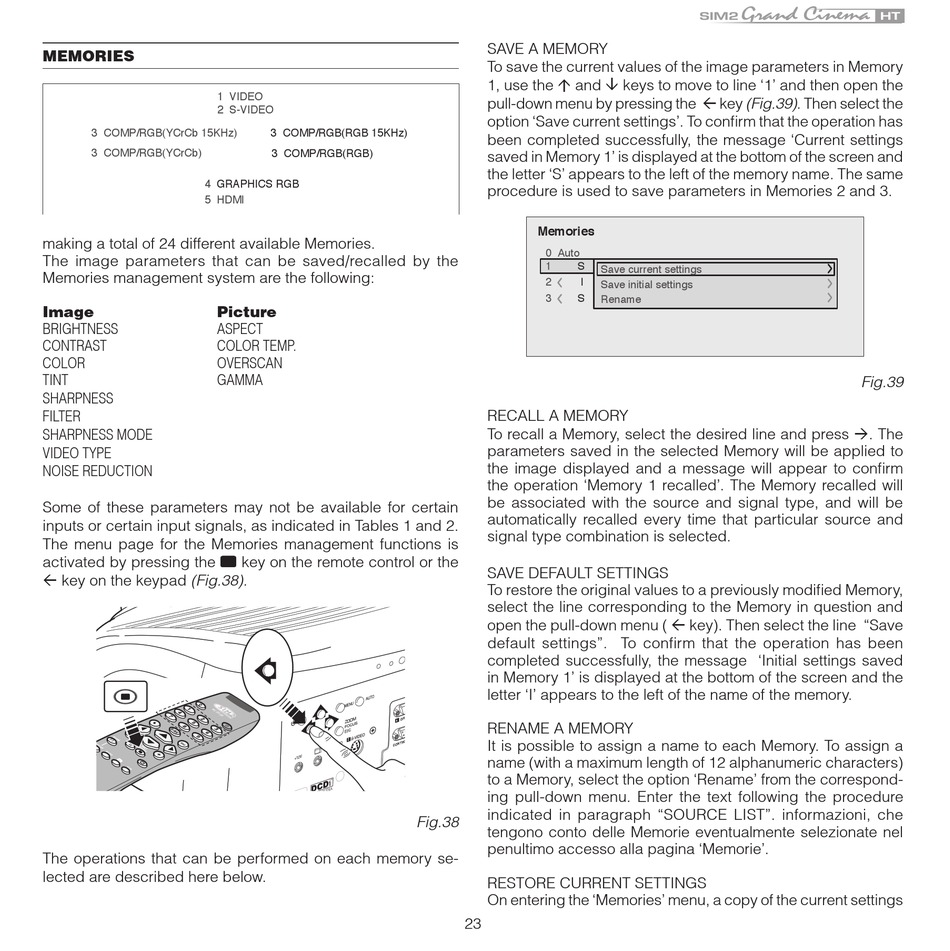

Sim2 HT 280E User And Installation Manual page 23

MEMORIES
The main parameters of the image may be saved in distinct
1 VIDEO
groups of values (known as 'Memories'); these parameters
2 S-VIDEO
can subsequently be applied all together by way of a single
3 COMP/RGB(YCrCb 15KHz)
command.
3 COMP/RGB(YCrCb)
There are 3 distinct Memories (Memory 1, Memory 2, Memory
3) for each of the 8 signal types managed:
4 GRAPHICS RGB
5 HDMI
making a total of 24 different available Memories.
The image parameters that can be saved/recalled by the
Memories management system are the following:
Image Picture
BRIGHTNESS ASPECT
CONTRAST COLOR TEMP.
COLOR OVERSCAN
TINT GAMMA
SHARPNESS
FILTER
SHARPNESS MODE
VIDEO TYPE
NOISE REDUCTION
Some of these parameters may not be available for certain
inputs or certain input signals, as indicated in Tables 1 and 2.
The menu page for the Memories management functions is
activated by pressing the
fl key on the keypad (Fig.38).
The operations that can be performed on each memory se-
lected are described here below.
3 COMP/RGB(RGB 15KHz)
3 COMP/RGB(RGB)
key on the remote control or the
Fig.38
SAVE A MEMORY
To save the current values of the image parameters in Memory
1, use the · and ‚ keys to move to line '1' and then open the
pull-down menu by pressing the fl key (Fig.39). Then select the
option 'Save current settings'. To confirm that the operation has
been completed successfully, the message 'Current settings
saved in Memory 1' is displayed at the bottom of the screen and
the letter 'S' appears to the left of the memory name. The same
procedure is used to save parameters in Memories 2 and 3.
Memories
0 Auto
1 S
Save current settings
2 I
Save initial settings
3 S MEMORIA 1
Rename
RECALL A MEMORY
To recall a Memory, select the desired line and press ‡. The
parameters saved in the selected Memory will be applied to
the image displayed and a message will appear to confirm
the operation 'Memory 1 recalled'. The Memory recalled will
be associated with the source and signal type, and will be
automatically recalled every time that particular source and
signal type combination is selected.
SAVE DEFAULT SETTINGS
To restore the original values to a previously modified Memory,
select the line corresponding to the Memory in question and
open the pull-down menu ( fl key). Then select the line "Save
default settings". To confirm that the operation has been
completed successfully, the message 'Initial settings saved
in Memory 1' is displayed at the bottom of the screen and the
letter 'I' appears to the left of the name of the memory.
RENAME A MEMORY
It is possible to assign a name to each Memory. To assign a
name (with a maximum length of 12 alphanumeric characters)
to a Memory, select the option 'Rename' from the correspond-
ing pull-down menu. Enter the text following the procedure
indicated in paragraph "SOURCE LIST". informazioni, che
tengono conto delle Memorie eventualmente selezionate nel
penultimo accesso alla pagina 'Memorie'.
RESTORE CURRENT SETTINGS
On entering the 'Memories' menu, a copy of the current settings
23
Fig.39
