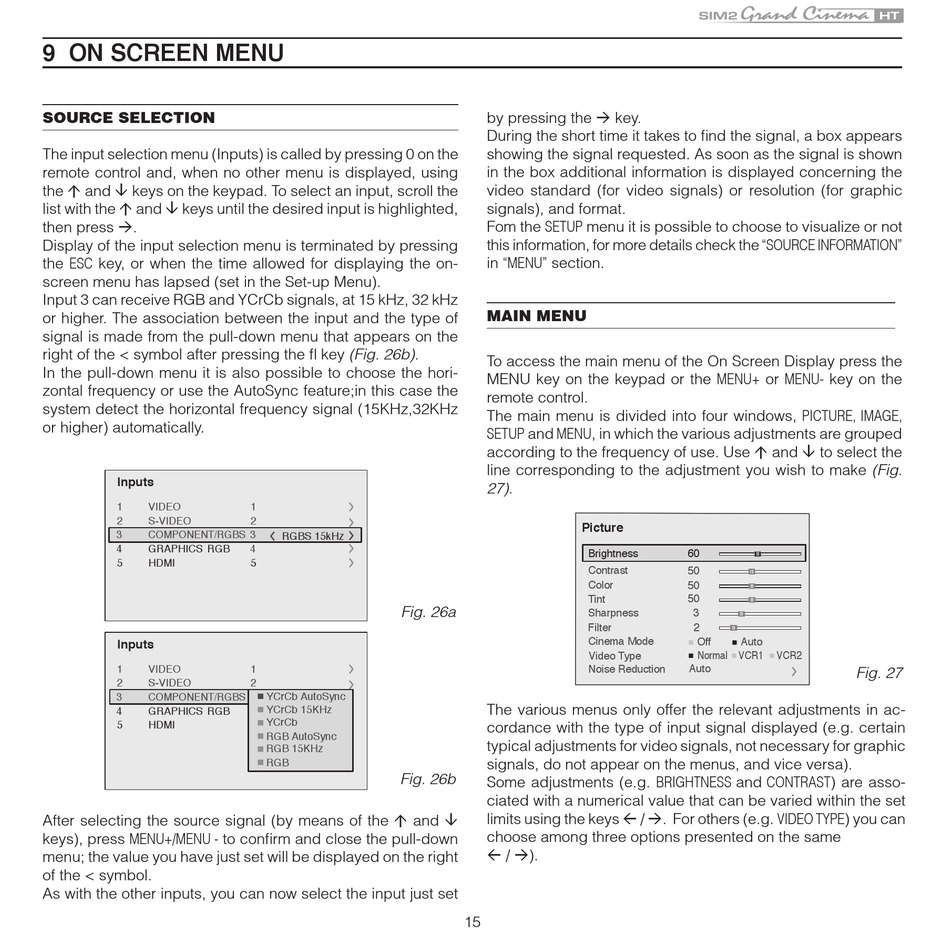

9 ON SCREEN MENU

SOURCE SELECTION

The input selection menu (Inputs) is called by pressing 0 on the
remote control and, when no other menu is displayed, using
the · and ‚ keys on the keypad. To select an input, scroll the
list with the · and ‚ keys until the desired input is highlighted,
then press ‡.
Display of the input selection menu is terminated by pressing
the ESC key, or when the time allowed for displaying the on-
screen menu has lapsed (set in the Set-up Menu).
Input 3 can receive RGB and YCrCb signals, at 15 kHz, 32 kHz
or higher. The association between the input and the type of
signal is made from the pull-down menu that appears on the
right of the < symbol after pressing the fl key (Fig. 26b).
In the pull-down menu it is also possible to choose the hori-
zontal frequency or use the AutoSync feature;in this case the
system detect the horizontal frequency signal (15KHz,32KHz
or higher) automatically.
Inputs
1 VIDEO
2 S-VIDEO
3 COMPONENT/RGBS
4 GRAPHICS RGB
5 HDMI
Inputs
1 VIDEO
2 S-VIDEO
3 COMPONENT/RGBS
4 GRAPHICS RGB
5 HDMI
After selecting the source signal (by means of the · and ‚
keys), press MENU+/MENU - to confirm and close the pull-down
menu; the value you have just set will be displayed on the right
of the < symbol.
As with the other inputs, you can now select the input just set
1
2
3
15kHz
RGBS
4
5
Fig. 26a
1
2
3 YCrCb AutoSync
RGBS 15kHz
YCrCb 15KHz
4
YCrCb
5
RGB AutoSync
RGB 15KHz
RGB
Fig. 26b
by pressing the ‡ key.
During the short time it takes to find the signal, a box appears
showing the signal requested. As soon as the signal is shown
in the box additional information is displayed concerning the
video standard (for video signals) or resolution (for graphic
signals), and format.
Fom the SETUP menu it is possible to choose to visualize or not
this information, for more details check the "SOURCE INFORMATION"
in "MENU" section.

MAIN MENU

To access the main menu of the On Screen Display press the
MENU key on the keypad or the MENU+ or MENU- key on the
remote control.
The main menu is divided into four windows, PICTURE, IMAGE,
SETUP and MENU, in which the various adjustments are grouped
according to the frequency of use. Use · and ‚ to select the
line corresponding to the adjustment you wish to make (Fig.
27).
Brightness
Contrast
Color
Tint
Sharpness
Filter
Cinema Mode
Video Type
Noise Reduction
The various menus only offer the relevant adjustments in ac-
cordance with the type of input signal displayed (e.g. certain
typical adjustments for video signals, not necessary for graphic
signals, do not appear on the menus, and vice versa).
Some adjustments (e.g. BRIGHTNESS and CONTRAST) are asso-
ciated with a numerical value that can be varied within the set
limits using the keys fl / ‡. For others (e.g. VIDEO TYPE) you can
choose among three options presented on the same
fl / ‡).
15
60
50
50
50
3
2
Off Auto
Normal VCR1 VCR2
Auto
Fig. 27
