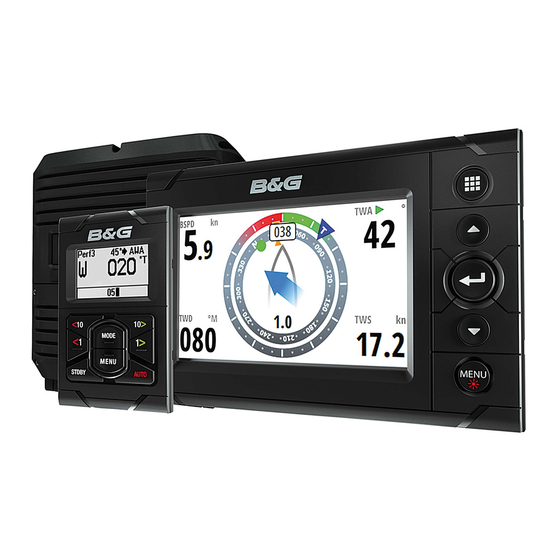

B&G H5000 Quick Reference Manual

Backlighting

MENU
Press
and
hold

Race timer

Once the countdown timer reaches zero it will start counting up showing the elapsed time from
zero. The timer will continue to count until it is stopped.
SET the value of the timer
MENU
Once SET is selected, use the directional keys to set the required time (whole minutes only).
START the timer
If a time value is preset, the timer will countdown. If the timer is on zero it will count up.
MENU

Synchronize the timer

Synchronizing the timer will cause the timer to reset to the nearest whole minute.
STOP the timer.
¼
Note: Press Enter again to restart the timer.
www.bandg.com
x3
988-10636-001 - 1/5
Race Display
Quick Reference Guide

Keys

Page key: Exit from menu system and return to last active page. Repeating presses: scroll
1
through the 5 data pages in rotation. Press and hold: save the current page configuration.
Arrow keys: Switch between upper/lower half of the display when changing variables.
2
Scroll through options. Increase/decrease values.
3 Enter key: Enter the selected menu option. Confirm change/selection.
MENU / Lights key: Enter the menu system. Repeating presses: scroll through the menu
4
options. Press and hold: enter the lights settings.

Display elements / symbols

1
2
5
2
4
1
No. Description
1 Data variable / menu name
2 Data value
3 Unit of measure
4 Bargraph data type
5 Bargraph data
The icon flashes when the Page key is
6
held to store a page configuration
7 Alarm - Critical
1
2
3
2
4
MENU
3
6
7
8
9
10
11
12
13
3
No. Description
8 Alarm - Warning
9 Alarm - Info
10 Controlling remote (HV) display
11 Autopilot engaged
12 Active page number
13 B&G CPU on the network
EN
