Front
Rear
AK
AJ
Edgebanding Feeder
AJ. Edgebanding Height Knobs (2): Secures
edgebanding vertically within edgebanding
intake guides. Loosen to adjust according to
edgebanding width; tighten to secure setting.
Note: Leave approximately 0.2mm vertical
play when setting knobs.
AK. Edgebanding Intake Guides (2): Guides
edgebanding as it feeds into machine.
AL. Rubber Drive Roller: Advances edgeband-
ing until it is severed by guillotine.
AM. Nylon Roller: Forces edgebanding against
rubber drive roller, providing necessary fric-
tion to advance edgebanding.
-10-
AM
AK
AN

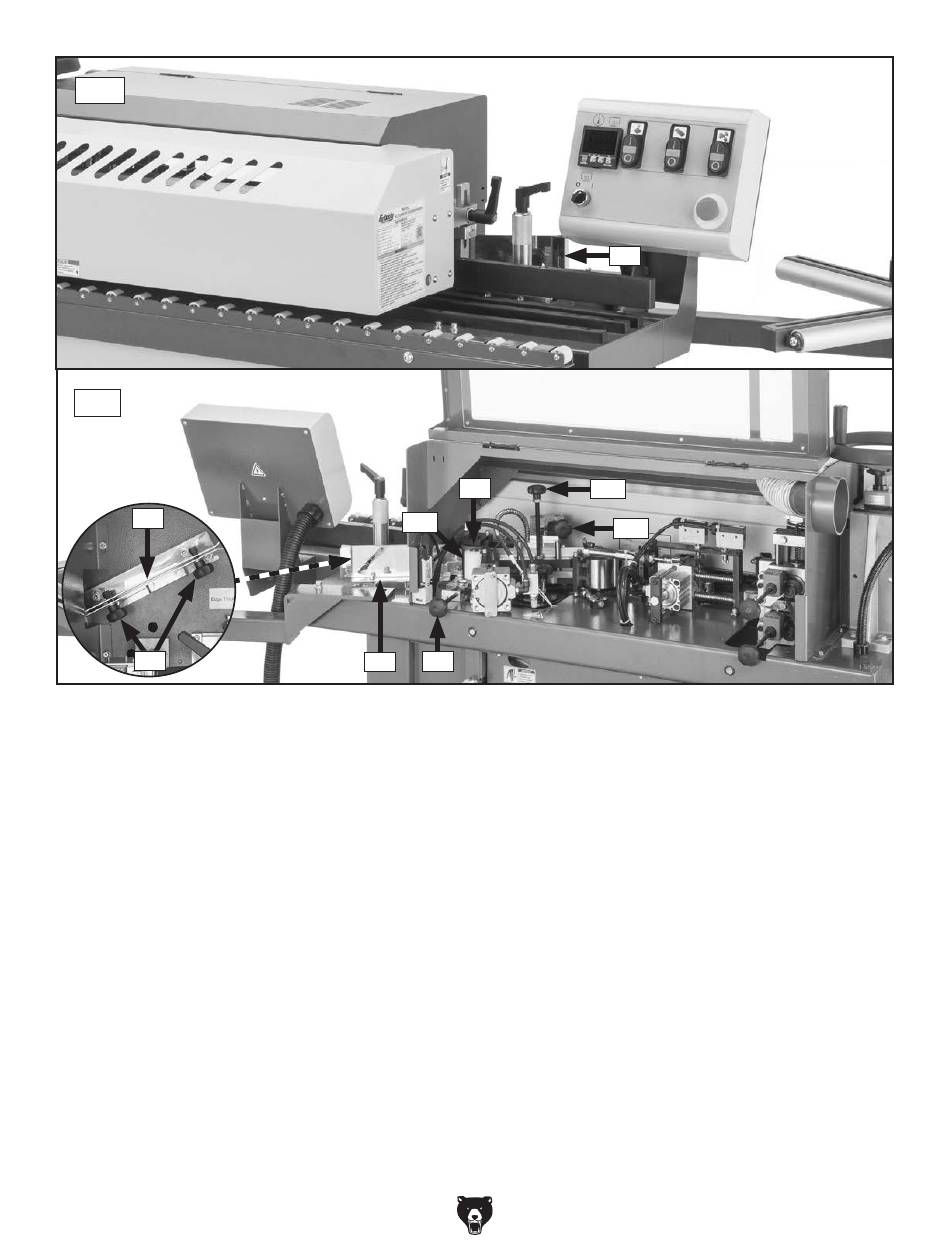

Figure 7. Edgebanding feeder controls & components.
AK
AL
AO
AP
AN. Nylon Roller Release Knob: Pull knob to the
right to release nylon roller pressure when
removing or loading edgebanding. Release
knob to apply pressure after edgebanding is
properly loaded.
AO. Edgebanding Seat Adjustment Knob:
Rotate clockwise to raise upper section of
edgebanding seat; rotate counterclockwise
to lower upper section. Adjust as necessary
according to edgebanding width.
Note: Leave approximately
when adjusting upper section height.
AP. Edgebanding Seat: Vertically supports
edgebanding just prior to making contact with
glued edge of workpiece. Use Edgebanding
Seat Adjustment Knob (AM) to adjust seat
according to edgebanding width.
Model G0854 (Mfd. Since 08/18)
⁄
" vertical play
1
32
