Summary of Contents for Alfa IN PEGAS 350 AC/DC PULSE

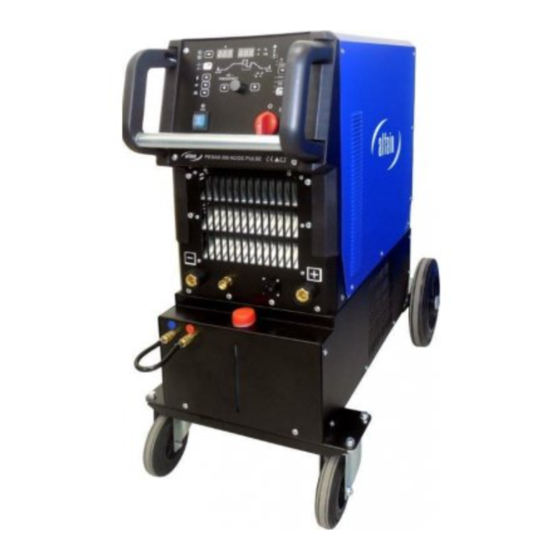

- Page 1 WELDING MACHINE PEGAS 350 AC/DC PULSE OPERATING MANUAL ALFA IN a.s. © www.alfain.eu PEGAS 350 AC-DC PULSE manual EN 02...
-
Page 2: Table Of Contents
GETTING STARTED ................12 TWO STOKE AND FOUR STROKE IN TIG MODE ........ 17 BASIC SETTINGS FOR TIG WELDING ..........18 ROUTINE MAINTANCE & INSPECTION ..........19 10. STATEMENT OF WARRANTY .............. 19 11. DISPOSAL ..................... 20 ALFA IN a.s. © www.alfain.eu... -
Page 3: Introduction
3/20 1. INTRODUCTION Dear consumer, Company ALFA IN a.s. thanks you for buying our product and believe that you will be satisfied with our machine. This Operating Manual has been designed to instruct you on the correct use and operation of your ALFA IN product. Your satisfaction with this product and its safe operation is our ultimate concern. -
Page 4: Safety Precautions
18. The operator must be aware of all the special regulations which he needs to conform to when welding in enclosed spaces with a high risk of explosion. 19. To prevent electric shock, we strongly suggest the following rules: ALFA IN a.s. © www.alfain.eu... - Page 5 User is obliged to consult with the electricity supplier if the impedance of the network at this point is that required short-circuit capacity Z = 45 mΩ and whether the device can be connected with a public low-voltage network. On the nameplate are the following symbols: ALFA IN a.s. © www.alfain.eu...
-
Page 6: Technical Data
0,74 Cooling power (Q=1l/min) Total liquid content Max. pressure l/min Max. flow Caution Due to the size of installed power can be for connecting device to public distribution network necessary the agreement from distribution establishment. ALFA IN a.s. © www.alfain.eu... -
Page 7: Equipment
Pressure Reducer BASECONTROL Ar 2 manometers 6125 Pressure Reducer BASECONTROL CO2 2 manometers Foot Pedal Remote CTRL 3 m PEGAS incl. Connector 5.0174A AERO S777 Welding Helmet ALFA IN S777 Welding Helmet ALFA IN S7S, S7SU ALFA IN a.s. © www.alfain.eu... -
Page 8: Operator Controls
On/Off Switch - cooling Control panel Quick connector (+) Quick connector (-) Connector - remote control Gas connector - exit Solenoid Valve Mains cable CU PEGAS 350 cooling unit Quick connector W (red) Quick connector W (blue) ALFA IN a.s. © www.alfain.eu... - Page 9 Switch - cooling unit pump ON/OFF. If the switch illuminated, pump was turned Button switches pulsed/no pulsed mode. LED PULSE. If illuminated the PULSE mode was set. Switch button HF/LIFT ARC LED HF. If illuminated the HF ignition was set. ALFA IN a.s. © www.alfain.eu...
- Page 10 T32 button was set type of water torch. LED gascooled torch. If illuminated, by T32 button was set type of gas torch. Switch button of cooling type according to selected torch. LED ARC FORCE for MMA ALFA IN a.s. © www.alfain.eu...
- Page 11 5 – 350 A DC, 30 -350 A AC. LED Down slope 0 – 10 s LED End current 5 – 350A in DC, 30 – 350A in AC Just in 4T. LED Post gas 0,1 – 10 s ALFA IN a.s. © www.alfain.eu...
-
Page 12: Getting Started
Arc Length by means of the button T36 and the encoder T3. Then switch to the MMA mode by means of the button T36. LEDs T26, ALFA IN a.s. © www.alfain.eu... - Page 13 Fig. 5 Connection of the watercooled torch Quick Connector (+) Connector – Remote Control Gas Connector Quick Connector (-) Quick Connector W (red) Quick Connector W (blue) Quick Connector male Quick Connector Torch W (red) Quick Connector Torch W (blue) ALFA IN a.s. © www.alfain.eu...
- Page 14 3 s of the encoder inactivity. For more information see OPERATING PANEL. 13. You can start welding. TIG MODE WITH GASCOOLED TORCH Fig. 6 Connection of the gascooled torch Insert the mains plug into a suitable 3x400 V mains socket, 50-60 Hz. ALFA IN a.s. © www.alfain.eu...
- Page 15 (minus part of the wave). Shape of the current curve BALANCE Value 15% Value 50% Cleaning effect Smallest Biggest Penetration Deep Shallow Level of wear of the Smaller Bigger tungsten electrode ALFA IN a.s. © www.alfain.eu...
- Page 16 16/20 REMOTE CONTROL PEGAS 350 AC/DC PULSE can work in both of TIG modes with two types of remote control. 1. TIG torch with UP-DOWN buttons for selecting size of welding current. 2. Foot pedal. Remote controls are connected with connector A6.
-
Page 17: Two Stoke And Four Stroke In Tig Mode
To enter the second welding current press the torch button for a short time and release it. To get back to the main welding current press the torch button for a short time and release it. ALFA IN a.s. © www.alfain.eu... -
Page 18: Basic Settings For Tig Welding
8-12 8-12 150-180 8-12 8-12 180-200 10-15 8-12 180-240 10-15 10-12 Table for Cuprum, DC current: Tungsten Filler Material Welding Argon electrode material thickness current flow nozzle heating diameter diameter l/min °C 70-80 120-140 130-160 ALFA IN a.s. © www.alfain.eu... -
Page 19: Routine Maintance & Inspection
ALFA IN will repair or replace, at its discretion, any warranted parts or components that fail due to defects in material or workmanship within the warranty period. -
Page 20: Disposal
NOTE Warranty repairs must be performed by either an ALFA IN Service Centre, an ALFA IN distributor or an Authorised Service Agent approved by the company ALFA IN. As a warranty list serves proof of purchase (invoice) on which is the serial number of the machine.
