Page 1: User Manual

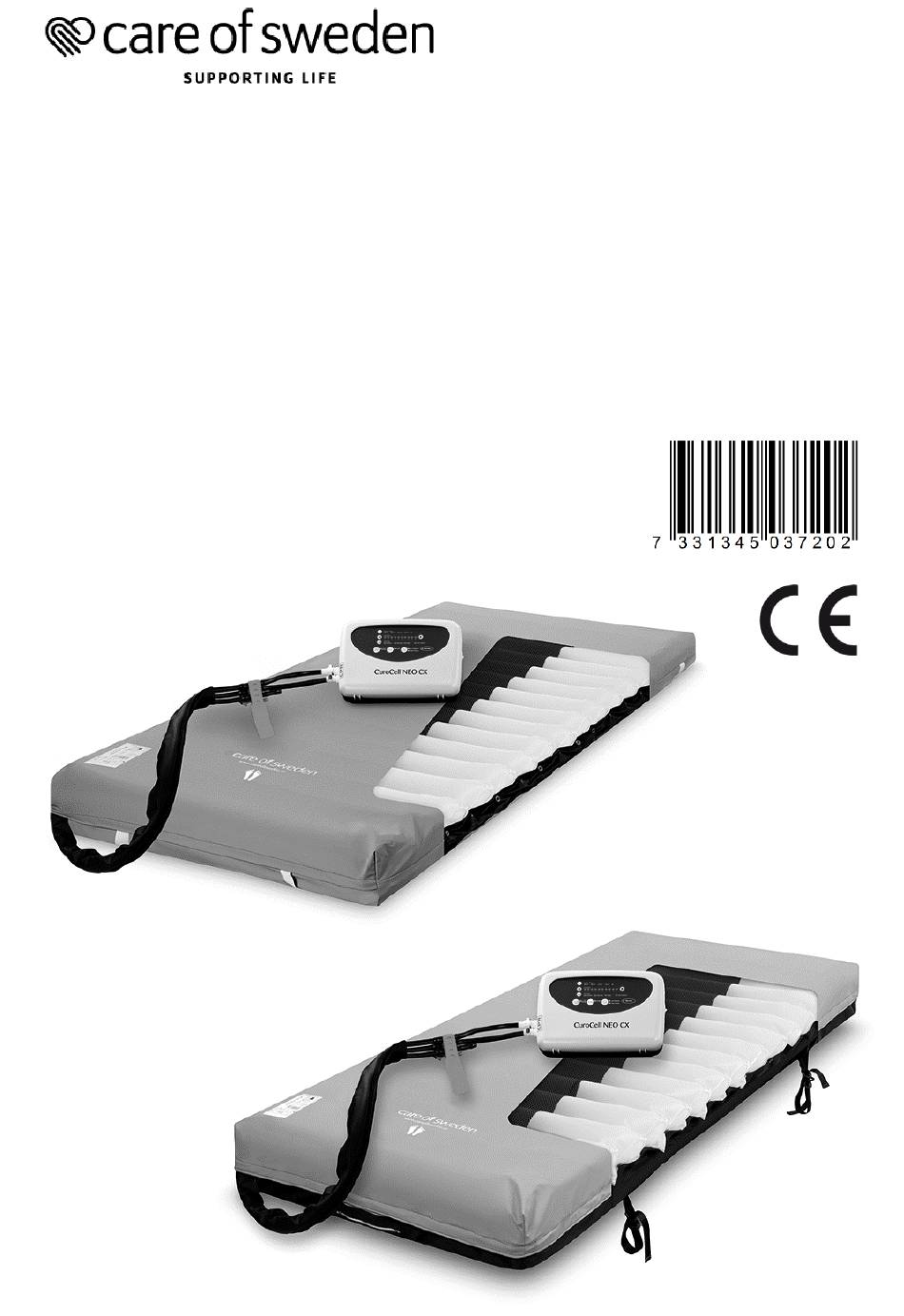

User manual 2018-10-17 CuroCell NEO CX13 ® CuroCell ® NEO CX19 Alternating pressure mattress Item number user manual: 95-001297... -
Page 2: Table Of Contents
Contents Important safety precautions Introduction Product description Assembly/Installation Start-up Cleaning and reconditioning Storage Maintenance Troubleshooting Technical description Spare parts Options and accessories Warranty Other information... -
Page 3: Important Safety Precautions
Care of Sweden. 2 Do not use the pump in wet rooms or where there is a risk of the pump coming into contact with water or another liquid. -
Page 4: Introduction
We would be very grateful for all information involving accidents or incidents relating to our products, by reporting them immediately to us here at Care of Sweden. The system has been tested and approved according to the following standards: IEC 600601-1, IEC 60601-1-2, SS-EN ISO 12182, SS-EN ISO 14971, SS-EN ISO 10993, EN 597-1, EN 597-2, EN 14126. -
Page 5: Product Description
NOTE! • For certain patients, such as amputees, are the recommended minimum weight not valid. These users may however have other requirements as the entire mattress is not being loaded. Please refer to sections 4.2 and 4.3 for operating control. •... - Page 6 Tubing system 3 static head cells. If the product is fitted with ventilated cells, they are located here (9 cells). 2.2 Pump Front Back 1. Quick connector unit, air 1. Off/On (0/1) 4. Air filter 2. Control panel 2. Power cord connection 5.
- Page 7 A. Autofirm Autofirm is used to fill the mattress completely with air for firm support. The pump always starts in this mode. When the correct pressure is reached, it changes automatically to the previous setting or to the presetting outlined below. Presetting features for Autofirm process 1.
-
Page 8: Assembly/Installation
3. Assembly/Installation When unpacking the mattress, check that none of the parts are damaged. In the event of damage, contact the manufacturer or your local dealer before using the product. 1. Place the mattress on top of an existing mattress and fasten it with the elastic bands around the underlying mattress. -
Page 9: Start-Up
4. Operation Note! Always read the user manual prior to use. 4.1 Start-up 1. Set the power switch on the side of the pump to 1 (On) and start the pump by pressing the power button on the front panel. 2. - Page 10 4.4 Hand check, checking the pressure setting Hand check is used to ensure that the mattress is properly inflated. This should be done regularly, once per shift, after changing the position in the bed or changing the comfort settings. Open the cover. Place a flat hand under the air cells directly underneath the user’s pelvic region and make sure that the user does not lay directly on the underlying mattress.
-
Page 11: Cleaning And Reconditioning
4.8 Heel function (with check valves, option) This feature allows pressure relief of the heels. Disconnect the air cell which is directly under the heel. This air cell will then be emptied for air. Press the bottom (1) and disconnect the plug. Let the cell remain in its place in the mattress. -
Page 12: Storage
INNER COVER AND DISTANCE FABRIC (accessories) Clean the affected area with a mild cleaning solution for this purpose such as: alcohol with or without tensides, Isopropanol 70 %, oxidating solutions or chlorine max 1 %. 5.2 Reconditioning PUMP See section 5.1 for instructions. MATTRESS 1. -
Page 13: Maintenance
7. Maintenance 7.1 General 1. Check the power cord and plug for damage and scratches. 2. Check that the mattress cover is intact and that the cover and air cells are correctly assembled. 3. Check that the air flow alternates between each outlet on the side of the pump. 4. -
Page 14: Troubleshooting
Can be resolved by putting the pump on a flat steady surface or by placing a towel between the pump and bed. If your questions are not answered by the above information, please contact Care of Sweden or your local dealer for further assistance. -
Page 15: Technical Description
80/85/90/105/120 cm x 200/210 x 13/19 cm Weight 8.5 kg (80x200 cm) NOTE: Care of Sweden retains the right to modify the product specification at any time. WARNING! Follow operating and maintenance instructions carefully to prevent injury, as well as damage to the product or other equipment. -
Page 16: Symbol Definitions
9.3 Symbol Definitions XXXX-XX-XX Article No Manufacturer Year-Month-Day Foot placement Read the user manual CE marked acc. to Group of function Recycling MDD 93/42/EEC Directly on bed base Not in domestic refuse, Recommended user weight Patient information follow recycling instructions –... -
Page 17: Spare Parts
90x13 cm CC-901004 Air cell, PU 105x13 cm CC-901005 Air cell, PU 120x13 cm CC-8217 Fuse (set of 2) CC-8202 Filter, disposable If other spare parts are needed, please contact Care of Sweden or your local dealer for further assistance. -
Page 18: Options And Accessories
Sturdy transport bag 11.3 Other accessories To ensure the best level of comfort, we recommend use of accessories from Care of Sweden since our products are designed to work well together. Please contact Care of Sweden or your local dealer for accessories or more information on our products. -
Page 19: Warranty
Service and maintenance must always be performed by Care of Sweden or one of its authorised technicians. Only use spare parts that have been approved by Care of Sweden. Use of non-approved spare parts invalidate the warranty. - Page 20 SE-514 23 Tranemo SWEDEN Visit address: Fabriksgatan 5A SE-514 33 Tranemo SWEDEN Cargo address: Byns väg 4A SE-514 33 Tranemo SWEDEN Supplied by Care of Sweden and CuroCell are trademarks of Care of Sweden AB © Care of Sweden AB, 2018...
