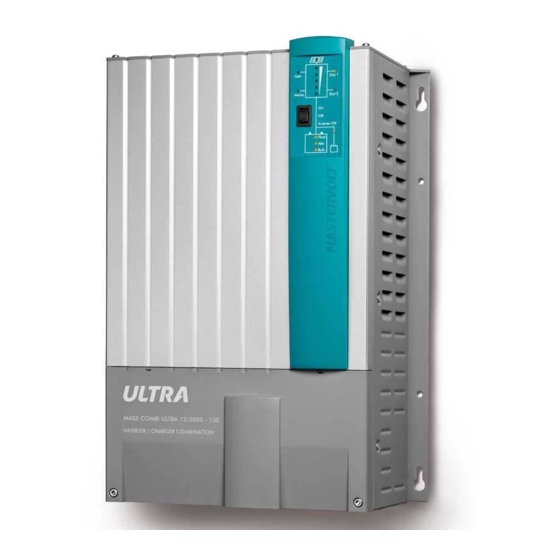

- Page 1 MASS COMBI ULTRA 12/3000-150, 24/3500-100, 48/3500-50 MULTI PURPOSE CHARGER INVERTER USER AND INSTALLATION MANUAL 10000006554/08 To download this manual in other languages, please visit our website: www.mastervolt.com...
-
Page 2: Overview Mass Combi Ultra
Mass Combi Ultra 12/3000-150, 24/3500-100, 48/3500-50 – User and Installation Manual OVERVIEW MASS COMBI ULTRA Figure 0-1: Overview of the Mass Combi Ultra 6. Mains AC input terminal (“MAINS”) 1. Display with front switch 11. Fan (3x) 7. Generator AC input terminal (“GEN”) 2. -
Page 3: Table Of Contents
Mass Combi Ultra 12/3000-150, 24/3500-100, 48/3500-50 – User and Installation Manual TABLE OF CONTENTS: OVERVIEW MASS COMBI ULTRA ............................2 GENERAL INFORMATION .............................. 5 Product description ............................. 5 Use of this manual .............................. 5 Validity of this manual............................5 Disclaimer ................................5 Scope of warranty .............................. - Page 4 Mass Combi Ultra 12/3000-150, 24/3500-100, 48/3500-50 – User and Installation Manual TECHNICAL DATA ................................ 28 Specifications ..............................28 Correct disposal of this product ........................30 Dimensions ............................... 30...
-
Page 5: General Information
Mass Combi Ultra 12/3000-150, 24/3500-100, 48/3500-50 – User and Installation Manual 1 GENERAL INFORMATION Product description Among other things, this means that installation is carried out by a qualified electrician, that installation and The Mass Combi Ultra is a multifunctional charger inverter. -
Page 6: Safety Guidelines And Warnings
Mass Combi Ultra 12/3000-150, 24/3500-100, 48/3500-50 – User and Installation Manual 2 SAFETY GUIDELINES AND WARNINGS Warnings and symbols WARNING Safety instructions and warnings are marked in this manual Never use the Mass Combi Ultra in situations and on the product by the following pictograms:... -
Page 7: Warning Regarding Life Support Applications
Mass Combi Ultra 12/3000-150, 24/3500-100, 48/3500-50 – User and Installation Manual Check the wiring and connections at least once a year. Warning regarding life support applications Defects such as loose connections, burnt cables etc. The Mass Combi Ultra products are not sold for must be corrected immediately. -
Page 8: How It Works
Mass Combi Ultra 12/3000-150, 24/3500-100, 48/3500-50 – User and Installation Manual 3 HOW IT WORKS The Mass Combi Ultra is a multifunctional charger inverter. 3.1.4 Solar charger (4)* The PV input (“SOLAR”) is meant for the connection of a It combines an inverter, a battery charger with secondary (small) charger, an AC transfer switch and a solar charger*. -
Page 9: Inverter
Mass Combi Ultra 12/3000-150, 24/3500-100, 48/3500-50 – User and Installation Manual During the float phase the Mass Combi Ultra switches to Inverter Float voltage, refer to the specifications, and stabilises this voltage to maintain the batteries in an optimum condition. - Page 10 Mass Combi Ultra 12/3000-150, 24/3500-100, 48/3500-50 – User and Installation Manual 3.4.1 Inverting mode See figure 3-3. When there is no external AC power available, the inverter of the Mass Combi Ultra provides AC power on the AC outputs. Figure 3-5: AC power from Mains input 3.4.3...
- Page 11 Mass Combi Ultra 12/3000-150, 24/3500-100, 48/3500-50 – User and Installation Manual 3.4.4 Power sharing mode means that energy from the batteries is added to the AC- See figure 3-7. If the available power at the AC-input is output only. limited, and the load connected to the AC output increases, the external AC circuit breaker may trip if nothing is done.
- Page 12 Mass Combi Ultra 12/3000-150, 24/3500-100, 48/3500-50 – User and Installation Manual 3.4.6 Solar charging 3.4.7 Secondary charging mode See figure 3-9. DC voltage coming from a solar panel is See figure 3-10. The secondary battery charger is suitable converted to DC for battery charging. Refer to the for a secondary battery set or as power supply (constant specifications for allowable solar string voltages.
-
Page 13: Operation
Mass Combi Ultra 12/3000-150, 24/3500-100, 48/3500-50 – User and Installation Manual 4 OPERATION 4.1.4 Power bar LEDs Solar charging LED*, See figure 4-1 item 4. These LEDs have a double function, refer to section 4.1.1. depending on the mode the Combi Ultra is in. -
Page 14: Protections
Mass Combi Ultra 12/3000-150, 24/3500-100, 48/3500-50 – User and Installation Manual Protections 4.2.4 Dynamic DC input window The Mass Combi Ultra is protected against overload, short circuit, overheating and under and over voltage. You can detect failures from the front panel or from the MasterBus control panel. -
Page 15: Maintenance
Mass Combi Ultra 12/3000-150, 24/3500-100, 48/3500-50 – User and Installation Manual 4.3.3 Secondary charging policy Further, no specific maintenance is required. If necessary, Secondary battery charging takes place when: use a soft clean cloth to clean the Mass Combi Ultra. Do ... -
Page 16: Installation
Mass Combi Ultra 12/3000-150, 24/3500-100, 48/3500-50 – User and Installation Manual 5 INSTALLATION During installation and commissioning of the Mass Combi Wiring Ultra, the Safety Guidelines & Measures are applicable at wiring connected inside connection all times. See chapter 2 of this manual. -
Page 17: Things You Need
Mass Combi Ultra 12/3000-150, 24/3500-100, 48/3500-50 – User and Installation Manual 5.3.2 DC wiring Things you need Keep in mind that high current will pass through the DC Make sure you have all the parts you need to install the wiring. -
Page 18: Mounting The Cabinet To A Surface
Mass Combi Ultra 12/3000-150, 24/3500-100, 48/3500-50 – User and Installation Manual Wiring instructions WARNING Have installation work done by a licensed electrician only. Before connecting the wiring, make the AC distribution as well as the DC distribution voltage free. Move the main switch to the “Off”-position. -
Page 19: Installation Overview
Mass Combi Ultra 12/3000-150, 24/3500-100, 48/3500-50 – User and Installation Manual Installation overview * Models 12/3000-150 and 24/3500-100 only Figure 5-4: Installation overview for one Mass Combi (stand-alone operation) CAUTION! Ensure correct polarities, cross sections and fuses for all wiring. An RCD according to local regulations must be... -
Page 20: Setting Up A Masterbus Network
Mass Combi Ultra 12/3000-150, 24/3500-100, 48/3500-50 – User and Installation Manual Setting up a MasterBus network Connections between the devices are made by standard straight UTP patch cables. All devices that are suitable for MasterBus are marked by the MasterBus symbol. -
Page 21: Configuration
Mass Combi Ultra 12/3000-150, 24/3500-100, 48/3500-50 – User and Installation Manual 6 CONFIGURATION The Mass Combi Ultra is provided with two groups of DIP- 6.1.1 Ground relay switches to adjust the Mass Combi Ultra according to the For safe installation: ... -
Page 22: Masterbus Configuration
Mass Combi Ultra 12/3000-150, 24/3500-100, 48/3500-50 – User and Installation Manual MasterBus configuration Parameters below can be changed via the MasterBus network. DIP switch settings overrule MasterBus settings. If DIP switches are not set to default, the corresponding MasterBus configuration is greyed out... - Page 23 Mass Combi Ultra 12/3000-150, 24/3500-100, 48/3500-50 – User and Installation Manual Value Meaning Default Adjustable range Float settings Float voltage Float voltage (adjustable if User 13.25/26.50/53.0 V 8-16.00/16-32.00/32-64.00 V Defined). Sec. charger Maximum current Maximum charging current adjustable 10 A...
- Page 24 Mass Combi Ultra 12/3000-150, 24/3500-100, 48/3500-50 – User and Installation Manual Value Meaning Default Adjustable range Gen. high freq. Generator AC input window 58 Hz 36-68 Hz Gen. low freq. Generator AC input window 40 Hz 36-67 Hz 5 – 300 s...
- Page 25 Mass Combi Ultra 12/3000-150, 24/3500-100, 48/3500-50 – User and Installation Manual 6.2.3 List of event commands This is the Mass Combi Ultra event commands list. Other MasterBus connected devices can be configured to initiate these commands Event command Description Inverter On/Off...
-
Page 26: Commissioning, Decommissioning
Mass Combi Ultra 12/3000-150, 24/3500-100, 48/3500-50 – User and Installation Manual 7 COMMISSIONING, DECOMMISSIONING Commissioning Trouble shooting If a failure occurs, the origin of the failure is displayed by CAUTION! means of the LEDs at the front of the Mass Combi, see... - Page 27 Mass Combi Ultra 12/3000-150, 24/3500-100, 48/3500-50 – User and Installation Manual 7.3.1 Trouble shooting table Illuminating LEDs MasterBus alarm Explanation / Possible cause What to do Normal operation and warnings None The Mass Combi Ultra is switched Switch on the Mass Combi Ultra by off manually.
-
Page 28: Technical Data
Mass Combi Ultra 12/3000-150, 24/3500-100, 48/3500-50 – User and Installation Manual 8 TECHNICAL DATA Specifications Mass Combi Ultra 12/3000-150 24/3500-100 48/3500-50 Article number 38013000 38023500 38043500 Inverter specifications Nominal battery voltage 12 V 24 V 48 V 230 V (±2 %) (adjustable 180 – 260 V) - Page 29 Mass Combi Ultra 12/3000-150, 24/3500-100, 48/3500-50 – User and Installation Manual Mass Combi Ultra 12/3000-150 24/3500-100 48/3500-50 Paralleling/3-phase Parallel stacking Yes, up to 10 standard from hardware version D 3-phase configuration Yes, up to 3 x 3 from hardware version D Solar charge regulator* Max.
-
Page 30: Correct Disposal Of This Product
Mass Combi Ultra 12/3000-150, 24/3500-100, 48/3500-50 – User and Installation Manual Correct disposal of this product This product is designed and manufactured with high quality materials and components, which can be recycled and reused. When this crossed-out wheeled bin symbol is attached to a product, it means the product is covered by the European Directive 2012/19/EU. - Page 31 Mass Combi Ultra 12/3000-150, 24/3500-100, 48/3500-50 – User and Installation Manual...
- Page 32 N86 W12500 Westbrook Crossing 42 Apollo Drive, Rosedale 1105 AN AMSTERDAM Menomonee Falls, WISCONSIN 53051 AUCKLAND 0632 The Netherlands New Zealand +31 (0)20 34 22 100 +1 800 307 6702, Option 1 + 64 9 415 7261 info@mastervolt.com technical@marinco.com enquiries@bepmarine.com...
