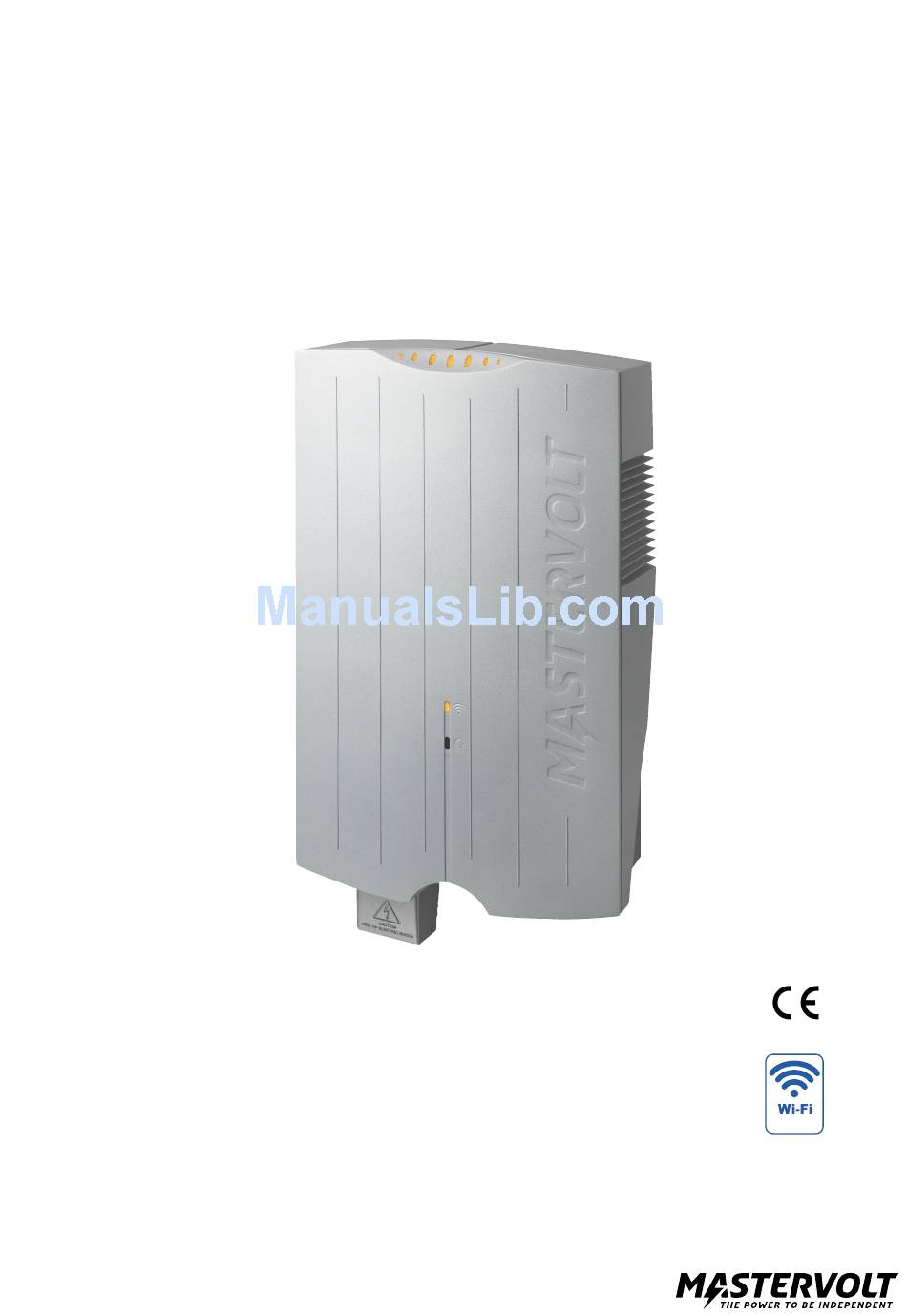

- Page 1 SOLADIN 700 WEB / 1000 WEB / 1500 WEB GRID CONNECTED SOLAR INVERTER UK | USERS AND INSTALLATION MANUAL compatible IT : DOWNLOAD FROM WWW.MASTERVOLTSOLAR.COM/SOLADINWEB 10000005892/03...
- Page 2 02 | EN / Soladin 700/1000/1500 Web User’s Manual...
-
Page 3: En / Soladin 700/1000/1500 Web User's Manual
| 03 EN / Soladin 700/1000/1500 Web User’s Manual 6 7 8 9 10 1. Power LEDs (Section 6.4) 2. Cooling fan 3. WIFI LED (Section 6.4) 4. Status LED (Section 6.4) 5. AC connection compartment (Chapter 5) 6. WIFI connection button (Section 6.4) 7. -
Page 4: Table Of Contents
04 | EN / Soladin 700/1000/1500 Web User’s Manual CONTENT GENERAL INFORMATION PRODUCT DESCRIPTION USE OF ThIS MANUAL VALIDITy OF ThIS MANUAL GUARANTEE SPECIFICATIONS LIAbILITy ChANGES TO ThE SOLADIN IDENTIFICATION LAbEL SAFETy GUIDELINES AND WARNINGS WARNINGS AND SyMbOLS USE FOR INTENDED PURPOSE INSTALLATION, MAINTENANCE, REPAIR WARNING OF SPECIAL DANGERS hOW IT WORKS... -
Page 5: General Information
GENERAL INFORMATION Costs for installation labour or shipping of the defective 1.1 PRODUCT DESCRIPTION The Soladin 700 Web, 1000 Web and 1500 Web further parts are not covered by this warranty. referred to as “Soladin” or “Soladin Web” are grid For making an appeal on warranty you can contact your connected solar inverters. -
Page 6: Safety Guidelines And Warnings
Life danger caused by high electric voltages is considered to be conflicting with the intended purpose. present at the connectors after disconnecting In such cases, Mastervolt will not accept liability for any 1 min DC and AC. After 1 minute the connectors are damage or injury caused by the functioning or malfunctioning voltage free. -
Page 7: How It Works
| 07 EN / Soladin 700/1000/1500 Web User’s Manual hOW IT WORKS The Soladin Web is a grid connected photovoltaic power inverter. It converts the high voltage DC power coming from the photovoltaïc (PV) panels into AC power. The AC power is fed back into the public utility grid, see figure 3-1. -
Page 8: Before You Start
08 | EN / Soladin 700/1000/1500 Web User’s Manual bEFORE yOU START 4.1 UNPACKING In addition to the Soladin the delivery includes: • A mounting bracket to mount the Soladin to a wall • This Quick Install Guide • AC connection module. After unpacking, check the contents for possible damage. -
Page 9: General Safety And Installation Precautions
| 09 EN / Soladin 700/1000/1500 Web User’s Manual = 0.75-4.0 mm copper = 2-6 mm insulation = 16 mm Figure 4-6: Cable sizes in AC connector Length Soladin model 700 Web 1000 Web 1500 Web <10m 10-20m 20-30m Table 4-1: Recommended AC cable sizes in mm 4.7 SPECIFICATIONS OF ThE PV INSTALLATION Never connect voltages higher than specified Figure 4-5: keep 50 cm between two Soladins... -
Page 10: Installation
10 | EN / Soladin 700/1000/1500 Web User’s Manual INSTALLATION Connect the AC wiring to the AC terminal. Figure 5.1 INSTALLATION STEP by STEP 5-4 shows the PE / N / L terminal. Tighten the strain relief. Make sure the cable is fixed firmly. CAUTION! Read chapters 2 and 3 prior to PE N L... -
Page 11: Installation Options
16A is the maximum permitted fuse protection. 5.2.6 Changing country setting and advanced settings For changing your country setting after setup and for advanced settings, you need an installer password. This is available at Mastervolt. -
Page 12: Commissioning Set Up Via Wi-Fi
Otherwise push the WLAN button till the Wi-Fi LED blinks slowly. Using your notebook, tablet or phone, connect to a wireless network called: mastervolt-soladin-XXXX XXXX resembles the last four digits of the serial number. Figure 6-4: Internet mode After completion of the setup, the Soladin Web will start inverting power. -
Page 13: De-Commissioning
| 13 EN / Soladin 700/1000/1500 Web User’s Manual 6.2.2 WPS connection to Wi-Fi network Make sure your internet router supports WPS before selecting this option. This way you do not have to fill in the network key. Pressing the WPS button is sufficient. Figure 6-5: Make sure your internet router supports WPS 6.2.3 Do not connect the Soladin to the internet... -
Page 14: Advanced Settings
- Click on “Advanced settings” in the bottom left part of the screen and enter your personal “Installer” password. An “installer password” must be obtained from Mastervolt Technical Support. - If the password is correct, the Country settings menu will be displayed. -
Page 15: Trouble Shooting Table
Try unplugging and replugging your router. not able to connect to our Check if you can reach http://intelliweb. servers. mastervolt.com/ If you can reach other sites, but not IntelliWeb, our service might be temporarily disrupted. stays blinking 3 times ●●● ●●●... -
Page 16: Technical Data
16 | EN / Soladin 700/1000/1500 Web User’s Manual TEChNICAL DATA 9.1 TEChNICAL SPECIFICATIONS Soladin 700 Web Soladin 1000 Web Soladin 1500 Web GENERAL Part number 130000700 130001000 130001500 Operating temp. Ambient temperature -20°C to 60°C (Full power up to 45 °C ambient) -
Page 17: Soladin Web Outline Settings
9.2 SOLADIN WEb OUTLINE DRAWINGS Figure 9-1 Dimensions in mm of the Soladin 1000 Web and 1500 Web ORDERING INFORMATION Part number Description 130000700 Soladin 700 Web 130001000 Soladin 1000 Web 130001500 Soladin 1500 Web 130500640 Soladin Web DC Switch... -
Page 18: Certificates
1105 AN Amsterdam The Netherlands Declare under our sole responsibility that the product: Article number Product name 130000700 Soladin 700 Web 130001000 Soladin 1000 Web 130001500 Soladin 1500 Web is in conformity with the provisions of the applicable directives: 2004/108/EC... -
Page 19: Vde V 0126-1-1 Unbedenklichkeitsbescheinigung
+ 49 (0) 4074041-0 cps-tuerkheim@de.bureauveritas.com Zertifizierungsstelle der BV CPS GmbH Akkreditiert nach EN 45011 - ISO / IEC Guide 65 Unbedenklichkeitsbescheinigung Antragsteller: Mastervolt International BV Snijdersbergweg 93 1105 AN AMSTERDAM ZO Niederlande Erzeugnis: Selbsttätige Schaltstelle zwischen einer netzparallelen Eigenerzeugungsanlage und dem öffentlichen... -
Page 20: Konformitätsnachweis Eigenerzeugungseinheit
+ 49 (0) 4074041-0 cps-tuerkheim@de.bureauveritas.com Zertifizierungsstelle der BV CPS GmbH Akkreditiert nach EN 45011 - ISO / IEC Guide 65 Konformitätsnachweis Eigenerzeugungseinheit Hersteller / Antragsteller: Mastervolt International BV Snijdersbergweg 93 1105 AN AMSTERDAM ZO Niederlande Typ Erzeugungseinheit: Netzgebundener Photovoltaikwechselrichter Name der EZE:... -
Page 21: Konformitätsnachweis Na-Schutz
+ 49 (0) 4074041-0 cps-tuerkheim@de.bureauveritas.com Zertifizierungsstelle der BV CPS GmbH Akkreditiert nach EN 45011 - ISO / IEC Guide 65 Konformitätsnachweis NA-Schutz Hersteller / Antragsteller: Mastervolt International BV Snijdersbergweg 93 1105 AN AMSTERDAM ZO Niederlande Typ NA-Schutz: Integrierter NA-Schutz Zugeordnet zu... - Page 22 22 | EN / Soladin 700/1000/1500 Web User’s Manual...
- Page 23 | 23 EN / Soladin 700/1000/1500 Web User’s Manual...
- Page 24 24 | EN / Soladin 700/1000/1500 Web User’s Manual...
