USER'S MANUAL

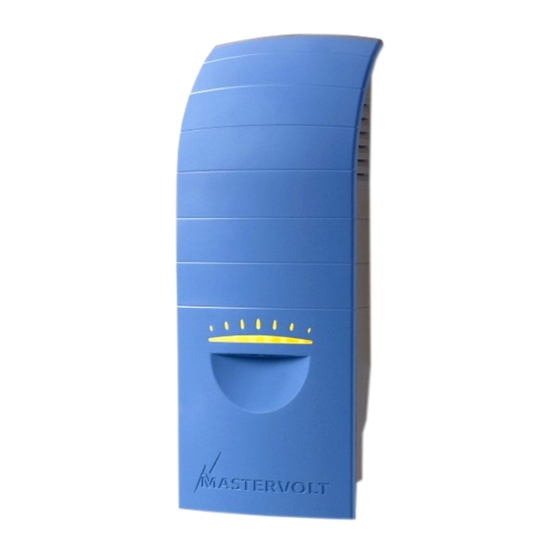

Grid connected wind inverter
This product must be protected externally against over voltages that may occur in no-
load and / or extreme wind conditions. Exceeding the specified maximum input
voltage must be avoided under any circumstances. Most turbine manufacturers
supply a protection circuit to protect power converters from these conditions. Failure
to do so may cause serious damage to the inverter and will void product warranty.
MASTERVOLT
Snijdersbergweg 93, 1105 AN Amsterdam
The Netherlands
Tel.: +31-20-342 21 00
Fax: +31-20-697 10 06
www.mastervolt.com
v 1.0 December 2006
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Mastervolt Windmaster 500
Summary of Contents for Mastervolt Windmaster 500
- Page 1 USER’S MANUAL Windmaster 500 Grid connected wind inverter This product must be protected externally against over voltages that may occur in no- load and / or extreme wind conditions. Exceeding the specified maximum input voltage must be avoided under any circumstances. Most turbine manufacturers supply a protection circuit to protect power converters from these conditions.
- Page 2 WINDMASTER 500 Ventilation openings Mains cord LED indicator Ventilation opening MultiContact plug positive (+) MultiContact plug negative (–) Tab to release the mounting lock Communication port...
- Page 3 • If necessary, drill mounting holes at spots A and B • Fix the mounting bracket to the wall • Place the Windmaster 500 over the mounting bracket and then move it downwards until it is locked by the mounting bracket...
- Page 4 INSTALLATION • Check whether the Windmaster 500 is mounted in a secure way. • Connect the string cabling to the Windmaster 500. If wind power is sufficient, the LED indicator will illuminate red. – • Connect mains cord to the AC-wiring. Then switch on the grid. If wind power is sufficient, the LED-indicator starts blinking red: the Windmaster 500 is starting up.
- Page 5 • Install the Windmaster 500 according to the instructions stated in this manual. • MultiContact “Pigtail” adapters (2x) • Be sure that the Windmaster 500 is disconnected • Windmaster 500 PC-Link from the grid during installation. This can be done...
- Page 6 • Do install Windmaster The Windmaster 500 is sold as a part of a system. environments with heavy dust development or Your system vendor will provide the Windmaster humidity. 500 with the appropriate settings for the local electrical grid.
- Page 7 Red blinking 5 times • • • • • • Internal temperature Air flow of the Windmaster 500 may not be obstructed. If the problem too high remains, switch off the Windmaster 500 by removing the fuse from Red blinking 6 times the meter cupboard and consult your system vendor.
- Page 8 MultiContact plugs. • Use that is inconsistent with the purpose of the Now the Windmaster 500 can be demounted in a product. safe way: 1. Push on the lower tab of the mounting bracket to release the mounting lock.
- Page 9 (*) Mechanical either electrical OVP may be integrated in the wind turbine Grounding The Windmaster 500 is a class II device with galvanic isolation between DC and AC. The inverter doesn’t need to be grounded. Grounding of the Wind turbine however is recommended.
- Page 10 SPECIFICATIONS Model Windmaster 500 Part number: 140000500 Manufacturer: Mastervolt, Amsterdam, the Netherlands Operating temperature: -20°C to 50°C (full power up to 40°C) Storage temperature: -20°C to 70°C Relative humidity: Max. 95%, non condensing (electronics have anti-moisture coating) Protection degree: IP23 (for indoor use)
- Page 11 DIMENSIONS...
- Page 12 ENV 50204: 1995 Safety Low Voltage directive : LV 73/23 EEC Electrical safety : EN 60950 : 2003 Amsterdam, R.J. ter Heide, General Manager MASTERVOLT © Mastervolt BV, Snijdersbergweg 93, 1105 AN Amsterdam, Netherlands Tel: + 31-20-3422100 Fax: + 31-20-6971006 Email: info@mastervolt.com...
