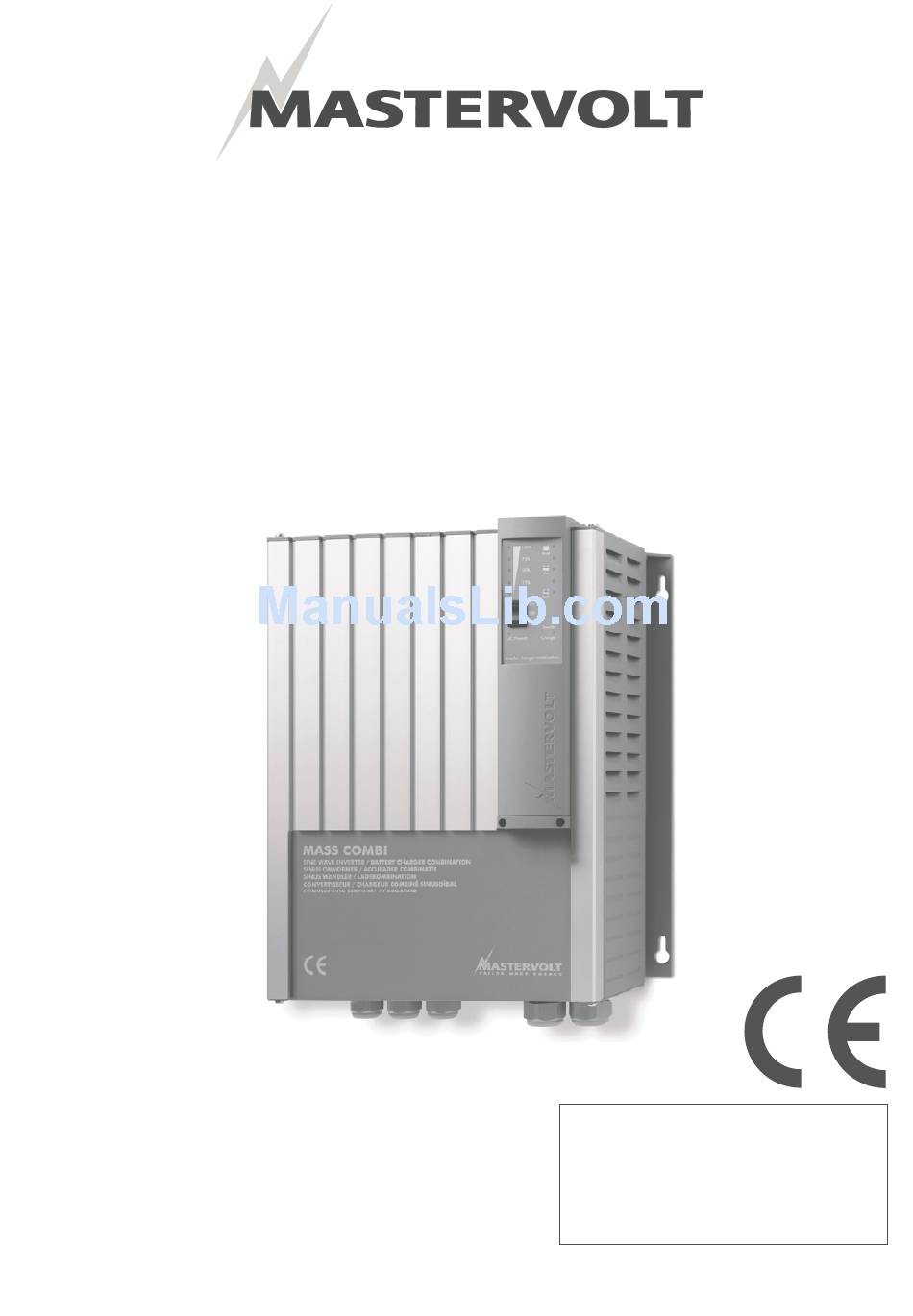

USERS MANUAL / GEBRUIKERSHANDLEIDING / BETRIEBSANLEITUNG
MANUEL UTILISATEUR / MANUAL DE UTILIZACION / INSTRUZIONI PER L'USO
12/1200-60 & 24/1200-35
SINE WAVE INVERTER/CHARGER COMBINATION
MASTERVOLT
Snijdersbergweg 93,
1105 AN Amsterdam
The Netherlands
Tel.: +31-20-3422100
Fax.: +31-20-6971006
www.mastervolt.com
MASS COMBI
WITH GENERATOR / MAINS SUPPORT
ENGLISH:
NEDERLANDS:
DEUTSCH:
FRANÇAIS:
CASTELLANO:
ITALIANO:
PAGE 1
PAGINA 41
SEITE 81
PAGINA 121
PÁGINA 161
PÁGINA 201
v 1.2 June 2007
Advertisement
Table of Contents
Related Manuals for Mastervolt Mass Combi 12/1200-60
Summary of Contents for Mastervolt Mass Combi 12/1200-60
- Page 1 MANUEL UTILISATEUR / MANUAL DE UTILIZACION / INSTRUZIONI PER L’USO MASS COMBI 12/1200-60 & 24/1200-35 SINE WAVE INVERTER/CHARGER COMBINATION WITH GENERATOR / MAINS SUPPORT ENGLISH: PAGE 1 NEDERLANDS: PAGINA 41 MASTERVOLT DEUTSCH: SEITE 81 Snijdersbergweg 93, FRANÇAIS: PAGINA 121 1105 AN Amsterdam CASTELLANO: PÁGINA 161...
- Page 2 CONTENTS EN / Mass Combi 12/1200-60 & 24/1200-35 / EN...
-
Page 3: Table Of Contents
Switching Ch. (Charger only)......................17 Protections ............................... 17 4.3.1 Transfer switch overload protection....................17 4.3.2 Output overload or short circuit ....................... 17 4.3.3 Overheating............................. 18 4.3.4 Under and over voltage ........................18 Maintenance..............................18 EN / Mass Combi 12/1200-60 & 24/1200-35 / June 2007... - Page 4 Fault indicators ..............................31 Software version............................... 33 TECHNICAL DATA................................ 34 Specifications inverter ............................34 Specifications charger ............................35 Miscellaneous..............................36 Characteristics..............................37 ORDERING INFORMATION............................39 EC DECLARATION OF CONFORMITY ........................40 EN / Mass Combi 12/1200-60 & 24/1200-35 / EN...
-
Page 5: General Information
Changes to the Mass Combi may be carried out only after obtaining the written permission of Mastervolt. This is not applicable for DIP switches (see chapter 6) which are used for making user settings. EN / Mass Combi 12/1200-60 & 24/1200-35 / June 2007... -
Page 6: Safety Guidelines And Measures
Check the wiring and connections at least once a year. Defects such as loose connections, burned cables etc. must be corrected immediately. EN / Mass Combi 12/1200-60 & 24/1200-35 / EN... -
Page 7: Warning Regarding Life Support Applications
Avoid short circuiting batteries, as this may result in explosion and fire hazard. Installation of the batteries and adjustments of the Mass Combi should only be undertaken by authorised personnel! EN / Mass Combi 12/1200-60 & 24/1200-35 / June 2007... -
Page 8: How It Works
The three-step Plus charge system is also safe for all the connected equipment. See also section 9.4 for detailed characteristics of the three step Plus charge system. EN / Mass Combi 12/1200-60 & 24/1200-35 / EN... -
Page 9: Temperature Compensated Charging
The saving is approximately 10%. For detailed specifications see section 9.1 “DC no load power consumption” Table 1: Mass Combi energy saving modes EN / Mass Combi 12/1200-60 & 24/1200-35 / June 2007... -
Page 10: Operation Modes
“Charger mode” limited by a 6A fuse, the Power Sharing level must be set to 6A. AC OUTPUT “POWER” AC OUTPUT AC INPUT “SHORT BREAK” Figure 5: BATTERIES Charger mode EN / Mass Combi 12/1200-60 & 24/1200-35 / EN... - Page 11 Remote APC or Masterlink MICC. With this remote panel you can select the available shore current (fuse) of each marina or camping site in a very easy way. EN / Mass Combi 12/1200-60 & 24/1200-35 / June 2007...
-
Page 12: Generator / Mains Support Function (Selectable)
NOTE! You can either choose the Generator / back into the AC grid. Please mind that several countries mains support function or the Power support maintain different regulations with regard to AC-sources function, not both simultaneously. EN / Mass Combi 12/1200-60 & 24/1200-35 / EN... -
Page 13: Summary Of The Ac Operation Modes
AC, while the SHORT BREAK incoming AC. output is connected to the output of the inverter. Table 2: Overview of the AC operation modes * see chapter 6 for adjustment of the DIP switches EN / Mass Combi 12/1200-60 & 24/1200-35 / June 2007... -
Page 14: Remote Control Panels
Over voltage ON: 16.0V 32.0V remotely the Power sharing value and monitoring your Over voltage OFF: 15.5V 31.0V “AC-load”. This APC remote panel is optional (see chapter Table 3 10 for ordering information). EN / Mass Combi 12/1200-60 & 24/1200-35 / EN... -
Page 15: Masteradjust Software
MasterAdjust software for detailed information. If your computer does not have a COM-port (RS232), use of an external USB-RS232 converter is necessary. Figure 13: Masteradjust software EN / Mass Combi 12/1200-60 & 24/1200-35 / June 2007... -
Page 16: Operation
On, Off and Ch. (Charger only) 4.2.1 Switching On The Mass Combi can be activated by switching the main switch to the “ON” position. EN / Mass Combi 12/1200-60 & 24/1200-35 / EN... -
Page 17: Switching Off
5 seconds. The Mass Combi will automatically restart after shutdown. After 5 failed start attempts the Mass Combi shuts down permanently, the 100% LED is lit and the Inverter LED EN / Mass Combi 12/1200-60 & 24/1200-35 / June 2007... -
Page 18: Overheating
(dust or too less space) soft clean cloth to clean the Mass Combi. Never use any liquids, acids and/or scourers. PROBLEM SOLVING Refer to chapter 8 if a problem occurs. EN / Mass Combi 12/1200-60 & 24/1200-35 / EN... -
Page 19: Installation
Do not install the Mass Combi straight above the batteries because of possible corrosive sulphur fumes Model Mass Combi Maximum rating of the AC input fuse All models EN / Mass Combi 12/1200-60 & 24/1200-35 / June 2007... -
Page 20: Dc Wiring
Model Mass Combi Recommended Combi fuse 12/1200-60 160A To enable this automatic connection, see section 6.1.5. 24/1200-35 The fuse with the fuse-holder is available from your local Mastervolt distributor or Customer Service Representative. EN / Mass Combi 12/1200-60 & 24/1200-35 / EN... -
Page 21: Things You Need
See figure 17. WARNING The front panel may never be removed while Step 2 the Mass Combi is still connected to a power source! Figure 16 EN / Mass Combi 12/1200-60 & 24/1200-35 / June 2007... -
Page 22: Overview Connection Compartment
Cable glands Cable glands for for AC wiring main DC wiring Grommets for wiring of remote panels Figure 17: Overview connection compartment Mass Combi 12/1200-60 and 24/1200-35 318 [12.5] 156 [6.1] 300 [11.8] Figure 18: Dimensions in mm [inch] of the Mass Combi 12/1200-60 and 24/1200-35 242 [9.5]... -
Page 23: Mounting Of The Cabinet
Figure 19: mounting of the cabinet the correct size NOTE! Feed the cables through the cable glands of the cabinet before you fix the cable lugs to the wire ends. EN / Mass Combi 12/1200-60 & 24/1200-35 / June 2007... - Page 24 This schematic is to illustrate the general placement of the Mass Combi in a circuit. It is not meant to provide detailed wiring instructions for any particular electrical installation. Figure 20: installation drawing for the Mass Combi EN / Mass Combi 12/1200-60 & 24/1200-35 / EN...
-
Page 25: Wiring Instructions For The Mass Combi
See section 4.4 of the user’s manual of the between the Mass Combi and the panel. Connect the Masterlink MICC to enable the Mass Combi RJ12 connector to the “REMOTE”-input (Data Bus setting. Connections) EN / Mass Combi 12/1200-60 & 24/1200-35 / June 2007... -
Page 26: Settings
Idle 150VA. When it detects a load that is >150VA, it switches on the output power automatically Economy 208V. The output voltage will drop to 208V as long as the connected load stays below 250VA. EN / Mass Combi 12/1200-60 & 24/1200-35 / EN... -
Page 27: Battery Type
Neutral wire (N) of the inverter output circuit connected to the Safety Ground (PE / GND) when the Mass Combi is working as an inverter and disconnected when incoming AC-power is applied (charger / transfer mode). EN / Mass Combi 12/1200-60 & 24/1200-35 / June 2007... -
Page 28: Dip Switch B
To set the frequency window for the incoming AC power at 35Hz < f < 65Hz CAUTION! Adjustment of the frequency window at a too low level may cause damage to the connected AC-load. Refer to the AC-input specifications of the connected loads. EN / Mass Combi 12/1200-60 & 24/1200-35 / EN... -
Page 29: Combi/Inverter Control
An equalizing charge can be necessary after very deep discharges and/or inadequate charges. This has to be carried out according to the specifications of the manufacturer of the batteries. If you want… DIP switch B To start the equalize mode Off-On-Off pulse EN / Mass Combi 12/1200-60 & 24/1200-35 / June 2007... -
Page 30: Start-Up After Installation
Combi. This is particularly dangerous in places with insufficient ventilation, due to the gassing of the batteries an explosion can occur and avoid having flammable materials close by. Now the Mass Combi is ready for operation. EN / Mass Combi 12/1200-60 & 24/1200-35 / EN... -
Page 31: Trouble Shooting
3 = solid yellow DC voltage error. The battery Check the batteries. 8 = solid red voltage is too high or too low. EN / Mass Combi 12/1200-60 & 24/1200-35 / June 2007... - Page 32 If you cannot solve a problem with the aid of this table, contact your local Mastervolt Service Centre. See www.mastervolt.com. Make sure you have the following information present if you have to contact your local Mastervolt Service Center to solve a problem: Article and serial number (See section 1.6)
-
Page 33: Software Version
Flashes 0 times Flashes 5 times Flashes 2 times 2 . 0 Software version Software version: 1 . 3 Figure 24: Representation of the software versions of the Mass Combi EN / Mass Combi 12/1200-60 & 24/1200-35 / June 2007... -
Page 34: Technical Data
Efficiency (100VA up to 1200VA) Load power factor range All power factor allowed Over temperature, overload, short circuit, AC on output, high battery, low Protections battery. * adjustable by means of MasterAdjust software EN / Mass Combi 12/1200-60 & 24/1200-35 / EN... -
Page 35: Specifications Charger
13.80V / 27.20V 13.25V / 26.50V Forced to Float 13.25V / 26.50V 13.80V / 27.20V 13.25V / 26.50V * adjustable by means of MasterAdjust software. ** traction max ABS/BULK time + 120min. EN / Mass Combi 12/1200-60 & 24/1200-35 / June 2007... -
Page 36: Miscellaneous
Mix of conventional and forced air cooling, by DC fans with variable speed. The fan does operate on a temperature current control related PWM Fan operation variable speed control. DC maintenance free fan. EN / Mass Combi 12/1200-60 & 24/1200-35 / EN... -
Page 37: Characteristics
4 hr every 336 hr timer: 8 hr bulk timer = current Figure 26: Charge characteristic of the three-step Plus charging method (@ 25°C Negative battery Thermal fuse FAC input EN / Mass Combi 12/1200-60 & 24/1200-35 / June 2007... - Page 38 Start equalize cycle by jumper change (disabled when Gel) = current Figure 27: Characteristic of the equalize charge cycle (see section 6.2.6) (@ 25°C / 77°F) Figure 28: Temperature compensation characteristic (charge voltage versus temperature) EN / Mass Combi 12/1200-60 & 24/1200-35 / EN...
-
Page 39: Ordering Information
PC link RS232-QRS232 ISOLATED (with galvanic isolation) required to use with MasterAdjust software * standard included with the delivery of the Mass Combi Mastervolt can offer a wide range of products for your electrical installation, including automatic AC transfer switches, remote control panels and DC distribution kits See our website www.mastervolt.com for an extensive overview of all our products... -
Page 40: Ec Declaration Of Conformity
The Netherlands Herewith declares that: Product: 36011205 Mass Combi 12/1200-60 / 230V 36021205 Mass Combi 24/1200-35 / 230V Is in conformity with the provision of the EC, EMC directive 89/336/EEC and amendments 92/31/EEC, 93/68/EEC The following harmonized standards have been applied:...
