Mass Sine 24/5000 230V AC
Mass Sine 24/4000 117V AC
MASTERVOLT B.V.
Snijdersbergweg 93
1105 AN Amsterdam
The Netherlands
Tel.: +31 20 3422100
Fax.: +31 20 6971006
e
-mail: info@mastervolt.com
WEB-site: www.mastervolt.com
USERS- AND INSTALLATION MANUAL
Inverter
ENGLISH:
NEDERLANDS: PAGINA 25
DEUTSCH:
FRANÇAIS:
Language : English
Version
PAGE 1
SEITE 49
PAGE 73
: V1.1-050209
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Mastervolt Mass Sine 24/5000
Summary of Contents for Mastervolt Mass Sine 24/5000
- Page 1 USERS- AND INSTALLATION MANUAL Mass Sine 24/5000 230V AC Mass Sine 24/4000 117V AC Inverter ENGLISH: PAGE 1 MASTERVOLT B.V. NEDERLANDS: PAGINA 25 Snijdersbergweg 93 DEUTSCH: SEITE 49 1105 AN Amsterdam FRANÇAIS: PAGE 73 The Netherlands Tel.: +31 20 3422100 Fax.: +31 20 6971006...
- Page 2 February 2005 / Mass Sine 5000 / EN...
-
Page 3: Table Of Contents
CONTENTS V1.1 February 2005 GENERAL INFORMATION ..............5 Use of this manual ...............5 Warranty specifications ..............5 Quality ..................5 Validity of this manual..............6 Liability ..................6 Identification label ...............6 Changes to the product ..............6 SAFETY GUIDELINES AND WARNINGS..........7 Warnings and symbols ..............7 Use for intended purpose ..............7 Organizational measures ..............7 Installation, maintenance and repair ..........8... - Page 4 February 2005 / Mass Sine 5000 / EN...
-
Page 5: General Information
This manual serves as a guideline for the safe and effective operation, maintenance and possible correction of minor malfunctions of the Mastervolt Mass Sine. This manual is valid for the following models: 1. Mass Sine 24/5000 230V AC-50Hz, art. No 24095100. -
Page 6: Validity Of This Manual
Therefore the identification label must not be removed! Changes to the product Modifications to the product may only be carried out by Mastervolt or after the written permission of Mastervolt. February 2005 / Mass Sine 5000 / EN... -
Page 7: Safety Guidelines And Warnings
Never use the product in situations where there is danger of gas or dust explosion! • Use other than as mentioned above is not considered to be consistent with the intended purpose. Mastervolt is not liable for any damage resulting from unintended use. Organizational measures The installer / user must always: •... -
Page 8: Installation, Maintenance And Repair
In addition such manufacturer must agree to indemnify Mastervolt from any claims arising from the use of Mastervolt parts in the life support equipment. February 2005 / Mass Sine 5000 / EN... -
Page 9: Operation

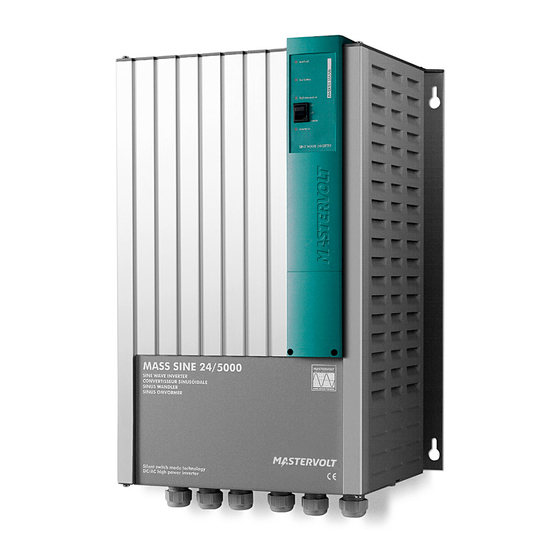

Mastervolt Amsterdam. The MASS SINE inverter is part of a series of advanced quality battery chargers and inverters supplied by Mastervolt all over the world. The MASS SINE inverter converts DC voltage to 230VAC~50/60Hz or 117VAC~60/50Hz. - Page 10 Meaning Short description Overload + Overload in wait When the inverter is in a state of on slow state overload for a long period of time the inverter will switch off and the overload + on indicators will flash slowly. This takes approx. 20 seconds after which the inverter automatically will restart.
-
Page 11: On The Remote Control
On the remote control If you use a remote control panel, put the on/off switch to “remote”, and put the on/off switch on the remote control panel to ON. The meaning of the illuminated LED’s is: • inverter on: inverter is switched on •... -
Page 12: Installation
INSTALLATION During installation and commissioning of the MASS inverter, the Safety Guidelines and Measures are applicable at all times. See chapter 2 of this manual. Environment Install the MASS inverter in a dry, well ventilated, dust free situation. Locate the inverter as close as possible to the DC distribution in order to keep the battery cables short. -
Page 13: Connecting
Connecting The Mastervolt Service Centres have all accessories available, e.g. battery terminals and supply cables in all sizes. Refer to the installation drawings during installation (chapter 8) WARNING! Before beginning to connect the wiring, make the AC and DC distribution voltage-free. -
Page 14: Dc Wiring
4.4.3 DC wiring Keep the cable length as short as possible, this will keep the system efficiency as high as possible. The recommended minimum size of the battery cables is 4 x 50mm/AWG 0 (see Figure 8-2) or 2 x 70mm/AWG 2/0 with two jumpers (included, see Figure 8-3). -
Page 15: Connecting The Remote Control Panel
Automatic switching between Mass inverter, the AC generator and / or shore power Please contact your Mastervolt supplier if you intend to use the inverter with a generator or shore power connection. Hand switched or simple relay switching systems could damage your inverter, because of the lack off time delay. -
Page 16: Trouble Shooting
If you cannot correct a problem with the aid of the malfunction table, contact your Mastervolt Service Centre or Mastervolt Amsterdam for an extended service list, telephone: INT+ 31-20-3422100. February 2005 / Mass Sine 5000 / EN... -
Page 17: Technical Data
TECHNICAL DATA 6.1 230V Inverters GENERAL Function apparatus supplying of AC equipment Models 24/5000 Manufacturer Mastervolt, Amsterdam INPUT Battery voltage nominal Switch off voltage low Switch on voltage low Switch off voltage high Switch on voltage high Maximal ripple Current (nominal load) -
Page 18: 117V Inverters
6.2 117V Inverters GENERAL Function apparatus supplying of AC equipment Models 24/4000 Manufacturer Mastervolt, Amsterdam INPUT Battery voltage nominal Switch off voltage low Switch on voltage low Switch off voltage high Switch on voltage high Maximal ripple Current (nominal load) -
Page 19: Dimensions
DIMENSIONS 10.5 405.5 Figure 7-1: Dimensions inverter. February 2005 / Mass Sine 5000 / EN... -
Page 20: Installation Drawings
8 INSTALLATION DRAWINGS 1 2 3 4 5 6 AC Output DC input DC Fuse L1 N BATTERY BATTERY Figure 8-1: Installation of the Mass SINE. February 2005 / Mass Sine 5000 / EN... - Page 21 – – Figure 8-2: Option 1 – 4 x 50mm² / AWG0 – Figure 8-3: Option 2 – 2 x 70mm² / AWG2/0 February 2005 / Mass Sine 5000 / EN...
- Page 22 February 2005 / Mass Sine 5000 / EN...
- Page 23 The Netherlands Herewith declares that: Product: 1. Mass Sine 24/5000 230V AC-50Hz, art. No 24095100. 2. Mass Sine 24/5000 230V AC-60Hz, art. No 24195100. 3. Mass Sine 24/4000 117V AC-60Hz, art. No 25024000. 4. Mass Sine 24/4000 117V AC-50Hz, art. No 25124000.
- Page 24 Snijdersbergweg 93, 1105 AN Amsterdam, The Netherlands Tel : + 31-20-3422100 Fax : + 31-20-6971006 -mail : info@mastervolt.com February 2005 / Mass Sine 5000 / EN...
