Westin 33-2030 Instructions

AUTOMOTIVE PRODUCTS, INC.

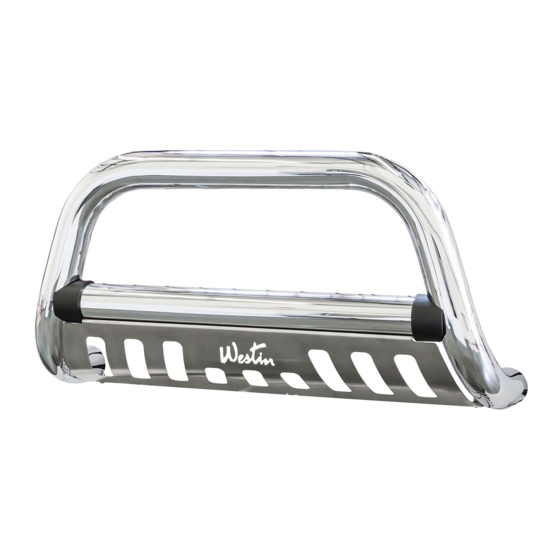

BULL BAR ASSEMBLY

ENSAMBLE DE PARRILLA
DELANTERA CON TIRÓN
BARRE PARE-CHOC SAFARI
33-2030
33-2035

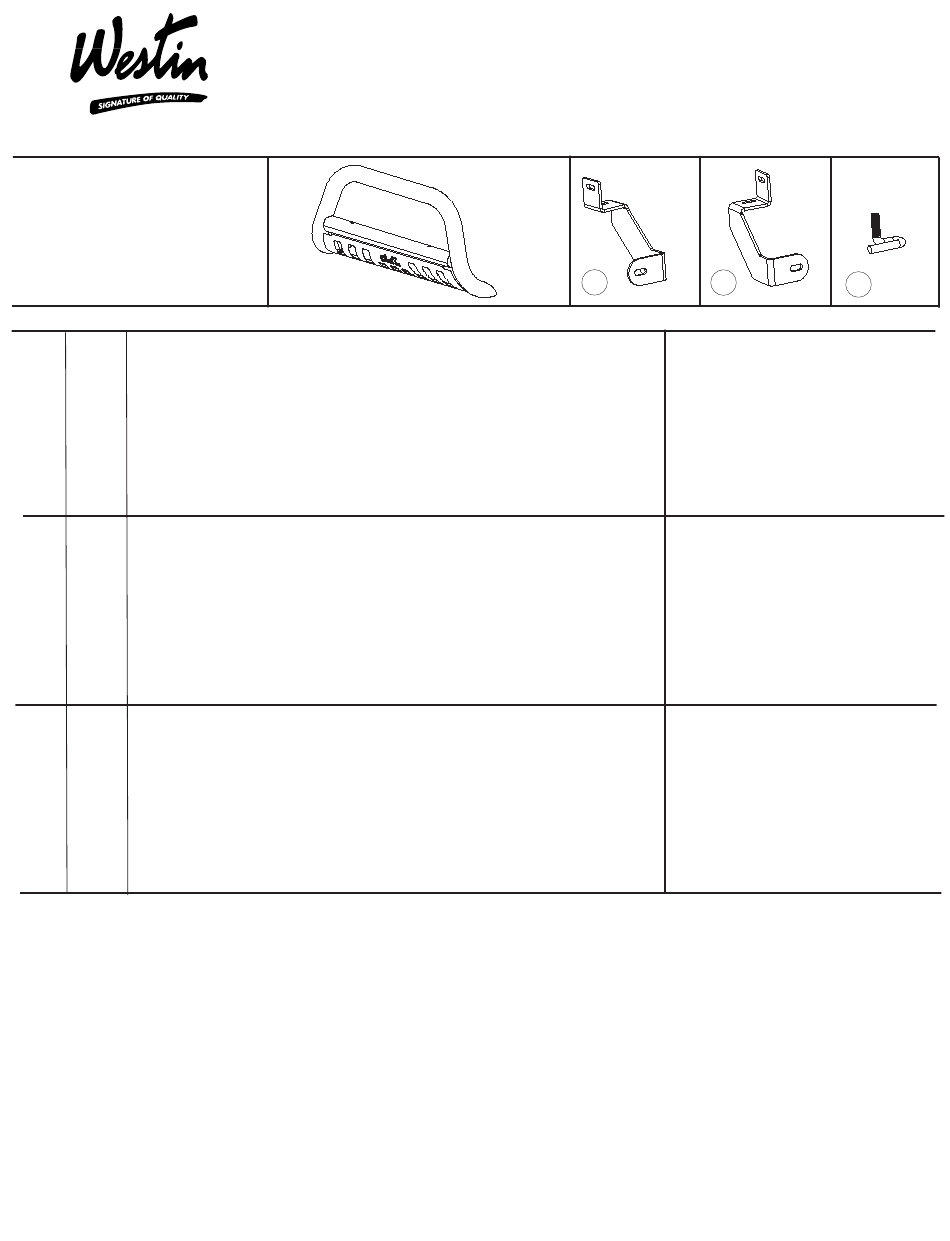

ITEM QTY
1 1 BULL BAR ASSEMBLY
2,3 2 BRACKET, PASSENGER (2) AND DRIVER (3)
4 2 PLASTIC PLUG
5 4 RUBBER BUMPER
6 4 J-BOLT
7 2 1/2-13 X 2.00" HEX HEAD BOLT
8 2 1/2" FLAT WASHER
9 2 1/2" LOCK WASHER
10 4 3/8" FLAT WASHER
11 4 3/8" LOCK WASHER
12 4 3/8-16 HEX NUT
13 4 PLASTIC WASHERS
1 1 ENSAMBLE DE PARRILLA DELANTERA CON TIRÓN
2,3 2 PIEZA DE SUJECIÓN, LADO DEL ACOMPAÑANTE
4 2 TAPONES DE PLÁSTICO
5 4 PARACHOQUES DE HULE
6 4 PERNOS EN "J"
7 2 PERNOS CON CABEZA HEXAGONAL DE
8 2 ARANDELA PLANA SAE DE 1/2"
9 2 ARANDELAS DE PRESIÓN DE
10 4 ARANDELA PLANA SAE DE 3/8"
11 4 ARANDELAS DE PRESIÓN DE 3/8"
12 4 TUERCAS HEXAGONALES DE 3/8-16
13 4 ARANDELA DE PLÁSTICO
1 1 BARRE PARE-CHOCS SAFARI
2,3 2 SUPPORT CÔTÉ PASSAGER (2) ET CÔTÉ CONDUCTEUR (3)
4 2 BOUCHON DE PLASTIQUE
5 4 PARE-CHOCS EN CAOUTCHOUC
6 4 BOULON EN J
7 2 BOULON A TETE HEXAGONALE
8 2 RONDELLE PLATE SAE 1/2 PO
9 2 RONDELLE A FREIN 1/2 PO
10 4 RONDELLE PLATE SAE 3/8 PO
11 4 RONDELLE A FREIN 3/8 PO
12 4 ÉCROU HEXAGONAL 3/8-16
13 4 RONDELLE DE PLASTIQUE
STEP 1.
Remove the contents from box and check for damage. Verify all parts are present. Read instructions
completely before beginning.
NOTE:
STEP 2.
It will be necessary to remove the front license plate and bracket. Remove license plate from bracket.
Using a 3/16" drill bit, drill out the two pop rivets that hold the bracket to the bumper. If local/state laws
requires a license plate, license plate relocation kit 32-0055 is available.
STEP 3.
Install brackets as shown in Figure 2.
trimming of the air dam is required.
STEP 4.
Attach Bull Bar to mount brackets using 1/2" fasteners. Level and adjust Bull Bar as desired and tighten all
fasteners. Recommended torque values are 26 FT.LBS. for 3/8" fasteners and 64 FT.LBS. for 1/2" fasteners.

LIGHT INSTALLATION:

and socket for correct size of nut supplied, insert through large clearance hole in bottom of cross tube. Thread
nut and washers on stud and tighten.
to get the nut started.
INSTRUCTIONS-INSTRUCCIONES-CONSIGNES
APPLICATION: 2006-UP FORD EXPLORER
APLICACIÓN: FORD EXPLORER, 2006 Y SUPERIOR
APPLICATION: FORD EXPLORER 2006 ET PLUS
CONTENTS - CONTENIDO
1/2"
1/2-13 X 2.00
NOTE:
Insert threaded stud on base of the light through hole in cross tube. Using a ratchet, extension
SEE FIGURE 1. NOTE:
2007-UP FORD EXPLORER SPORT TRAC
FORD EXPLORER SPORT TRAC, 2007 Y SUPERIOR
FORD EXPLORER SPORT TRAC 2007 ET PLUS
- CONTENU
(2) Y EL CONDUCTOR
1/2-13 X 2.00"
PO
Adjustment to the lower splash shield may be required. Minor
2 3
TOOLS - HERRAMIENTA
3/4'' SOCKET
9/16" SOCKET
9/16" WRENCH
FLAT TIP SCREWDRIVER
RATCHET
SOCKET EXTENSION
TORQUE WRENCH
DADO DE 3/4´´
(3) DADO DE 9/16 "
LLAVE DE TUERCAS DE 9/16"
DESTORNILLADOR DE PUNTA PLANA
MANERAL
EXTENSIÓN PARA DADO
LLAVE DE TORQUE
DOUILLE 3/4 PO
DOUILLE 9/16 PO
CLE 9/16 PO
TOURNEVIS A POINTE PLATE
CLIQUET
RALLONGE DE DOUILLE
CLE DE COUPLE
A short socket, not a deep well works best
WO:
75-0615 REVISION A 2/9/07
6
- OUTILS
