Accessories

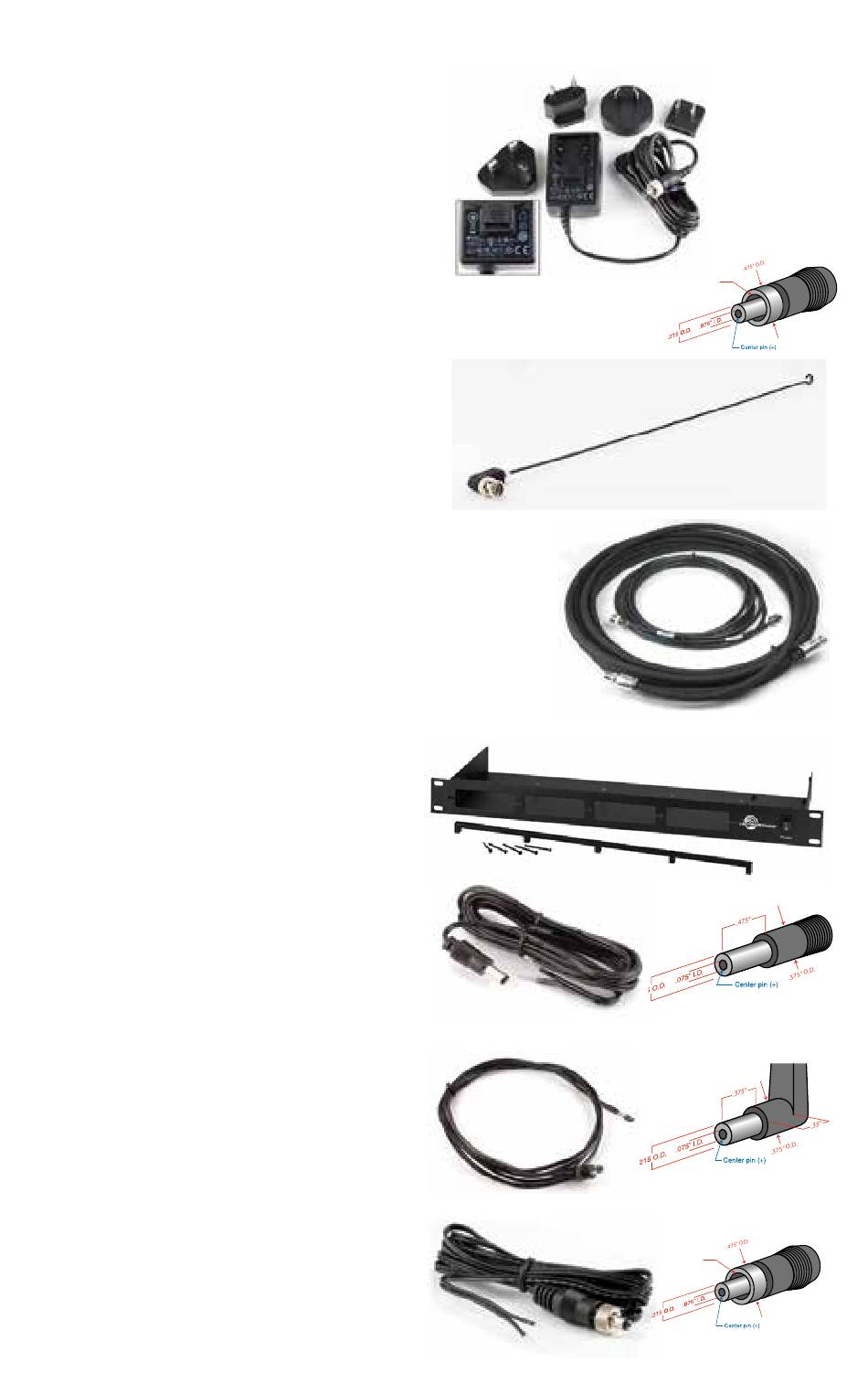

DCR12/A5U
AC power supply for IFBT4 transmit-
ters; 100-240 V, 50/60 Hz, 0.3 A input,
12 VDC regulated output; 7-foot cord
with LZR threaded locking plug and
interchangeable blades/posts for use in
Europe, UK, Australia and USA (sold
separately).
A170AC
VHF straight whip antenna; right angle
BNC connector
ARG15
A 15 foot antenna cable of standard
RG-58 coax cable with BNC connectors
at each end. Loss of 1 to 2 dB with 0.25"
diameter.
ARG25/ARG50/ARG100
An antenna cable of Belden 9913F low-
loss coax cable with BNC connectors
at each end. Double shielded, flexible,
50 Ohms, with a foamed polyethylene
dielectric. Lower loss (1.6 to 2.3 dB) with
somewhat less weight than standard
RG-8 with the same 0.400" diameter.
Available in 25, 50 and 100 foot lengths.
RMP195
4 channel rack mount for up to four
IFBT4 transmitters. Rocker switch in-
cluded to work as a master power switch
if desired.
21425
6 ft. long power cord; coaxial to stripped
& tinned leads. Coaxial plug: ID-.080";
OD-.218"; Depth- .5". Fits all compact
receiver models that use CH12 power
supply.
21472
6 ft. long power cord; coaxial to stripped
& tinned leads. Right angle coaxial plug:
ID-.075"; OD-.218"; Depth- .375". Fits all
compact receiver models that use CH12
power supply.
21586
DC16A Pigtail power cable, LZR stripped
& tinned.
www.lectrosonics.com
ARG15
ARG25
ARG50
ARG100
21425
21472
21586
DCR12/A5U
Locking collar with
5/16"-32 thread
A170AC
RMP195
Locking collar with
5/16"-32 thread
