Summary of Contents for TYROLIT Hydrostress FSD1274 Series

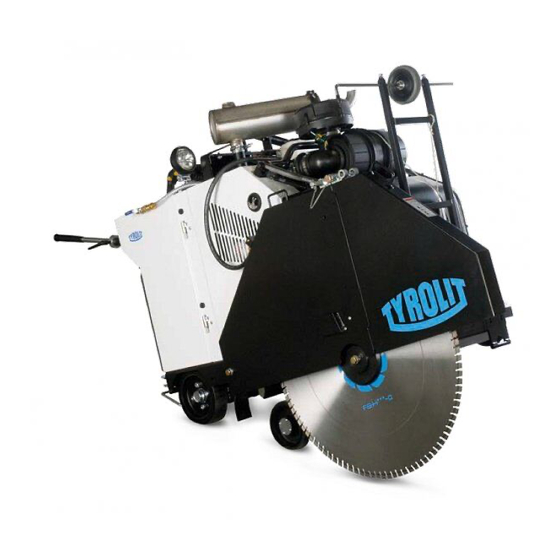

- Page 1 Operating Instructions Floor Saw FSD1274 FSD1274 3-speed gearbox Index 001 10989245 en / 05.12.1017...
- Page 2 Any repair work must be carried out by trained personnel only. Should you need more details concerning your TYROLIT Hydrostress unit in order to keep it in perfect condition, please contact our after-sales service for further information.
- Page 3 TYROLIT Hydrostress AG 1 Safety These instructions are just one part of the documentation which is supplied together with the floor saw. These instructions go together with the "Safety Manual / System Description for Floor Saws" to form a complete set of documentation.
- Page 4 TYROLIT Hydrostress AG 2 Design Components Grip 11 Cut indicator roller 21 Lifting chassis Control unit 12 Water valve 22 Bearing lifting chassis Water valve 13 Hydrostatic motors 23 Base plate Operating handle 14 Gear box saw blade drive 24 Travel drive...
- Page 5 TYROLIT Hydrostress AG Components 29 Cooling water expansion 37 Chassis / Model label 45 Wheel vessel 38 Water connection 46 Starter 30 Cooling water hose 39 Radiator cover 47 Saw blade flange 31 Tank filler cap 40 Track adjustment 48 Drive wheel...
- Page 6 TYROLIT Hydrostress AG 3 Function 3.1 Saw blade drive Saw blade drive (schematic) Mitre gear Intermediate drive Drive belt Drive shaft saw blade 3.2 Lift drive Lift drive (schematic) Hydraulic cylinder 3.3 Saw blade lowering speed Saw blade lowering speed...
- Page 7 TYROLIT Hydrostress AG 3.4 Travel drive Travel drive (schematic) Hydrostatic motors Hydraulic motors Valve block travel drive ON / Floor Saw FSD1274 / FSD1274 3-speed gearbox Page 7...
- Page 8 TYROLIT Hydrostress AG 4 Transport DANGER Inexpert transport may result in death or serious injury. ► Floor saws must only be transported with the main motor switched off. ► Only transport vehicles, lifting tools and load suspension devices with sufficient load- bearing capacity must be used.
- Page 9 TYROLIT Hydrostress AG 5 Initial start-up 5.1 Fitting battery ► Fit battery (for type see Technical Data). Floor Saw FSD1274 / FSD1274 3-speed gearbox Page 9...
- Page 10 TYROLIT Hydrostress AG 6 Assembly / Set-up 6.1 Mounting grip ► 6.2 Height adjustment handle ► Page 10 Floor Saw FSD1274 / FSD1274 3-speed gearbox...
- Page 11 TYROLIT Hydrostress AG 6.3 Mounting saw blade DANGER Parts that fly off (segments, concrete splinters, saw blade, etc.) may cause serious injury or even death. ► Floor saws must only be operated with a blade guard. ► When assembling the saw blade on the right-hand side use the anchoring screw with the left-hand thread.
- Page 12 TYROLIT Hydrostress AG C: To prevent the saw blade rotating while being tightened, carefully place the saw blade on the floor. 6.4 Mounting saw blade on the other side 6.4.1 Disassemble the blade guard ► Page 12 Floor Saw FSD1274 / FSD1274 3-speed gearbox...
- Page 13 TYROLIT Hydrostress AG 6.4.2 Disassemble the shaft cover 6.4.3 Assembling the blade guard and shaft cover on the other side Assembly of the blade guard and the shaft cover is performed in the opposite order to disassembly. 6.5 Connecting water line ►...
- Page 14 TYROLIT Hydrostress AG 7 Operation 7.1 Overview of operating elements Operating elements Ignition switch 11 Water ON / OFF indicator 21 Saw blade coupling switch Coolant temperature 12 Cut depth storage indicator 22 Cutting depth indicator display 13 Water ON / OFF switch...
- Page 15 TYROLIT Hydrostress AG 7.2 Check oil and cooling water levels ► Note the details from the motor manufacturer. 7.3 Checking the air filter The display in the window has the following significance: Display colour Significance Yellow Air filter in good order Air filter blocked ►...
- Page 16 TYROLIT Hydrostress AG 7.4 Checking the fuel level ► Check the tank display (1) and top up with diesel as necessary. 7.5 Positioning the floor saw 1. Slide floor saw into the working position. 2. Fit the cutting guides to the floor saw.
- Page 17 TYROLIT Hydrostress AG 7.7 Switch on motor Symbol Significance Coupling lever in coupled position Coupling lever in uncoupled position Operating handle (2) engaged in 0 position Coupling lever (1) is in the uncoupled position EMERGENCY STOP switch (5) has been released 1.
- Page 18 TYROLIT Hydrostress AG 7.8 Lowering / raising saw blade 7.8.1 Lowering example 1. Press the Lower button (1) until the saw blade touches the material to be cut. 2. Set the cutting depth indicator (2) in the 0 position. 3. Using the Lower key, lower the saw blade to the desired cutting depth.
- Page 19 TYROLIT Hydrostress AG 7.9 Adjusting the feed Symbol Significance Feed adjuster in the forwards direction of travel Feed adjuster in the backwards direction of travel Feed adjuster is in the neutral position Brake is released Using the feed adjuster (1). Set the direction of travel and speed.
- Page 20 TYROLIT Hydrostress AG 7.10 Correcting the tracking Correcting the tracking ► If the saw blade drifts, adjust the rear axle with the adjusting screw. Page 20 Floor Saw FSD1274 / FSD1274 3-speed gearbox...
- Page 21 TYROLIT Hydrostress AG 7.11 Gear selection procedure for 3-speed gearbox DANGER Failure to follow instructions can result in death or serious injury. The gear can only be changed if the motor is stationary. Never tamper with the gear selection mechanism with the motor running.
- Page 22 TYROLIT Hydrostress AG 8 Maintenance When? What? ► Check oil level. Daily ► Perform a visual check for damage. ► Check belt tension and adjust if necessary. Weekly ► Lubricate grease nipples. Every 50 hours of operation ► Arrange a major service by TYROLIT...
- Page 23 TYROLIT Hydrostress AG 9 Malfunctions Malfunction Possible cause Solution ► Release EMERGENCY STOP switch. EMERGENCY STOP switch has been Floor saw does not operate pressed. ► Reverse the floor saw. Saw blade jammed Saw blade is jammed in the cutting ►...
- Page 24 TYROLIT Hydrostress AG 10 Technical data 10.1 Dimensions Parameter Value Weight 987 kg Cutting depth (max.) 500 mm Blade uptake diameter 25.4 mm Max. saw blade diameter 1,200 mm Dimensions (transport dimensions with blade L: 1,615 mm guard folded up)
- Page 25 TYROLIT Hydrostress AG 10.5 Noise level and vibrations Parameter Value FSD1274 FSD1274 3- Gang Noise level at workplace (L 96,9 dB(A)* 91,3 dB(A)* Sound power level in accordance with 116,9 dB(A)* 111,3 dB(A)* ISO 3744 (L Vibrations DIN EN ISO 5349-2 <...
- Page 26 48" / 1,200 1,200 mm 1,050 4.75" 4“ 3VX355 8" / 203 mm The belt pulley should only be changed by an engineer from TYROLIT Hydrostress or a trained worker. 10.8 Cutting data FSD1274 3-speed gearbox Belt Flange pulley Belt pulley...
- Page 27 TYROLIT Hydrostress AG The gear may only be changed if the motor is stationary. Never tamper with the gear selection mechanism with the motor running. Floor Saw FSD1274 / FSD1274 3-speed gearbox Page 27...
- Page 28 TYROLIT Hydrostress AG EC declaration of conformity Description Floor Saw Type designation Floor Saw FSD1274 / FSD1274 3-Speed gearbox Year of construction 2010 Manufacturer TYROLIT Hydrostress AG We declare under our own liability that this product complies with the following directives and...
