ArmorPoint DeviceNet Adapters, Series A
(Cat. No. 1738-ADN12, -ADN18, -ADN18P, -ADNX)
The ArmorPoint™ family of DeviceNet™ adapters (Cat. no. 1738) ship
with the adapter and a terminating base to be used with the last I/O
module on the backplane. The sealed IP67 housing of these adapters
requires no enclosure. (Note that environmental requirements other
than IP67 may require an additional appropriate housing.) DeviceNet
connectors are sealed M12 (micro) or M18 (mini) styles. The

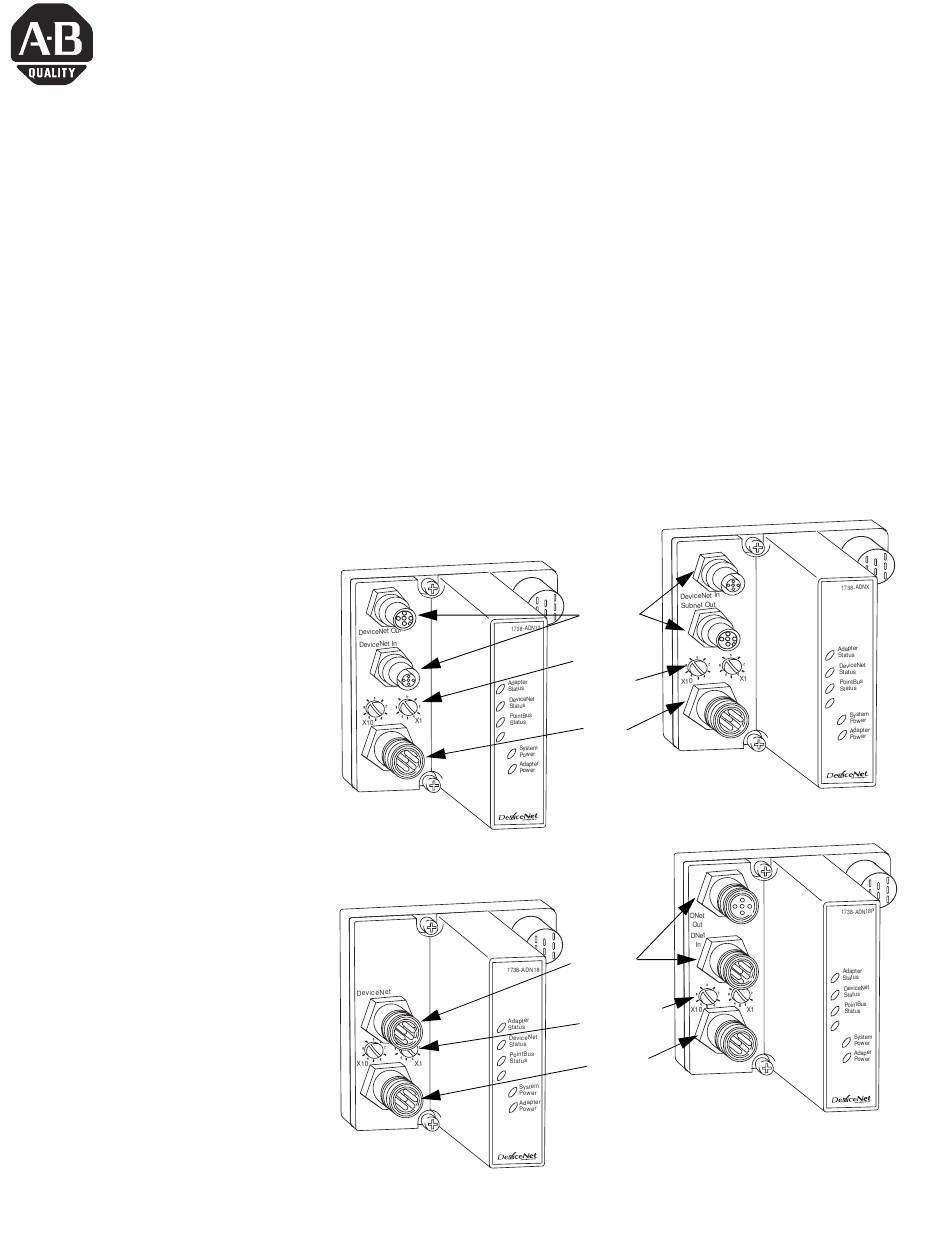

DeviceNet adapters are shown below.
1738-ADN12
PWR
1738-ADN18
PWR
43783
Installation Instructions
M12
Connector
Node Address
Switches
Auxiliary
Power
PWR
Connector
43785
Mini
Connector
Node Address
Switches
Auxiliary
PWR
Power
Connector
Publication 1738-IN014A-EN-E - June 2004
1738-ADNX
43786
1738-ADN18P
43784
