1.0 SYSTEM OVERVIEW

1.1 Description & Priciple of Operation
The UltraMaxO is an oxygen analyzer designed to check the oxygen concentration,
2
flow and outlet pressure of oxygen concentrators. The UltraMaxO
performance and reliability from its advanced design that includes the following
features and operational benefits:
• Accurate oxygen measurements.
• No in-field calibration required.
• Convenient ability to measure pressure in PSI or kPa.
• Durable, compact design.
• Large, easy-to-read, liquid crystal display (LCD).
• Shielded, reinforced sample gas inlet port.
• Long battery life with 2 AA batteries.
• Auto-off after 4 minutes.
• Low battery indication.
• Self-diagnostics.
• Easy to clean.

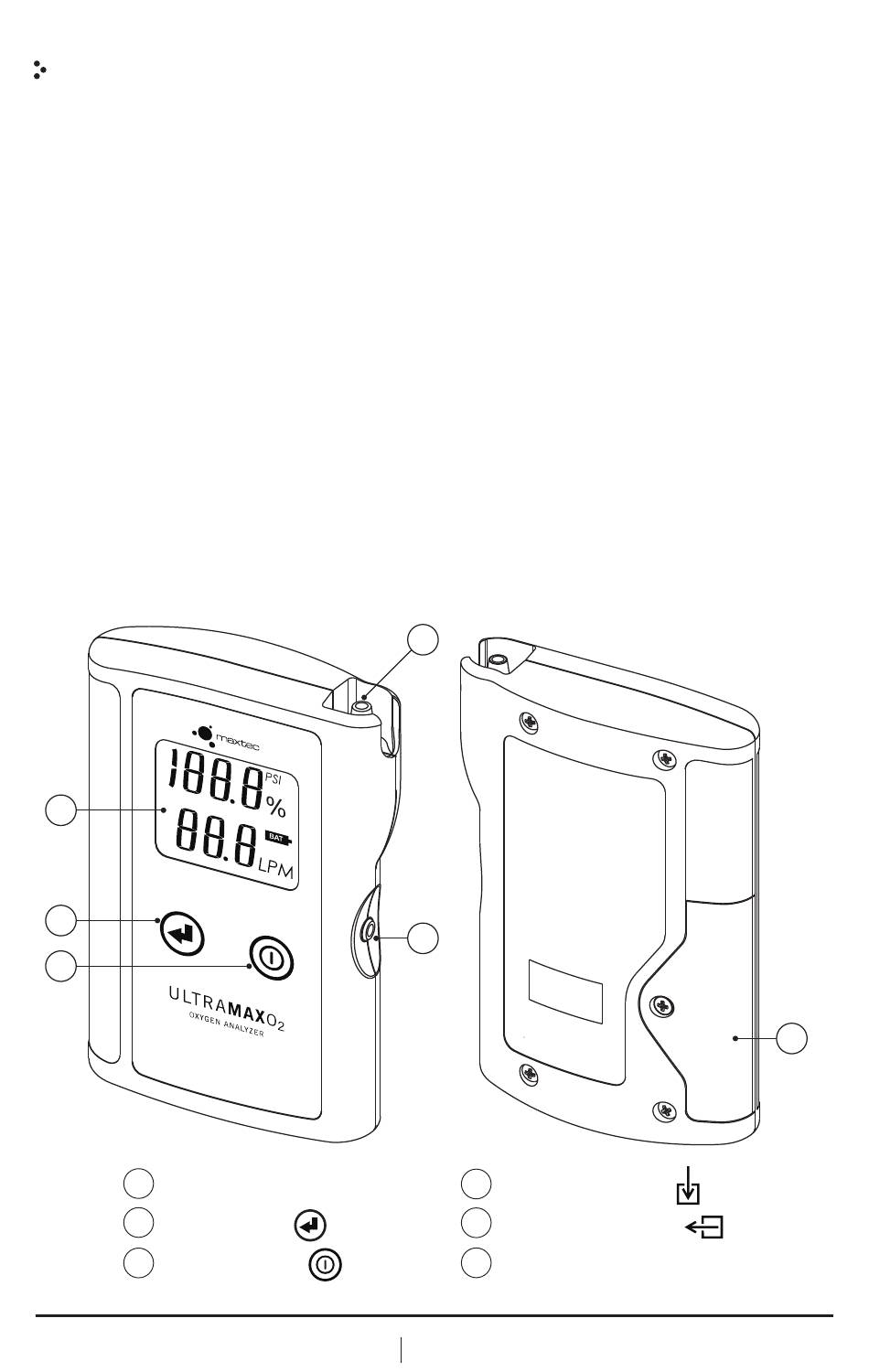

1.2 Component Identification

1
2
3
1 LCD Display
2 Mode Button
3 ON/OFF Button
866.4.Maxtec
4
5
4 Gas Sample Inlet
5 Gas Sample Outlet
6 Battery Door
