1.0 SYSTEM OVERVIEW

1.1 Base Unit Description

The MAXO + analyzer provides unparalleled performance and reliability due to
2
an advanced design that includes the following features and operational benefits.
» Extra-life oxygen sensor of approximately 1,500,000 O2 percent hours (2-year warranty).
» Durable, compact design that permits comfortable, hand-held operation and easy to clean.
» Operation using only two AA Alkaline batteries (2 x 1.5 Volts) for
approximately 5000 hours of performance with continuous use. For extra extended
long life, two AA Lithium batteries may be used.
» Oxygen-specific, galvanic sensor that achieves 90% of final value in
approximately 15 seconds at room temperature.
» Large, easy-to-read, 3 1/2-digit LCD display for readings in the 0-100% range.
» Simple operation and easy one-key calibration.
» Self-diagnostic check of analog and microprocessor circuitry.
» Low battery indication.
» Calibration reminder timer that alerts the operator, using a calibration icon
on the LCD display, to perform a unit calibration.

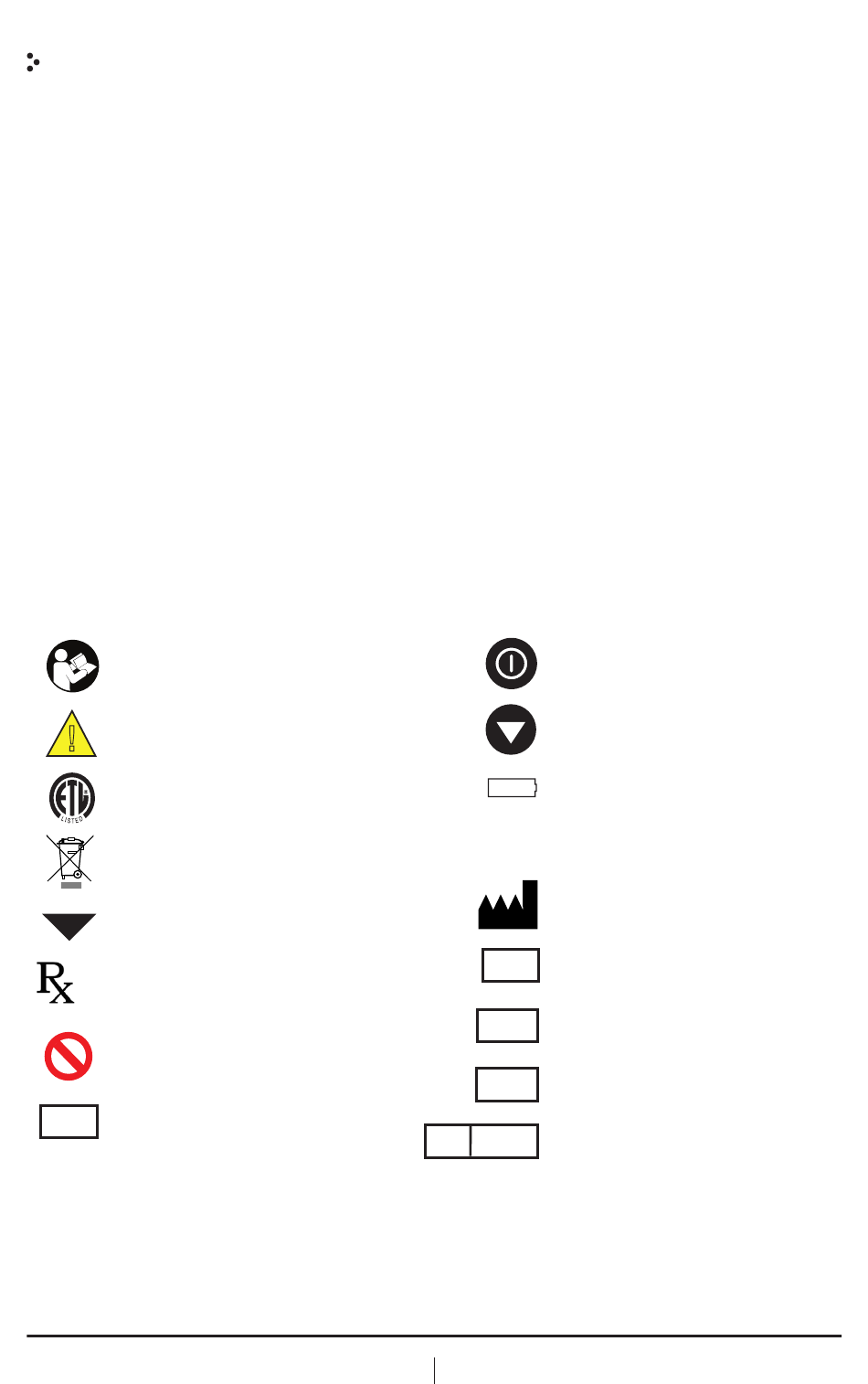

1.2 Symbol Guide

The following symbols and safety labels are found on the MAXO
Follow instructions for use.
!
Warning
Meets ETL standards
Do not throw away. Follow local
guidelines for disposal.
CAL
Calibration required
Federal Law (USA) restricts this device
only
to sale by or on the order of a physician
Do Not
REF
Catalog Number
866.4.Maxtec
On/off Button
Calibration Button
Low Battery
BAT
%
Percent
Manufacturer
SN
Serial Number
LOT
Lot code/Batch code
IPx1
Drip Proof
Authorized Representative
EC REP
in the European Community
www.maxtec.com
+:
