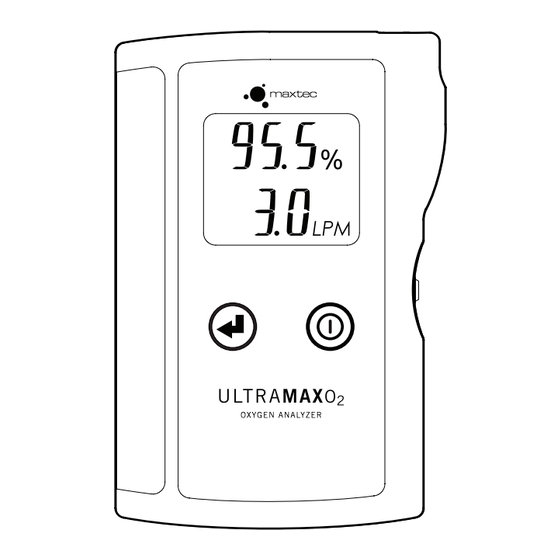

- Page 1 UltraMaxO 2 ™ O X Y G E N A N A L Y Z E R O P E R A T I N G M A N U A L & I N S T R U C T I O N S F O R U S E R 2 2 1 P 1 1 R221M11 Rev.
-
Page 3: Classifications
Under normal operating conditions, Maxtec warrants the UltraMaxO to be free from defects of workmanship or materials for a period of Three (3) years from the date of shipment from Maxtec, provided that the unit is properly operated and maintained in accordance with Maxtec’s operating instructions. -
Page 4: Principle Of Operation
This product will perform only as designed if operated in accordance with the manufacturer’s operating instructions. • Use only genuine Maxtec accessories. Failure to do so may seriously impair the performance of the UltraMaxO . Repair or alteration of the UltraMaxO... -
Page 5: Cautions
Avoid dropping the UltraMaxO to prevent damage which may adversely affect its performance. If damage to the device is suspected, perform the calibration verification procedure in Section 2.3 of this operating manual. • Avoid foreign matter entry into the UltraMaxO 866.4.Maxtec www.maxtecinc.com... -
Page 6: Table Of Contents
8.2 Optional Accessories..........7 866.4.Maxtec... -
Page 7: System Overview
Long battery life with 2 AA batteries. • Auto-off after 4 minutes. • Low battery indication. • Self-diagnostics. • Easy to clean. 1.2 Component Identification LCD Display Gas Sample Inlet Mode Button Gas Sample Outlet ON/OFF Button Battery Door 866.4.Maxtec www.maxtecinc.com... -
Page 8: Symbol Guide
LPM – Illuminated next to the flow measurement. (Not shown when in calibration verification mode). KPA – Indicates the pressure measurement is in units of kilopascals. PSI – Indicates the pressure measurement is in units of pounds per square inch. 866.4.Maxtec www.maxtecinc.com... -
Page 9: Operating Instructions
Press and hold the mode button. While holding the mode button, the gas measurement should read between 98.5 and 101.5% oxygen. If the gas measurement is not within this range, call Customer Service. Calibration verification mode is indicated by “CAL” and “VER” flashing on screen beneath the gas measurement . 866.4.Maxtec www.maxtecinc.com... -
Page 10: Factors Influencing Accurate Readings
At low flows they may output a low oxygen concentration, e.g. 85% to 91%, for reasons other than high nitrogen, possibly due to an increase in argon content. The UltraMaxO2 requires that the ratio of oxygen to argon remain constant in order to guarantee an accuracy of +/-1.5% oxygen. -
Page 11: Changing The Batteries
DO NOT soak or immerse the UltraMaxO in fluid. • DO NOT autoclave or expose the UltraMaxO to ethylene oxide sterilization. 6.1 Cleaning • Wipe down the exterior surfaces of the UltraMaxO with a moist cloth and mild hand or dish soap (pH 6-8). 866.4.Maxtec www.maxtecinc.com... -
Page 12: Maintenance
"Low Battery" icon displayed on LCD Dimensions: 3.16” x 5.10” x 1.04” [80.3mm x 129.5mm x 26.4mm] Weight: 0.4 lbs (181 g) *See section 3.4 (pg. 4) of this operating manual for information on the effects of low flow. 866.4.Maxtec www.maxtecinc.com... -
Page 13: Spare Parts And Accessories
Item: R211M11 Operating Manual and Instructions for Use* RP46P11-003 Gas Sample Tubing 8.2 Optional Accessories Part Number: Item: R221P15 Soft Cover * An electronic version of this Operating Manual and Instructions for Use are available on-line at www.maxtecinc.com. 866.4.Maxtec www.maxtecinc.com...
