5.5 Communication Connection
Sununo Plus 1K/1.5K/2K/2.5K/3K/3.6K/3K-M/4K-M/5K-M/6K-M is equipped with a
RS232 interface.
（1）RS232 can externally connect with Wi-Fi module.For more details, please refer to the
operating manual of Wi-Fi module.
（2）RS232 can externally connect with Wi-Fi module.For more details, please refer to the
operating manual of Ethernet module.
（3）RS232 can externally connect with Wi-Fi module.For more details, please refer to the
operating manual of GPRS module.

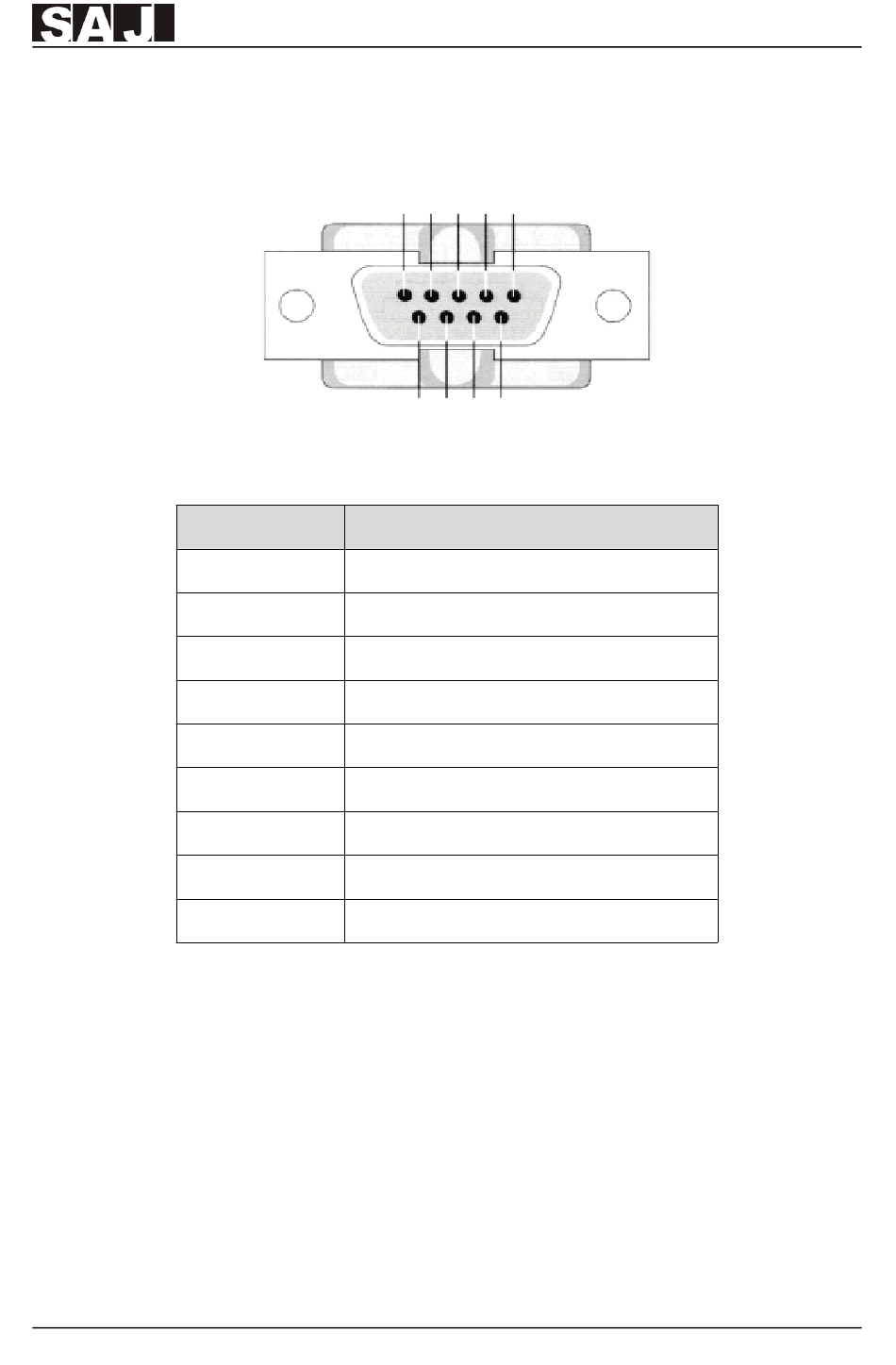

Figure 5.11 Pins of Nine Serial Port Cable
Pin No.
1
2
3
4
5
6
7
8
9
Table 5.5 Instruction of Nine Serial Port Pins
5
4
3
2
1
9
8
7
6
Name
DCD（Data Carrier Detect）
RxD（Received Data）
TxD（Transmitted Ready）
DTR（Data Terminal）
GND（Signal Ground）
DSR（Data Send Ready）
RTS (Request To Send)
CTS(Clear To Send)
RI(Ring Indicator)
