· Please place the connector separately after unpacking in order to avoid confusion for
connection of cables.
· Please connect the positive connector to the positive side of the solar panels, and connect the
cathode connector to the cathode side of the solar side. Be sure to connect them in right
position.
Connecting Procedures:
（1）Tighten the lock screws on positive and cathode connector.
（ 2 ） Use specified strip tool to strip the insulated enclosure of the positive and
cathode cables with appropriate length.
1.Positive Cable
（3）Feed the positive and cathode cables into corresponding lock screws.
（4） Put the metal positive and cathode terminals into positive cable and cathode
cable whose insulated enclosure has been stripped, and crimp them tightly with a
wire crimper. Make sure that the withdrawal force of the pressed cable is bigger
than 400N.
（ 5 ） Plug the pressed positive and cathode cables into relevant insulated
enclosure, a"click" should be heard or felt when the contact cable assembly is
NOTICE

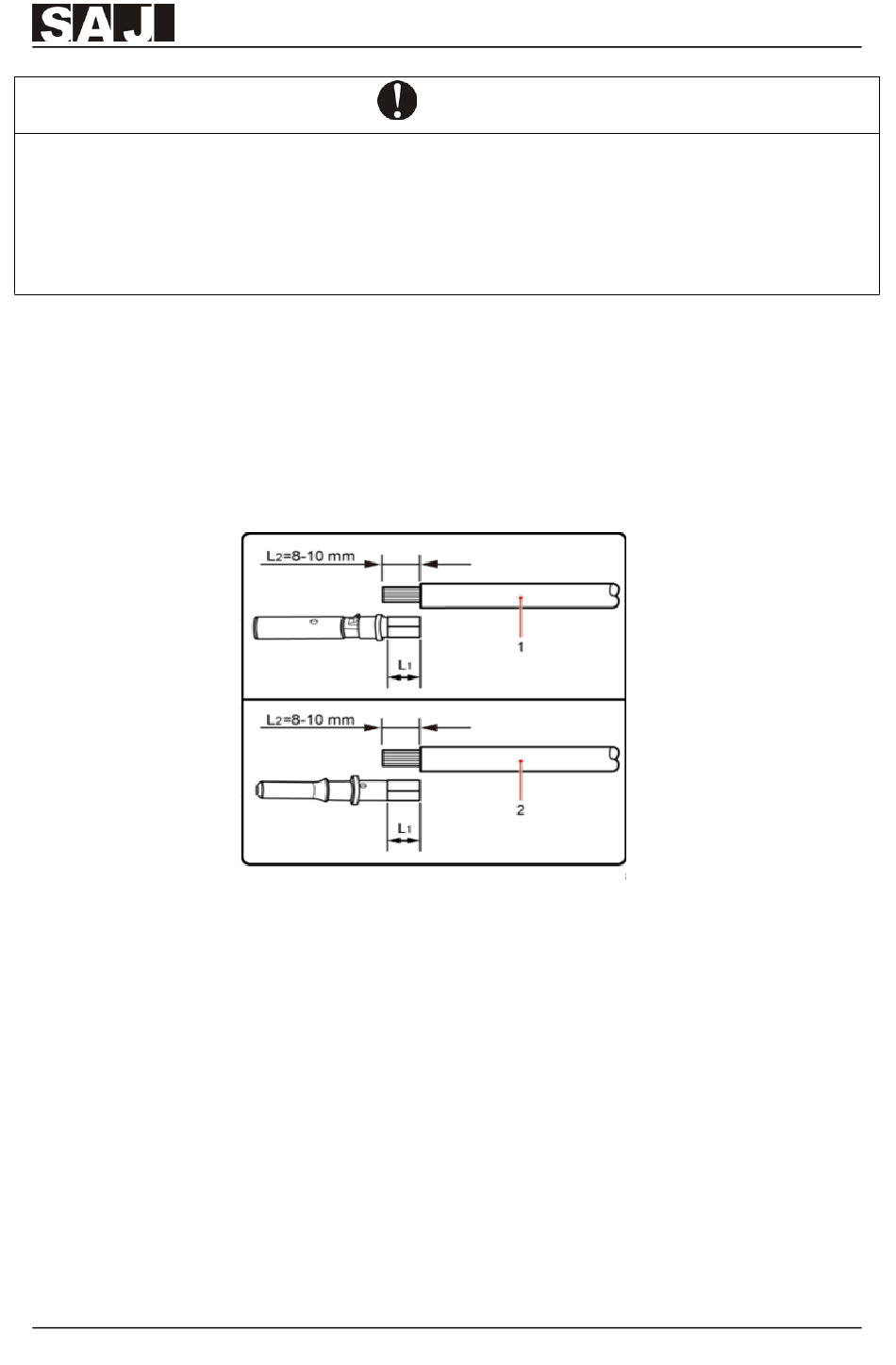

Figure 5.9 Connecting Cables
- 28 -
Sununo Plus Series
2. Cathode Cable
