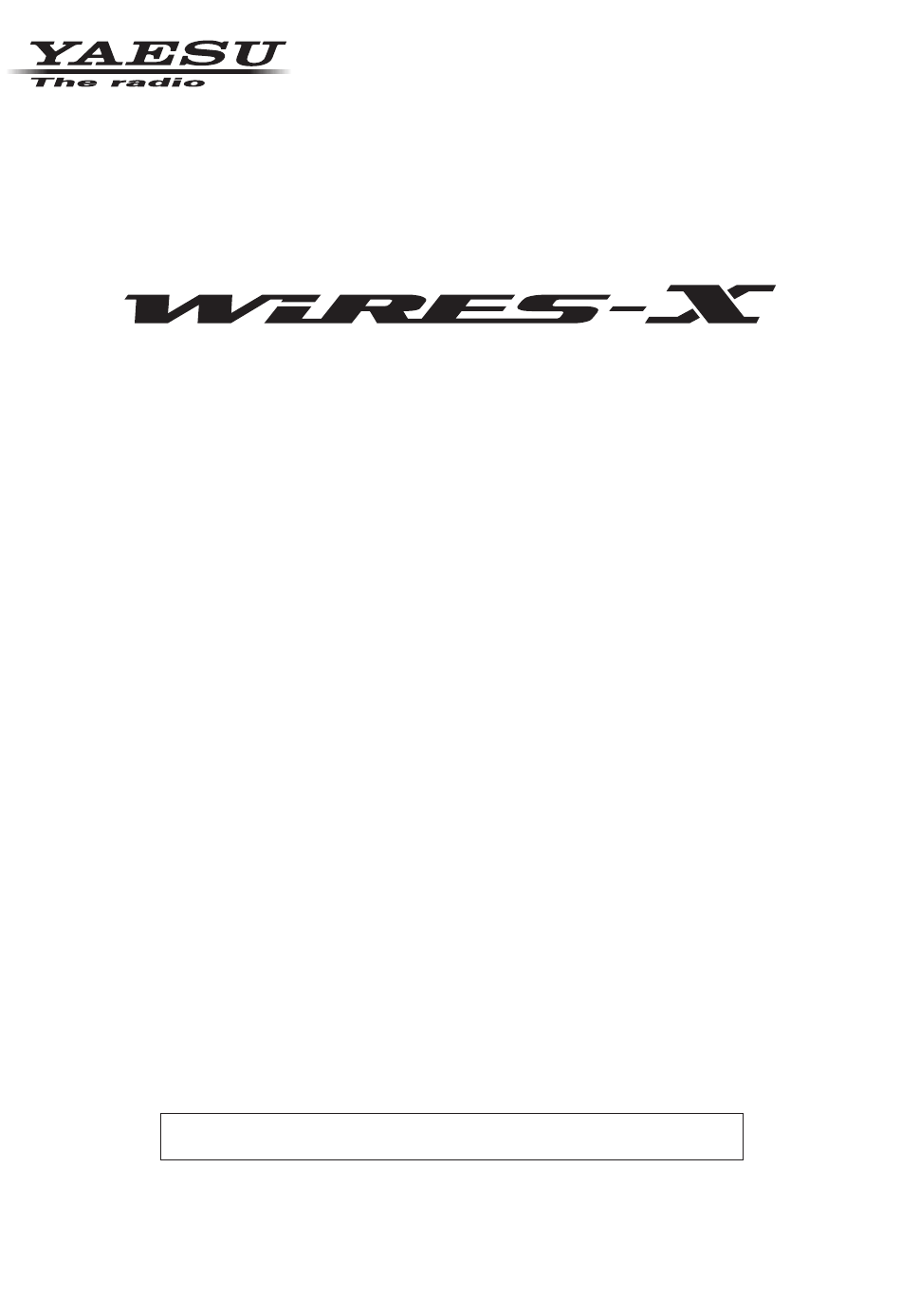

- Page 1 Wide-Coverage Internet Repeater Enhancement System WIRES-X Portable Digital Node Function Instruction Manual Please read this “Instruction Manual” carefully for appropriate procedure.
-
Page 2: Preparation Procedure
(The SCU-39 includes SCU-19, CT - 44, and two audio cables.) User registration (acquire an ID number) Access the WIRES-X web page and register with the “Radio ID” of the transceiver to be used for the Portable Digital Node station. Refer to page 6 for details. -
Page 3: Table Of Contents
Starting the WIRES-X software .......................... 26 Starting the transceiver in special mode ......................26 Connecting a node or a room by operating the WIRES-X software on the PC ..........26 Communicating with other station ........................27 Disconnecting from the node or room ........................ 27 Closing the WIRES-X software .......................... -
Page 4: Introduction
USB connected FT2D Node Station. The FT2D Node Station connects directly to the PC and internet, and commu- nicates with WIRES-X Nodes and Rooms. The FT2D Node Station relays the local C4FM stations and signals to the internet and transmits the internet Node and Room signals to the local stations. This mode allows the flexibility to operate the Portable Digital Node directly with a single USB connected FT2D transceiver, or to access WIRES-X Nodes and Rooms from one or several local C4FM transceivers. - Page 5 C4FM and Analog signals to the internet and transmits the internet Node and Room signals to the local stations. This Node mode allows the flexibility to operate the Portable Digital Node to access WIRES-X Nodes and Rooms from one or several local C4FM transceivers.
-
Page 6: System Requirements (Operating Environment)
Internet Connection • ADSL 8 Mbps or faster (No fixed or dynamic global IP address is required.) When the Internet line speed is low or unstable, the sound may be interrupted or the connection of the WIRES-X connection may become unstable. -
Page 7: Preparation
You will promptly receive an e-mail with an URL address to the website for registration. 4. Click the URL address of an e-mail to open the website. 5. When “WIRES-X Server End-User License Agreement” is displayed, check “I agree to the WIRES-X server license agreement”, then click [Agree and proceed]. -
Page 8: Install Latest Wires-X Software To The Pc
Install latest WIRES-X software to the PC • This is not necessary if the latest WIRES-X software (Ver.1.500 or higher) is already installed on the PC to be used. • The latest WIRES-X software must also be installed on the transceiver that is establishing the connected room or the directly connected node station. - Page 9 WIRES-X Setup Wizard” window will appear. 8. Click [Finish]. When WIRES-X software installation has been completed properly, the [Wires-X] icon will appear on the Windows desktop. 9. Click [Close] in the “WIRES-X installer” windows Installation of the WIRES-X software is complete.
-
Page 10: Install The Usb Driver For The Pc Connection Cable
For details on checking the firmware version of the transceiver other than the above, refer to the owner's manual of each transceiver. 2. If the firmware version of the transceiver is the latest firmware as indicated on YAESU website (http://www.yaesu. com/), update is not necessary. -
Page 11: Connect The Transceiver And The Pc
《When operating in Access Point》 For the WIRES-X Node mode connection, use the SCU-19 USB Connection Cable, the CT-44 adapter & two audio cables that are supplied in the SCU-39 Connection Kit (sold separately) as shown in the figure. - Page 12 《When operating in Direct Operation》 1. For the WIRES-X Direct mode connection, use the SCU-19 USB Connection Cable, the CT-44 adapter & one of the audio cables that are supplied in the SCU-39 Connection Kit (sold separately) as shown in the figure.
-
Page 13: Initial Setting (Setting Is Required Only Once At The Beginning)
WIRES-X software. Communication port setting When starting the WIRES-X software for the first time, the “COM port setting” window will appear. Set the communication port with the transceiver connected to the PC. 1. Click [▼] in the “Serial Port Selection” column and click the COM port (displayed as “Prolific USB-to-Serial Comm Port (COMX)”) connected to the transceiver. -
Page 14: Authenticate (Activate) The Wires-X Server
Authenticate (activate) the WIRES-X server If the WIRES-X server authentication (activation) has not been completed on the personal computer to be used, the “WIRES ID Activation” screen opens automatically. 1. Enter the Node ID and Room ID (both are 5-digit numbers). -
Page 15: Transceiver Settings (Access Point Only)
When DG-ID number is set to “00” and subcode is set from “01” to “26”, C4FM digital signals without the matching subcode will not be relayed. The C4FM digital transceiver accessing the WIRES-X DG-ID “AUTO” node station is automatically set to the same subcode and can communicate while accessing it. - Page 16 Power: Set the transmission power of the transceiver. Offset: For split operation, input the offset value of the frequency to be used for reception (uplink) in MHz for the “operating frequency” that the node station uses for transmission (downlink). Leave blank if you do not want split operation.
-
Page 17: Basic Operation
1. Double click the [Wires-X] icon on the desktop of the computer screen. The main screen of WIRES-X software is displayed. For details on the main screen, refer to “WIRES-X Software Main Screen” (page 28). Starting the transceiver in special mode 1. - Page 18 Function Key or Dial TX/BUSY LED turn OFF/ON V/M key (Press and hold) Squelch OFF MONI key (While MONI key is pressed) Adjusts the squelch level SQL key and DIAL knob Enters the Set mode* DISP key (Press and hold) Enters the BACKTRACK screen DISP key Registering to Memory Channel...
-
Page 19: Start Operation Of Portable Node
• If the “ X ” icon does not blink when the [X] key is pressed, communication between the transceiver connected to the PC and the WIRES-X software has not been established, so check the cable connection and USB driver installation. - Page 20 If the portable node is already connected to a node or a room on the Internet ③ When connected to the same node or room as the ID of the previous connection history The current connection ID is displayed in the lower part of the LCD. To communicate with this connection, proceed to “Communicating with the other station”...
-
Page 21: Connecting To A Node Or A Room On The Internet
（1） Connecting a node or a room by operating the WIRES-X software on the PC On the WIRES-X software main screen, you can easily connect to the desired room or node station. 1. Click the Digital Node or Digital Room to connect. - Page 22 2. Touch [ALL]. Displays the list of accessible nodes and rooms. • Connection destinations are displayed from the room list and then node list. • On the connection destination room columns, the number of activities (the number of nodes connected to each room) appears on the right side. 3.
- Page 23 • On the connection destination room columns, the number of activities (the number of nodes connected to each room) appears on the right side. Items may be listed in order according to the number of activities, or access history from [WIRES-X]→[2 SEARCH SETUP] in the setting mode.
- Page 24 3. Touch the node or room you want to connect to starts connection. • Once connection is successfully established, “Connected” will appear on the LCD. • If connection is unsuccessful, an error message appears and the screen returns to the list of nodes and rooms. ④...
-
Page 25: Communicating With Other Station
If you do not want to restart the software, click the WIRES-X icon on the right part of the Windows task bar (or from the hidden indicator list), then select “Quit” or “Auto Start” to remove the check mark. - Page 26 Registering the connected node or room in the category list 1. Touch the node or room you want to connect to. Displays the category list. 2. Touch ［ADD］ . 3. Touch the desired category. The name of the node or room you are currently connected to is added to the list of the registered node and room lists.
-
Page 27: Using The Portable Hri Mode
Connecting a node or a room by operating the WIRES-X software on the PC On the WIRES-X software main screen, may be easily connect to the desired room or node station. 1. Click the Digital Node or Digital Room to connect. -
Page 28: Communicating With Other Station
[A/B] key. Disconnecting from the node or room To disconnect a node or room on the Internet, from the “Connection” menu of WIRES-X software, click “Disconnect”. Closing the WIRES-X software 1. From the “File” menu, select “Exit”... -
Page 29: Wires-X Software Main Screen
Status bar Menu bar: Calls the WIRES-X software main functions. For details on each menu, refer to “Main Menu” (page 73) of the WIRES-X Connection Kit HRI-200 Instruction Manual. Group window: Displays active nodes and rooms arranging the list based on the setting. - Page 30 There are dedicated buttons for other functions. For other details of each display, refer to “Main Screen” (page 65) of the WIRES-X Connection Kit HRI-200 Instruction Manual. Room pop-up window When connecting to the room a window will pop up displaying the operational status of the room.
-
Page 31: Functions To Use As Necessary
Node ID display area: Lists the IDs of nodes connecting to the room. [Refresh] button: Click to update the active ID list window on the main screen. [Close] button: Click to close the room pop-up window. Even after closing the room pop-up window, the room pop-up window can be displayed again by clicking “Connect ID window”... - Page 32 4. Click the [Recording] tab in the WINDOWS “Sound” window. 5. Click [Microphone], then click the [Properties] button. The microphone properties will open. 6. Click the [Levels] tab. 7. While transmitting “1” of DTMF on the C4FM digital transceiver set to the same frequency and DG-ID number as the Portable Digital Node station, move the [Slider] to adjust so that the peak does not over the dotted line.
-
Page 33: Adjusting Audio Level In The Direct Operation (Portable Hri Mode)
DG-ID number of the Portable Digital Node station. 4. Adjust the [WIRES-X slider] of the Volume Mixer so that it will be distortion free received sound. • I f t h e s p e a k e r o u t p u t i s m u t e d , c l i c k t h e i c o n “... - Page 34 2. Click the [Start] in the “Graph select” area. Waveform monitor is enabled. 3. Click the [Sound Property]. The WINDOWS “Sound” window opens. 4. Click the [Recording] tab in the WINDOWS “Sound" window. 5. Click [Microphone], then click the [Properties] button. The microphone properties will open.
- Page 35 6. Click the [Levels] tab. I f t h e m i c r o p h o n e i n p u t i s m u t e d , c l i c k t h e i c o n “ ”...
- Page 36 2. Click the [Start] in the “Test Tone” area. A test tone is output. 3. Adjust the volume level of “WIRES-X” on the “Volume Mixer” screen so that the test sound that you hear from the PC 's speaker will be easy to hear.
-
Page 37: Ft2D Direct Operation Dedicated Function
6. Click the [Levels] tab on the “Speakers Properties” screen. 7. Adjust the volume level of “microphone” so that the volume of the other station operating in digital mode will be easy to hear. 8. Click the “×” button at the top right of the “Volume Mixer” window to close. -
Page 38: Bookmarking Frequently Connected Nodes Or Rooms
