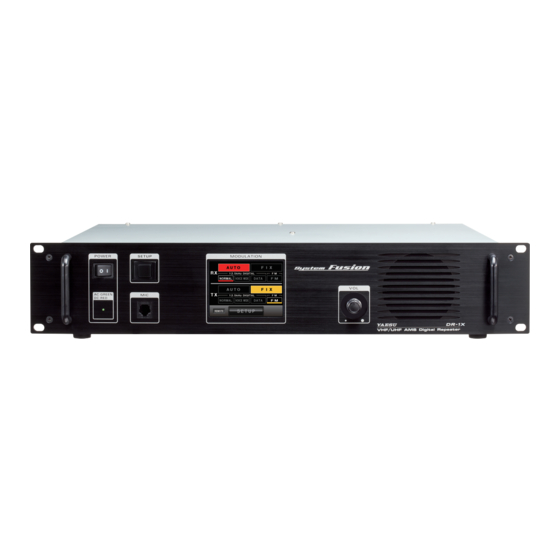

Yaesu DR-1X Installation Instructions Manual

Hide thumbs Also See for DR-1X:

Advertisement

Quick Links

Download this manual
Installation Instructions for the DR-1X/XE
RX-UNIT (V1.00t) and DSP firmware (V4.11)
Two versions of the update firmware are available. Before in-
stalling the new firmware, please check the firmware version of
the DR-1X/XE referring to Page 2.
r V1.00m replaces V1.00b and any versions other than
V1.00f which is for Wide-FM operation
r V1.00t replaces V1.00f for Selectable Wide/Narrow-FM
operation
This firmware update contains the following additional features.
If you are not interested in these features, you may skip this
firmware update.
m Adjustable Squelch Hysteresis
m Adjustable Squelch Tail
m CWID/Voice announcements with stripped PL Tones
* If the DR-1X/XE Repeater has the firmware V.1.10D, all these
features and other updates have been already installed, and
you do not need to install this firmware.
DR-1X/XE
Attention !
YAESU MUSEN CO., LTD.

Advertisement

loading

Related Manuals for Yaesu DR-1X

Summary of Contents for Yaesu DR-1X

  • Page 1 Adjustable Squelch Hysteresis m Adjustable Squelch Tail m CWID/Voice announcements with stripped PL Tones * If the DR-1X/XE Repeater has the firmware V.1.10D, all these features and other updates have been already installed, and you do not need to install this firmware.
  • Page 2 2. Touch [SETUP] on the DR-1X/XE LCD screen. The firmware version will be displayed at the top of the screen. D O W N 3. After confirming the firmware version, turn the DR-1X/XE power OFF.       Tx PW R...

  • Page 3: Important Notes

    Important Notes • All responsibility for the use of this software lies with the customer. YAESU MUSEN CO., LTD cannot be held liable in any way for damages or losses, which may be incurred by the customer as a result of using this software.

  • Page 4: Using The Programmer

    Before attempting to update the firmware, use the SCU-20 PC Connection Cable and install the driver software. Then go to the website (http://www.yaesu.com/) to download and install the SCU-20 driver. When the programmer is opened on the computer, press the [Update] button to display the preparation procedure screen, which explains the firmware installation process.
  • Page 5 4. Select the COM Port number assigned when you installed the SCU-20, and press “Update”. 5. After the installation completes, turn the DR-1X/XE power OFF, and then trough the hole at the forward left of the RX-UNIT case, set the RX-UNIT firmware writing switch inside to the original position (forward).
  • Page 6 Installation of the DSP firmware Note: Install the MAIN firmware before attempting to Install the DSP firmware. 1. Connect the SCU-20 PC connection cable to the ACC jack on the DR-1X rear panel. DC 12 V - 15 V (EU)
  • Page 7 The following functions have been added to the DR-1X/XE repeater. SQL HYSTERESIS Hysteresis is the difference between the signal level that will open the receiver squelch, and the signal level at which the squelch again closes. Increasing the hysteresis will suppress repeated opening and closing of the squelch.
  • Page 8 SQL TAIL TIME Enables setting the time duration of the downlink transmit after the uplink signal ceases. 1. Touch [SETUP] in the operation mode screen The setup mode screen will appear. REMOTE 2. Touch [F] in the setup mode screen S E T U P V e r .
  • Page 9 “CW wo TONE” or “VC wo TONE” is selected. 4. When the DR-1X/XE is active and the ID timer expires, the ID is sent with tone when “CW wo TONE” is selected. The ID and ongoing audio are mixed.
  • Page 10 Copyright 2016 YAESU MUSEN CO., LTD. All rights reserved. No portion of this manual may be reproduced without the permission of YAESU MUSEN CO., LTD. 1601-A0...
