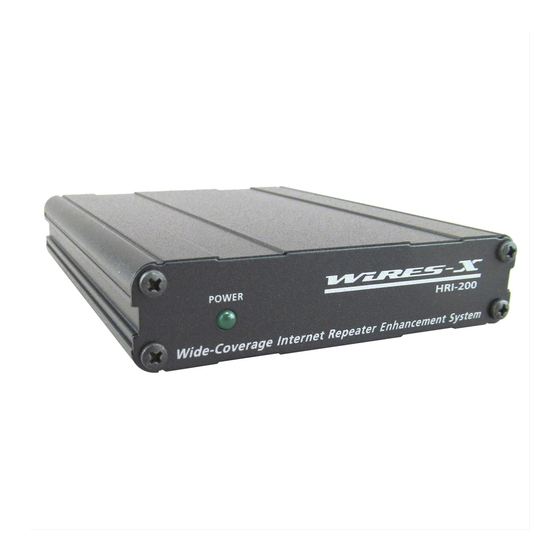

HRI-200
Reference Manual
for DR-1X/XE
This Reference Manual is for the DR-1X/XE
with MAIN firmware V1.10D
YAESU MUSEN CO., LTD.

Advertisement

loading
Need help?

Need help?

Do you have a question about the HRI-200 and is the answer not in the manual?

Questions and answers

Related Manuals for Yaesu HRI-200

Summary of Contents for Yaesu HRI-200

  • Page 1 HRI-200 Reference Manual for DR-1X/XE This Reference Manual is for the DR-1X/XE with MAIN firmware V1.10D YAESU MUSEN CO., LTD.
  • Page 2 While pressing and holding the [ SETUP ] button, press the [ POWER ] switch. POWER SETUP While the “YAESU” logo is being displayed, release the [ SETUP ] button. “HRI+REPEATER MODE” will appear on the display. Touch [ OK? ] HRI mode will activate.

  • Page 3: Connecting Devices

    Connecting Devices Connecting HRI-200 to a DR-1X/XE TX Antenna RX Antenna DC 12 V - 15 V (EU) 10 pin plug Mini-DIN digital cable (supplied with HRI-200) 10 pin plug AC 100 V - 240 V (USA, EXP, AUS, CHN)

  • Page 4: Repeater Setting

    • If connecting an HRI-200 control mode repeater, switch on the DR-1X/XE unit while simultaneously pressing the mechanical [ SETUP ] button on the front panel. When the “YAESU” logo is displayed on the LCD touch screen, release the [ SETUP ] button, the LCD will change to “HRI-REPEATER MODE”. Then press the [ OK ] button.
  • Page 5 WIRES-X Node cannot operate. Transceiver / DST / F/W version Displays the data information of the digital transceiver in connection with the HRI-200. Modulation Displays the Voice CH wave format selected for repeater operation.(RX CH and TX CH) •...
  • Page 6 Reverse Enables the transmit frequency offset. • Reverse (when checked): The uplink (RX CH) input frequency information equals the downlink (TX CH) output frequency minus the offset frequency. (Default - Offset) • Normal (not checked): The uplink (RX CH) input frequency information equals the downlink (TX CH) output frequency plus the offset frequency.
  • Page 7 Repeater When connecting the HRI-200 and the DR-1X Repeater, the Repeater settings may be entered with a PC and the WIRES-X software. ID SET Set the ID (Repeater Callsign) information (max 10byte). Note Please enter the same callsign as the WiRES-X registration.
  • Page 8 automatic device, to comply with the FCC rule Part 97: Sec.97.119(b)(1)Station identification. Caution2 (INTERVAL) When operating in the USA the ID setting time should be ten minutes or less to comply with the FCC rule Part 97: Sec.97.119(a)Station identification. [TX INHIBIT] Set transmit inhibit.
  • Page 9 The search channel operation requires an HRI-200/ C4FM Digital control mode capable transceiver (FTM- 400D, FTM-100D etc) connected to Radio 2 terminal of the HRI-200. Transceiver / DST / F/W version The firmware information of the digital transceiver connecting to HRI-200 for Preset CH operation is displayed. Note When the connected transceiver firmware does not support WiRES-X, the version is not displayed.
  • Page 10 Modulation Displays the Preset search CH signal format. Frequency (Preset Search CH) Enter a unique WIRES-X Preset Search operating frequency in MHz. In practice, consult with other WIRES-X stations to select a suitable frequency that will effectively avoid interference. Narrow deviation Select if using Narrow deviation operation for Preset CH transceiver.
  • Page 11 Copyright 2016 YAESU MUSEN CO., LTD. All rights reserved. No portion of this manual may be reproduced without the permission of YAESU MUSEN CO., LTD. 1601-B0...
