Symmetrical Horn Gen2 SH-CC

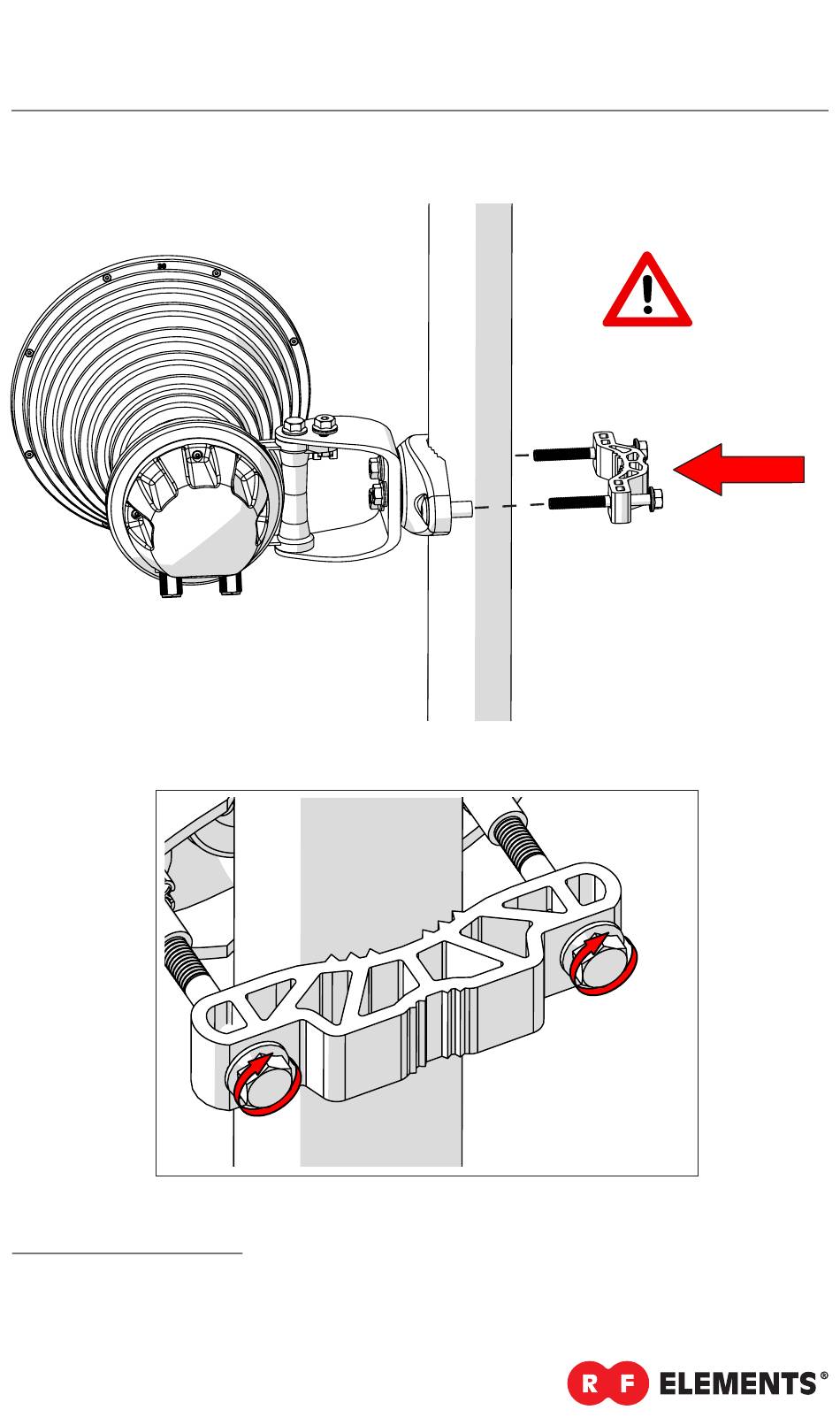

Step 2
Pole Installation
USE ANTI-SEIZE
THREAD LUBRICANT
Model HG3-CC-S30 shown. Installation instructions are identical for other Symmetrical Horn
models. Antenna dimensions may differ.
www.rfelements.com
