- Page 1 UltraDish ™ DIRECTIONAL PARABOLIC DISH ANTENNA WITH TWISTPORT™ CONNECTOR ULD-TP-400 ULD-TP-550...

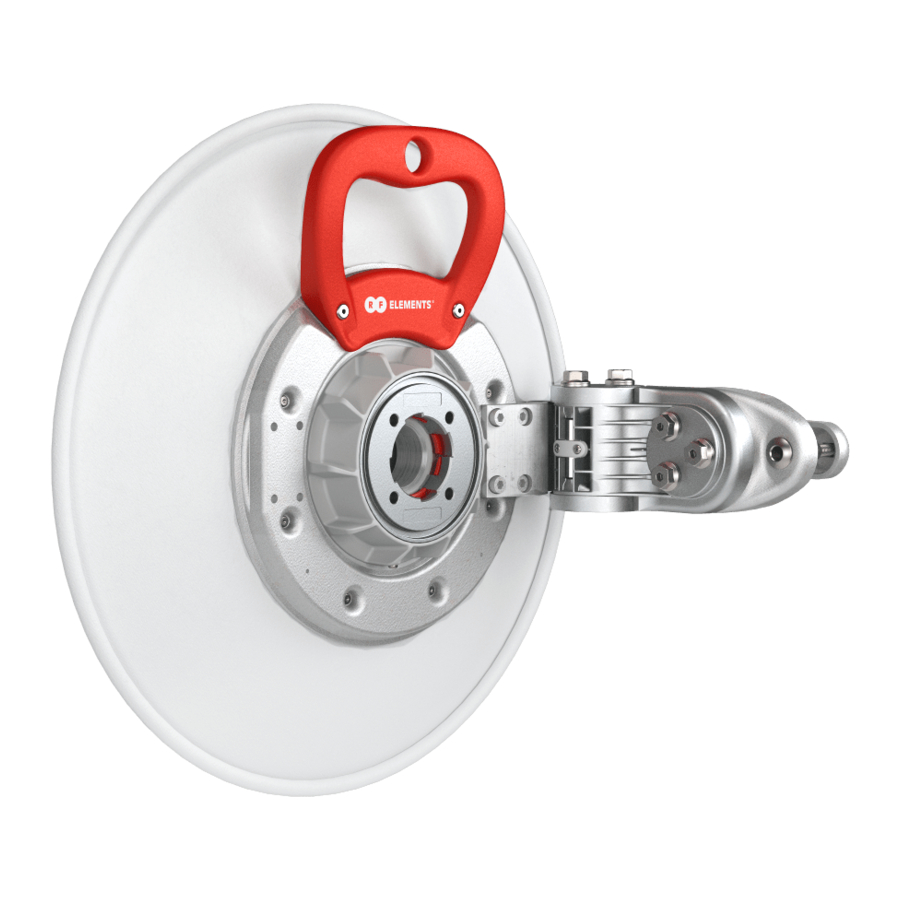

- Page 2 UltraDish™ TP Overview Compatible Product ID Dimensions Weight* Gain Wireless Platforms any TwistPort™ Adaptor UltraDish™ TP 445 x 409 x 296 2.7 kg ULD-TP-400 24.5 dBi 6 lbs any SIMPER™ Radio any TwistPort™ Adaptor UltraDish™ TP 575 x 575 x 359 3.7 kg ULD-TP-550 27.5 dBi...
- Page 3 UltraDish™ TP Package Contents Number Description Quantity UltraDish TP Body UltraDish TP Main Bracket 2,9 x 16mm lock Screw M8 x 42,5mm Screw M8 x 73,5mm Screw UltraDish TP Bracket UltraDish TP Subreflector www.rfelements.com...
-
Page 4: Pre-Installation
UltraDish™ TP Pre - Installation The antenna is pre-assambled for installation on the left side of the pole. If you need to swap to use the right side of the pole, see page 12. Model ULD-TP-400 shown. Installation instructions are identical for ULD-TP-550 model. Antenna dimensions may differ. - Page 5 UltraDish™ TP Installation Guide Model ULD-TP-400 shown. Installation instructions are identical for ULD-TP-550 model. Antenna dimensions may differ. www.rfelements.com...
-
Page 6: Pole Installation
UltraDish™ TP Pole Installation Model ULD-TP-400 shown. Installation instructions are identical for ULD-TP-550 model. Antenna dimensions may differ. www.rfelements.com... - Page 7 UltraDish™ TP Installation Guide Model ULD-TP-400 shown. Installation instructions are identical for ULD-TP-550 model. Antenna dimensions may differ. www.rfelements.com...
- Page 8 UltraDish™ TP Installation Guide Model ULD-TP-400 shown. Installation instructions are identical for ULD-TP-550 model. Antenna dimensions may differ. www.rfelements.com...
- Page 9 UltraDish™ TP Installation Guide Model ULD-TP-400 shown. Installation instructions are identical for ULD-TP-550 model. Antenna dimensions may differ. www.rfelements.com...
- Page 10 UltraDish™ TP Installation Guide Optional: Install the 2.9 x 16mm locking screw. Tighten the locking screw to secure the TwisPort lock mechanism. Model ULD-TP-400 shown. Installation instructions are identical for ULD-TP-550 model. Antenna dimensions may differ. TwistPort™ Adaptor or SIMPER™ Radio sold separately. www.rfelements.com...
- Page 11 UltraDish™ TP Installation Guide Optional: If the locking screw was used, unscrew it by about 10 mm before unlocking the TwisPort mechanism. Model ULD-TP-400 shown. Installation instructions are identical for ULD-TP-550 model. Antenna dimensions may differ. TwistPort™ Adaptor or SIMPER™ Radio sold separately. www.rfelements.com...
- Page 12 UltraDish™ TP Pre - Installation Optional: Right side of the pole mounting. Model ULD-TP-400 shown. Installation instructions are identical for ULD-TP-550 model. Antenna dimensions may differ. www.rfelements.com...
- Page 13 UltraDish™ TP Pre - Installation Optional: Right side of the pole mounting. Model ULD-TP-400 shown. Installation instructions are identical for ULD-TP-550 model. Antenna dimensions may differ. www.rfelements.com...
- Page 14 UltraDish™ TP Pre - Installation Optional: Right side of the pole mounting, continue on page 6. Model ULD-TP-400 shown. Installation instructions are identical for ULD-TP-550 model. Antenna dimensions may differ. www.rfelements.com...
-
Page 16: Compatible Devices
RF elements® any TwistPort™ Adaptor any SIMPER™ Radio with TwistPort™ connector RF elements®, TwistPort™, SIMPER™ and UltraDish™ are trademarks of RF elements s.r.o., Humenne, Slovakia. All rights of trademark owners reserved. RF elements s.r.o. Phone: +421 2 3260 3711 info@rfelements.com www.rfelements.com...
