Symmetrical Horn Gen2 SH-CC

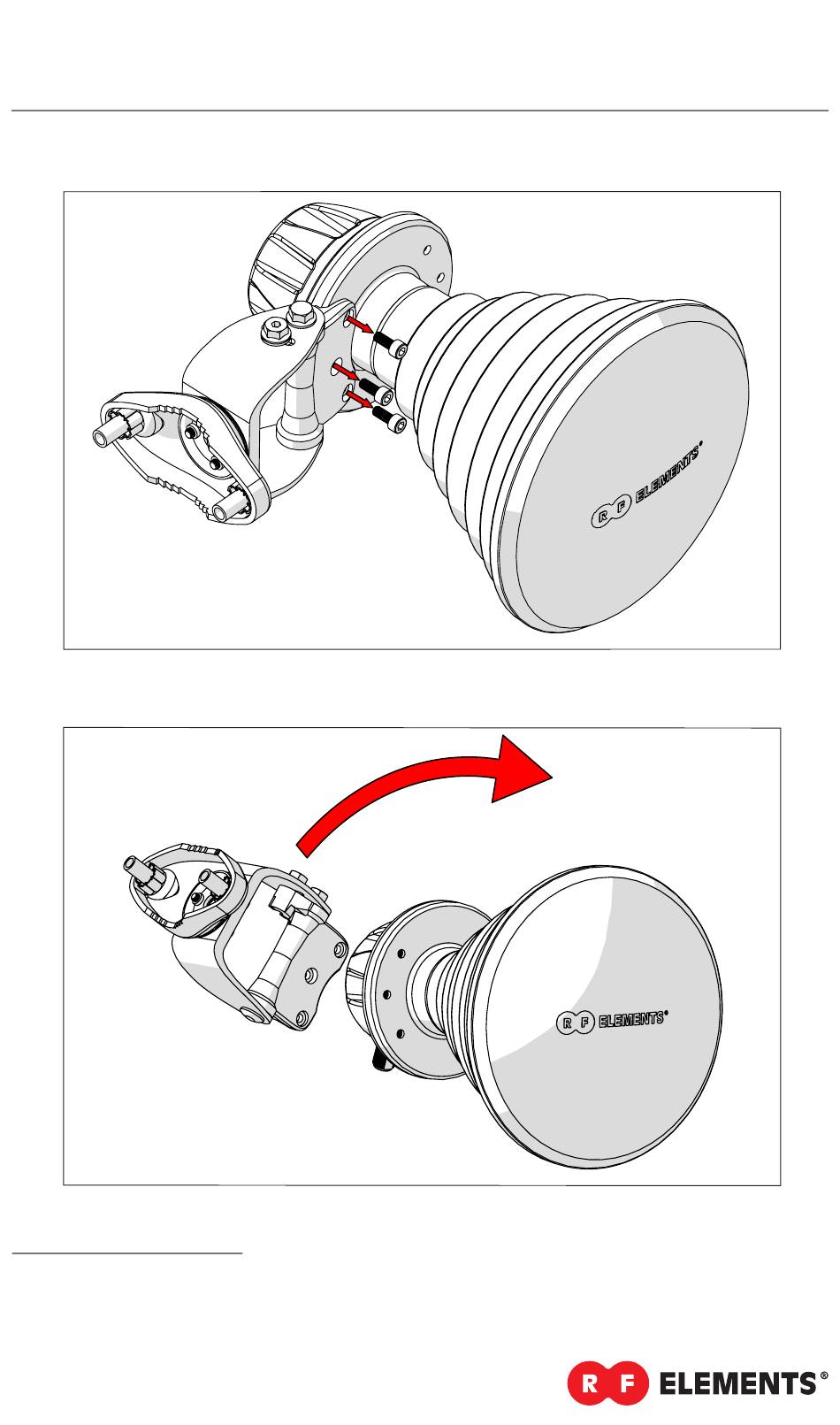

Step 5
Pre - Installation
Optional:
Right side of the pole mounting.
Model HG3-CC-S30 shown. Installation instructions are identical for other Symmetrical Horn
models. Antenna dimensions may differ.
www.rfelements.com
